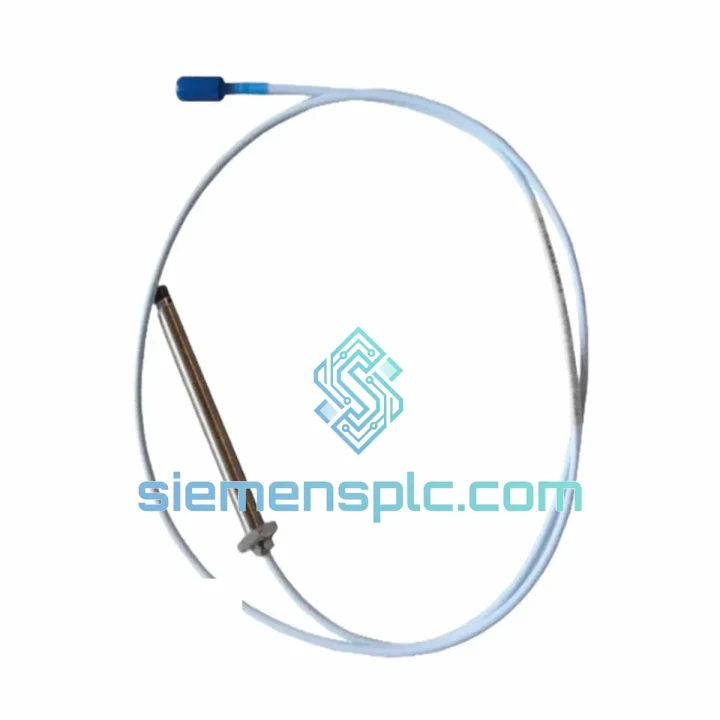

Bently Nevada 330103-00-05-10-01-00 Proximity Probe

330103-00-05-10-01-00 In Stock — Cut Your Downtime Before It Cuts Your Margin

Every hour a turbine, compressor, or critical rotating machine sits idle, the losses compound. A failed proximity probe shouldn’t be the reason your plant misses its production target. The Bently Nevada 330103-00-05-10-01-00 — an 8 mm eddy-current proximity probe from the field-proven 3300 XL Series — is on our shelf in Xiamen right now. We ship DHL/FedEx Express within 24 hours of order confirmation. No waiting on factory lead times. No broker runaround.

This is the part your protection system is waiting for. Let’s get your machine back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, the same failure patterns show up again and again with the 3300 XL probe system. Here’s what to check before you pull the trigger on a replacement — and what to watch when you install the new one.

Common Fault Codes & Root Causes

• OK LED off / Not OK relay de-energized: First suspect is probe gap out of range. Measure DC bias voltage at the Proximitor output — should read –10 VDC ±0.5 V at mid-gap (1.0 mm). If you’re reading –24 VDC (rail), the probe coil is open. If you’re reading 0 VDC, the cable is shorted. Either way, the probe assembly is the culprit.
• High static reading / alarm at startup: Check that the probe tip is not contacting the shaft. Verify gap with a feeler gauge — target 1.0 mm (40 mil) for standard 3300 XL installations. A gap set too tight will push the DC bias toward –2 VDC and trigger a high-vibration alarm before the machine even reaches operating speed.
• Intermittent signal / noise spikes: 90% of the time this is the coaxial connector at the probe-to-extension-cable junction. Moisture ingress, fretting corrosion, or a loose lock nut. Clean with contact cleaner, re-torque to spec, and re-check. If the noise persists, swap the extension cable before condemning the probe.
• Calibration drift over time: The 3300 XL system is a matched set — probe, extension cable, and Proximitor driver are calibrated together. If any one component is replaced individually, the scale factor will shift. Always replace as a matched system and re-gap after installation.

Replacement Procedure — Key Steps

• De-energize the Proximitor driver before disconnecting the probe. The –24 VDC supply is live at the connector even when the machine is stopped.
• Record the existing probe gap (DC bias voltage) before removal. This gives you a baseline for re-installation.
• When installing the new 330103-00-05-10-01-00, set the gap to 1.0 mm (40 mil) using a non-ferrous feeler gauge. Lock the probe holder jam nut to prevent gap drift from vibration.
• Verify the replacement probe part number suffix matches your extension cable and Proximitor driver. The 3300 XL system uses suffix coding to define the matched set — mixing suffix variants will produce calibration errors that are difficult to diagnose in the field.
• After installation, perform a static calibration check: apply a known gap and verify the Proximitor output voltage matches the published scale factor within ±1%.
• Check the 3500 monitor channel for OK status and confirm the DC gap reading is within the configured OK limits before returning the machine to service.

Reliability in Harsh Conditions

The 3300 XL probe is not a lab instrument. It was designed from the ground up for continuous, unattended operation in the worst environments rotating machinery can produce.

The armored coaxial cable on the 330103-00-05-10-01-00 uses a stainless steel braid over a PTFE-insulated center conductor. This construction resists oil, steam, and process chemical exposure that would destroy a standard instrumentation cable within months. The probe body itself is machined from stainless steel with a hermetically sealed coil assembly — there are no internal components that can corrode, loosen, or wear out under vibration.

In high-temperature zones adjacent to turbine casings, the probe body is rated to +177°C continuous. For installations where ambient temperatures exceed this — such as probes mounted directly on hot gas expanders — Bently Nevada offers high-temperature variants, but the standard 330103 handles the vast majority of steam turbine and gas turbine bearing housing installations without derating.

Vibration immunity is inherent to the eddy-current measurement principle. Unlike accelerometers or velocity transducers, the proximity probe has no moving parts and no resonant frequency to worry about. The probe itself cannot be damaged by the vibration it is measuring. What fails in harsh conditions is almost always the cable jacket or the connector — both of which are field-replaceable without disturbing the probe mounting.

For offshore and marine installations, the 3300 XL system’s ATEX / IECEx certification covers Zone 1 hazardous areas, and the stainless steel construction meets the corrosion resistance requirements of marine environments. Units destined for offshore platforms are typically supplied with additional cable protection — contact us to discuss your specific installation requirements.

Global Express Logistics

Our warehouse is located in Xiamen, China (XMN) — one of the most logistics-efficient export hubs on the southeast coast. We have standing accounts with DHL Express and FedEx International Priority, with daily pickup cutoffs that allow same-day dispatch for orders confirmed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx IP
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express
• North America (USA, Canada): 4–5 business days via FedEx IP
• Australia / New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of conformity. For customers in regulated industries requiring additional documentation (material traceability, inspection reports), these are prepared at the time of dispatch — not as an afterthought. We handle export customs clearance from the China side. Your freight forwarder or our nominated broker handles import clearance at destination.

For genuine shutdown emergencies, contact us directly on WhatsApp. We have arranged weekend dispatch and after-hours courier pickups for customers facing critical machine outages. If the part is on our shelf, we will find a way to get it moving.
