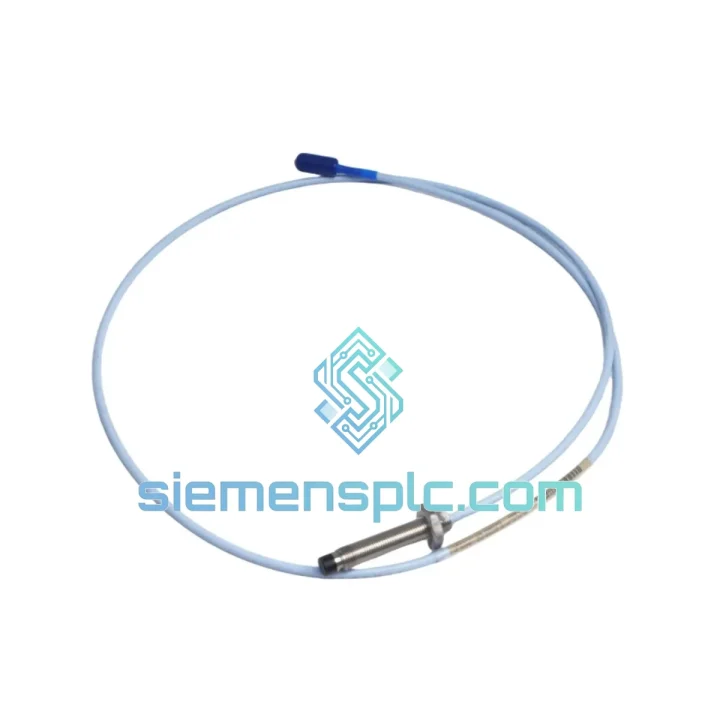

Bently Nevada 330103-00-05-10-12-00 Proximity Probe – 3300 XL Series

Bently Nevada 330103-00-05-10-12-00: 5mm Eddy Current Proximity Probe for Critical Rotating Machinery Protection

The 330103-00-05-10-12-00 is a 5mm-tip eddy current proximity probe manufactured by Bently Nevada (a Baker Hughes company) as a core sensing element within the 3300 XL 8mm Proximity Transducer System. This probe is engineered for continuous, non-contact measurement of shaft radial vibration and axial position in turbomachinery operating under API 670 machinery protection requirements. Its deployment spans steam turbines, gas compressors, centrifugal pumps, and gearbox trains across petrochemical, power generation, LNG, and offshore sectors.

Unlike general-purpose inductive sensors, the 330103-00-05-10-12-00 is factory-calibrated as part of a matched three-component system — probe, extension cable, and driver/oscillator — ensuring the 7.87 V/mm (200 mV/mil) scale factor is maintained across the full linear measurement range of 0.25 mm to 2.25 mm. This calibration traceability is a mandatory requirement under API 670 Section 5 for machinery protection instrumentation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330103-00-05-10-12-00 is grounded in Faraday’s law of electromagnetic induction. The probe tip houses a precision-wound coil energized by a high-frequency oscillator (typically 1.0 MHz carrier) embedded in the matched driver module. When the coil approaches a conductive target, eddy currents are induced on the target surface, loading the coil and reducing its effective inductance and Q-factor. The driver continuously monitors this impedance change and converts it to a DC output voltage with a linear relationship to the air gap — 7.87 V/mm across the 0.25–2.25 mm range.

EMC Design Architecture: The 5mm tip geometry is specifically selected to minimize sensitivity to magnetic permeability variations in the target material while maintaining adequate field penetration depth (skin depth at 1 MHz in AISI 4140 is approximately 8 µm). The armored coaxial cable construction provides continuous RF shielding from probe tip to driver input, suppressing common-mode noise pickup in environments with high-voltage switchgear, variable-frequency drives, and arc furnaces operating in proximity. The shield is grounded at the driver end only (single-point grounding) to prevent ground loop currents from corrupting the low-level carrier signal.

Thermal Stability: The probe body is manufactured from 316 stainless steel with a coefficient of thermal expansion (CTE) matched to the coil former material. This minimizes thermally induced dimensional drift in the coil geometry across the –35°C to +177°C operating range, preserving scale factor accuracy without field recalibration during normal thermal cycling of the machinery.

DC Response Significance: Unlike AC-coupled vibration sensors (e.g., piezoelectric accelerometers), the 330103-00-05-10-12-00 maintains full DC response. This is architecturally critical for axial position monitoring: a turbine rotor experiencing thrust bearing wear will exhibit a slow, quasi-static axial migration that an AC-coupled sensor cannot detect. The DC output captures both the static position offset and the superimposed dynamic vibration components simultaneously, enabling a single sensor to serve dual protection functions — radial vibration and position — within one measurement channel.

System Integration Benefits

• Direct API 670 compliance: The matched probe-cable-driver system meets API 670 5th Edition requirements for proximity transducer systems, eliminating the need for additional field calibration documentation when commissioning new machinery protection loops.
• Plug-compatible with 3500 and 3300 monitor racks: The –24 VDC supply and DC voltage output interface directly with Bently Nevada 3500/40M, 3500/42M, and 3300 series monitor cards without signal conditioning adapters, reducing panel wiring complexity.
• Sub-micron resolution: At 7.87 V/mm scale factor and with a 3500 monitor’s 16-bit ADC, the effective measurement resolution is below 0.5 µm — sufficient to detect early-stage bearing wear before vibration amplitude thresholds are reached.
• Deterministic frequency response to 10 kHz: Resolves sub-synchronous instabilities (oil whirl at 0.43–0.48×N), synchronous 1× imbalance, and super-synchronous blade-pass frequencies in a single broadband measurement channel.
• Intrinsically safe configurations: ATEX/IECEx certification enables deployment in Zone 1 and Zone 2 hazardous areas (gas groups IIA, IIB) without additional enclosure requirements, reducing installation cost in refinery and offshore environments.
• Wide thermal operating range: The –35°C to +177°C probe body rating accommodates hot-section bearing housing installations on gas turbines where ambient temperatures routinely exceed 120°C, without requiring thermal isolation standoffs.
• Diagnostic transparency via gap voltage monitoring: The raw DC gap voltage output is accessible at the driver terminal, allowing maintenance engineers to verify probe-to-shaft gap during installation and after maintenance outages without removing the probe from its mounting boss.
• Long-term calibration stability: The eddy current sensing mechanism has no moving parts and no wear surfaces. Field experience across the installed base demonstrates scale factor drift of less than ±0.5% over 10-year service intervals in clean environments, minimizing recalibration costs over the machinery lifecycle.

Quality Assurance & Global Logistics

Every 330103-00-05-10-12-00 unit supplied by siemensplc.com is sourced through verified channels with full part traceability back to Bently Nevada (Baker Hughes) manufacturing records. Prior to dispatch, each probe undergoes a pre-shipment inspection protocol covering physical housing integrity, armored cable continuity, coaxial connector condition, and coil impedance verification against factory specification bands. Units exhibiting any deviation from the published impedance envelope are quarantined and not shipped.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard international transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East. Export documentation including commercial invoice, packing list, and HS code declaration (HS 9031.80) is prepared for every shipment to ensure smooth customs clearance. For time-critical plant shutdowns or emergency maintenance windows, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement or credit options are available based on inspection findings.
