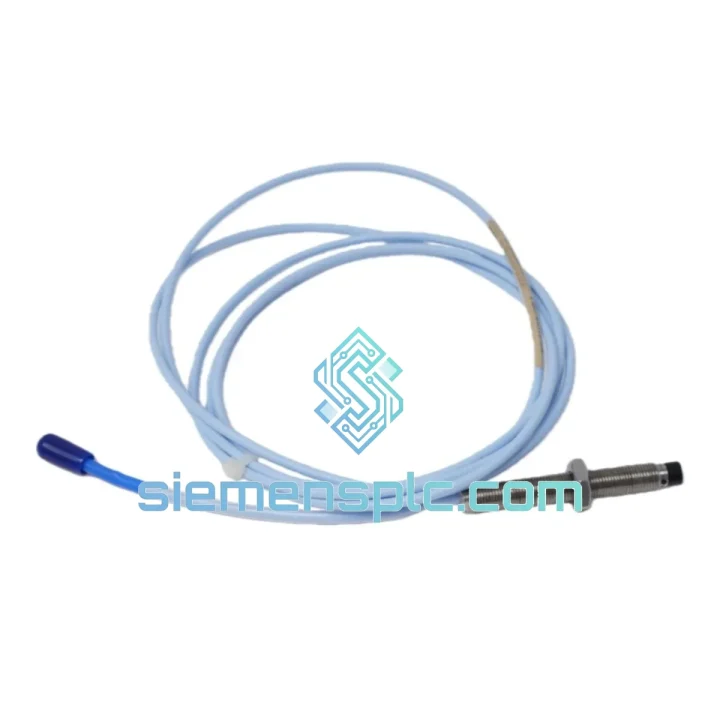

Bently Nevada 330103-00-07-20-02-CN Proximity Probe

330103-00-07-20-02-CN Down? Every Minute of Shaft Vibration Unmonitored Is a Liability — We Ship Same Day

Your turbine is running blind. The 3300 XL proximity loop is broken, the DCS is throwing Alert 1 / Alert 2 on the radial vibration channel, and your maintenance window is closing fast. The Bently Nevada 330103-00-07-20-02-CN is a metric-threaded eddy-current proximity probe — the exact transducer that feeds shaft position and vibration data to your 3500 monitor rack. Without it, you are operating on assumption, not measurement. We stock this part in Xiamen and dispatch within hours of order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 3300 XL system reveals a consistent set of failure signatures. Before you condemn the probe, work through this sequence — it saves you from replacing the wrong component.

Fault Code: OK Relay De-energized / -24 VDC Supply Fault
Check the Proximitor sensor first. A failed 330180 Proximitor will pull the probe output to rail (typically −24 V or 0 V), mimicking a shorted probe. Measure DC bias voltage at the BNC output of the Proximitor: nominal is −10 V ± 0.5 V at the center of the linear range. If you read −24 V, the probe is likely open-circuit (cable break). If you read 0 V, suspect a shorted probe tip or Proximitor failure.

Fault Code: High Vibration / Spike on One Channel Only
Inspect the probe tip for mechanical contact marks. A rotor rub event will leave a circumferential witness mark on the probe face. Even a 0.1 mm nick on the tip changes the eddy-current field geometry and introduces a once-per-revolution spike that the monitor interprets as vibration. Replace the probe — lapping the tip is not an acceptable field repair.

Replacement Procedure — Critical Steps:

• Gap Setting: The 330103-00-07-20-02-CN requires a nominal air gap of 1.0 mm (40 mil) for the 3300 XL 8mm Proximitor. Use a non-ferrous feeler gauge. Do not use a steel gauge — it will corrupt the gap reading. Verify with a DC voltmeter: target −10.0 V ± 0.2 V at the Proximitor output.
• Thread Torque: M8 × 1.0 probe body — torque locknut to 14 N·m (10 ft·lb). Under-torquing allows thermal cycling to shift the gap; over-torquing cracks the probe housing.
• Cable Routing: The integral 2 m cable must not share a conduit with AC power wiring. Induced noise on the coax shield will appear as a fixed-frequency vibration component on the monitor. Maintain minimum 150 mm separation from 480 VAC runs.
• No Recalibration Required: The 330103-00-07-20-02-CN is a drop-in replacement for any 3300 XL 8mm probe installation. Scale factor is factory-set at 7.87 V/mm. The 3500 monitor does not require a configuration change — confirm the channel is set to 8mm probe type in the rack configuration software.
• CN Suffix Note: The CN designation indicates China regional ATEX/IECEx certification markings. Electrically and mechanically identical to the standard variant. Fully compatible with all 3300 XL Proximitor sensors worldwide.

Common Misdiagnosis: Engineers frequently replace the extension cable (330130 series) when the fault is actually in the probe. Before pulling the probe from the bearing housing — which requires a shutdown — disconnect the extension cable at the field junction and measure probe bias voltage directly at the probe connector. A healthy probe reads −10 V ± 1 V with the Proximitor powered. If the reading is correct at the probe connector but wrong at the monitor, the extension cable is the culprit.

Reliability in Harsh Conditions

The 3300 XL probe series was designed for environments that destroy ordinary sensors. The 330103-00-07-20-02-CN carries a −35 °C to +177 °C operating range — sufficient for bearing housing temperatures on high-pressure steam turbines running at 540 °C steam inlet. The probe body is machined from 316 stainless steel with a ceramic-filled epoxy tip that resists oil mist, process gas condensate, and aggressive cleaning solvents used during outage maintenance.

Vibration immunity is built into the mechanical design. The M8 locknut assembly, when properly torqued, maintains probe position under continuous 50 g vibration loads — the kind of broadband excitation you see during a compressor surge event or a turbine trip. The integral armored cable eliminates the field-splice failure point that plagues two-piece probe assemblies in high-vibration installations.

Humidity and condensation are handled by the hermetically sealed probe body. The coaxial cable termination at the probe connector is potted, not just sealed with an O-ring. This matters in outdoor installations and in bearing housings where steam ingress occurs during startup. Units stored in our Xiamen warehouse are maintained in climate-controlled conditions with desiccant packaging — you receive a probe that performs to OEM specification, not one that has been sitting in an uncontrolled environment for years.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with direct DHL and FedEx connections to over 220 countries. Here is how a typical emergency order moves:

• Order Confirmed (Hour 0): Payment cleared and export documentation initiated. Commercial invoice, packing list, and certificate of origin generated.
• Warehouse Pick & Pack (Hour 1–3): Unit pulled from climate-controlled stock, inspected, wrapped in anti-static foam, and sealed in a rigid outer carton. Weight and dimensions logged for customs.
• Carrier Handoff (Hour 4–6): Shipment tendered to DHL Express or FedEx International Priority, depending on destination and customer preference. Tracking number issued and emailed immediately.
• Customs Clearance: HS Code 9031.80 (precision measurement instruments). We pre-declare all shipments with accurate commodity descriptions to minimize customs hold risk. For destinations with import licensing requirements (e.g., certain Middle East and South Asian markets), we advise customers in advance.
• Delivery Timeline: Europe and North America: 3–5 business days. Southeast Asia: 1–3 business days. Middle East and South Asia: 4–7 business days. All timelines are DHL/FedEx published transit times from Xiamen — not estimates.

For orders placed before 14:00 CST, same-day dispatch is standard. Weekend orders are processed Monday morning with priority handling. If your plant is down and every hour counts, contact us directly on WhatsApp — we will coordinate the fastest available routing in real time.
