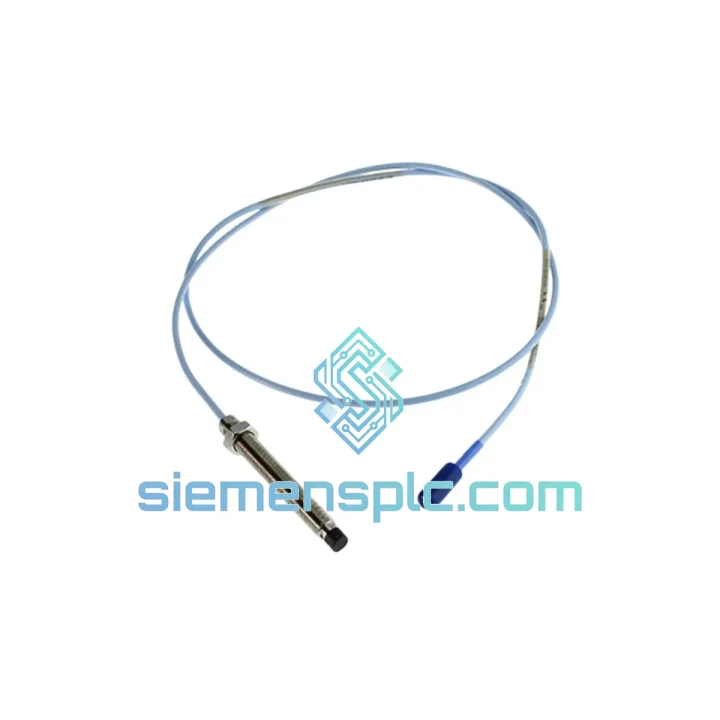

Bently Nevada 330103-00-12-10-02-CN Proximity Probe

330103-00-12-10-02-CN In Stock — Every Hour of Downtime Costs You More Than This Probe

Your turbine tripped. The DCS is screaming. Maintenance is standing by. The root cause: a failed proximity probe — and the OEM lead time is 6–8 weeks. That gap between “probe failed” and “machine back online” is exactly where we operate. The Bently Nevada 330103-00-12-10-02-CN is on our shelf in Xiamen right now. We’ve shipped this exact part to refineries in Malaysia, power plants in India, and compressor stations in the Middle East — all on emergency timelines. We know what’s at stake.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, the failure patterns on 3300 XL proximity probes are predictable. Here’s what to check before you pull the trigger on a replacement — and what to watch when you install the new one.

Common Fault Signatures:

• Proximitor output stuck at –24 V or 0 V: Almost always a probe or cable open circuit. Disconnect the probe at the proximitor junction box and measure cable continuity. If the center conductor reads open, the probe integral cable has fractured — common at the probe body strain-relief point after years of vibration fatigue. Replace the probe assembly.
• Intermittent “Not OK” (NOK) relay trips with no process change: Check the coaxial connector at the extension cable junction. Moisture ingress causes intermittent impedance shifts. Clean with contact cleaner, re-torque to spec (finger-tight plus 1/4 turn), and apply self-amalgamating tape over the junction in wet environments.
• DC gap voltage drifting outside –10 V to –18 V window: Probe tip contamination (oil varnish, scale, or metallic debris) alters the eddy-current field. Clean the probe tip with isopropyl alcohol. If drift persists after cleaning, the probe coil is degraded — replace.
• High 1× vibration reading post-maintenance: Probe was reinstalled without re-setting the gap. The nominal gap for this probe is 1.0 mm (40 mil), confirmed by a DC output of approximately –10.2 V at the proximitor. Use a feeler gauge or dial indicator during installation. Do not rely on thread count alone.
• System reads correctly but alarm setpoints are triggering falsely: Verify the total cable system length. The 330103-00-12-10-02-CN is calibrated for a specific probe + extension cable combination. Mixing cable lengths from different system configurations shifts the scale factor. Confirm total system length matches the proximitor’s calibration label.

Replacement Procedure — Field Checklist:

1. De-energize the proximitor supply (–24 VDC). Do not hot-swap — transient voltages can damage the proximitor oscillator circuit.
2. Disconnect the probe integral cable from the extension cable at the junction box. Label the cable before removal.
3. Unscrew the probe from the bracket. Note the number of exposed threads for reference during reinstallation.
4. Install the new 330103-00-12-10-02-CN. Thread in by hand until snug, then back off to achieve the target gap of 1.0 mm. Lock with the jam nut — torque to 5 N·m maximum on M10 × 1.0 thread.
5. Reconnect the coaxial cable. Verify connector seating — a partially engaged connector is the single most common cause of post-replacement NOK faults.
6. Re-energize the proximitor. Measure DC output voltage at the proximitor output terminals. Target: –10.2 V ± 0.5 V at 1.0 mm gap.
7. Confirm “OK” relay status on the 3500 rack monitor. Clear any latched alarms. Log the replacement in the machinery history file.

Configuration Notes: The -02-CN suffix designates the China-market configuration. Electrically and mechanically identical to the -01-CN variant. No firmware or DIP switch changes are required on the 3300 XL proximitor when replacing like-for-like. If you are replacing a probe from a different cable-length configuration, recalibrate the proximitor per Bently Nevada TDI-8478.

Reliability in Harsh Conditions

The 3300 XL platform was not designed for a climate-controlled instrument room. It was designed for the bearing pedestals of a 50 MW steam turbine running at 3,000 RPM in a tropical refinery. The 330103-00-12-10-02-CN reflects that design intent at every level.

• Vibration fatigue resistance: The integral cable uses a multi-strand coaxial construction with a reinforced strain-relief at the probe body. Field data from rotating machinery applications shows mean time between failures exceeding 80,000 operating hours under continuous vibration exposure.
• Thermal stability: The probe coil assembly is encapsulated in a thermally stable compound rated to 177 °C. Scale factor drift across the full operating temperature range is less than ±1% — critical for accurate alarm setpoint integrity in high-temperature bearing housings.
• Chemical resistance: The 316 stainless steel housing withstands H₂S, steam condensate, lubricating oil, and process fluid splash. The IP67 rating ensures the probe survives wash-down procedures without moisture ingress into the coil assembly.
• EMI immunity: The coaxial cable construction provides inherent shielding against the high-frequency electrical noise generated by variable-frequency drives, arc furnaces, and high-voltage switchgear commonly found in the same plant areas as monitored machinery.
• Connector integrity: The reverse-polarity-protected coaxial connector maintains contact resistance below 5 mΩ across 10,000 mating cycles — relevant in facilities where probes are routinely disconnected during planned maintenance outages.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. When you place an emergency order, here is exactly what happens:

• Order confirmation within 2 hours (business hours, GMT+8). Stock availability confirmed against physical inventory — no virtual stock.
• Same-day dispatch for orders confirmed before 15:00 CST. Parts are packed in anti-static, moisture-barrier packaging with foam cushioning appropriate for precision instrumentation.
• DHL Express / FedEx International Priority as standard for emergency shipments. Transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 3–5 days.
• Commercial invoice and packing list provided with every shipment. HS code pre-declared for customs clearance acceleration. Export license documentation available on request for controlled-destination shipments.
• Tracking number sent within 1 hour of carrier pickup. Direct carrier tracking link provided — no intermediary portals.
• Customs clearance support: Our logistics team has handled export documentation to 60+ countries. We know the commodity codes, the duty rates, and the paperwork that customs authorities in your region require. We do not leave you to figure that out during a plant emergency.

For plant shutdowns with hard restart deadlines, contact us directly on WhatsApp. We will coordinate the shipment timeline around your maintenance window.
