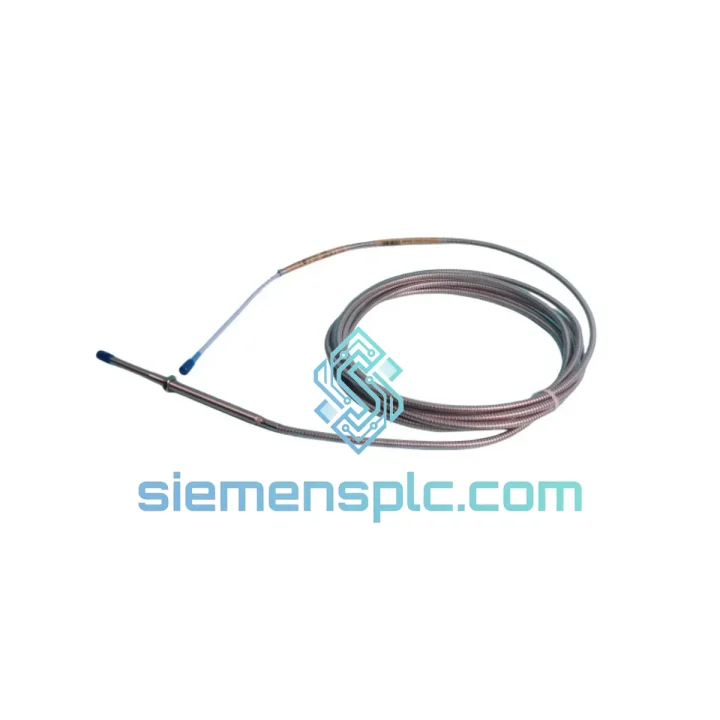

Bently Nevada 330103-00-12-15-01-05 Proximity Transducer – 3300 XL

Bently Nevada 330103-00-12-15-01-05 — Eddy-Current Proximity Transducer in Rotating Machinery Protection Loops

The Bently Nevada 330103-00-12-15-01-05 is an 8 mm, screw-mount proximity probe forming the field-sensing element of the 3300 XL Proximity Transducer System. Its function within a machinery protection loop is to convert the instantaneous air gap between probe tip and rotating shaft into a proportional DC voltage signal, which downstream Proximitor® drivers and 3500-series monitors then process for radial vibration, axial position, and differential expansion measurements. The probe operates on the eddy-current induction principle: a high-frequency oscillator (nominally 1.0 MHz) drives a coil embedded in the probe tip, inducing eddy currents in the conductive target surface. As shaft-to-probe gap varies, the reflected impedance modulates the oscillator amplitude, producing a linear voltage output of 7.87 V/mm (200 mV/mil) across the calibrated range of 0.25 mm to 2.54 mm (10 mil to 100 mil).

In a turbomachinery protection architecture, this probe is typically installed in a dual-probe, 90°-opposed configuration at each radial bearing journal, enabling full shaft orbit reconstruction. The DC gap voltage simultaneously serves as the axial reference for thrust position monitoring when deployed at the active thrust collar face. This dual-function capability — radial vibration and axial position from a single probe type — reduces spare-parts inventory complexity across multi-train installations.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330103-00-12-15-01-05 probe tip assembly houses a precision-wound, multi-layer coil encapsulated in PEEK (polyether ether ketone) thermoplastic. PEEK was selected for its dielectric stability across the full –35°C to +177°C operating envelope and its resistance to hydrocarbon-based lubricants, steam condensate, and hydrogen sulfide atmospheres common in refinery and gas-processing environments. The coil geometry is fixed at manufacture to a tolerance of ±2 μm on winding pitch, which directly governs the probe’s sensitivity coefficient and ensures interchangeability within a calibrated system without field re-calibration of the Proximitor driver.

The integral 1.2 m armored cable uses a low-loss coaxial construction with a characteristic impedance matched to the 3300 XL Proximitor input. The outer braid is double-shielded and terminated to the probe housing ground, providing attenuation of radiated EMI from adjacent variable-frequency drives, high-current bus bars, and ignition systems. This shielding architecture maintains signal integrity at the 1.0 MHz carrier frequency even in switchgear rooms where conducted emissions can exceed 10 V/m.

The probe body is machined from 316 stainless steel, which provides corrosion resistance in wet-gas and sour-service environments while maintaining dimensional stability under the mechanical preload applied by the locknut during installation. The M8 thread form is manufactured to ISO 965-1 tolerance class 6H/6g, ensuring consistent probe-to-holder engagement torque and repeatable gap-setting across replacement cycles. The gold-plated coaxial center pin at the cable termination eliminates contact resistance variation that would otherwise introduce a DC offset error into the gap voltage output.

From an EMC design standpoint, the probe’s high-frequency oscillator is self-contained within the Proximitor driver, not the probe body itself. This architecture means the probe cable carries only the modulated carrier signal rather than the raw oscillator drive, reducing the cable’s role as a radiating antenna. The result is a system that meets IEC 61000-4-3 radiated immunity requirements at 10 V/m without additional external filtering.

System Integration Benefits

• Direct 3500-series monitor compatibility: The 330103-00-12-15-01-05 probe, when paired with a 330180-series Proximitor, produces a signal fully compatible with Bently Nevada 3500/40M, 3500/42M, and 3500/46M monitor cards — no signal conditioning adapters required.
• Deterministic latency contribution: The eddy-current transduction chain introduces less than 5 μs of signal delay from mechanical gap change to Proximitor output, preserving the sub-millisecond alarm response time mandated by API 670 for overspeed and high-vibration trips.
• Shaft orbit reconstruction fidelity: With ±1% linearity across the full 2.29 mm range, dual-probe orbit plots accurately represent elliptical shaft precession paths, enabling reliable diagnosis of oil-whirl, misalignment, and rub conditions without linearization correction in the monitor software.
• Thermal drift compensation: The PEEK tip material has a thermal expansion coefficient of 47 ppm/°C, closely matched to the 316 SS housing (16 ppm/°C) in a composite assembly that limits thermally induced sensitivity drift to less than 0.5% across the full operating temperature range.
• Intrinsically safe system path: When installed with an approved IS barrier (e.g., Bently Nevada 990-04-70-01-00), the probe and cable assembly meets ATEX Zone 1 / IECEx Group IIC requirements, enabling deployment in hydrogen-rich or light-hydrocarbon atmospheres without conduit sealing or purge-and-pressurization systems.
• Reduced spare-parts matrix: The 8 mm probe form factor is common across radial vibration, axial position, and differential expansion measurement points in a 3300 XL installation, allowing a single probe SKU to cover multiple measurement functions and simplifying warehouse stocking strategies for plant maintenance teams.
• Diagnostic transparency via gap DC voltage: The continuous –1 VDC to –21 VDC output provides a real-time, analog health indicator of probe-to-shaft gap. Trending this DC value in the historian identifies probe fouling, shaft wear, or bracket creep before vibration alarm thresholds are reached — enabling condition-based maintenance rather than time-based replacement.
• Non-contact wear-free operation: The absence of any mechanical contact between probe tip and rotating shaft means the transducer has no inherent wear mechanism. Mean time between replacement is governed by environmental degradation of the cable jacket and connector, not by the sensing element itself, supporting multi-year maintenance intervals in clean installations.

Quality Assurance & Global Logistics

Every Bently Nevada 330103-00-12-15-01-05 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full batch traceability. Pre-shipment inspection covers dimensional verification of the M8 thread form, coaxial connector impedance measurement, cable continuity and insulation resistance (≥100 MΩ at 500 VDC), and visual inspection of the PEEK tip for surface defects. Units are individually packaged in anti-static foam with desiccant and sealed in moisture-barrier poly bags to preserve connector integrity during ocean or air freight transit.

Shipments originate from our Xiamen, China warehouse. Xiamen is a designated free-trade port with direct access to major international freight forwarders, enabling DDP (Delivered Duty Paid) delivery to most destinations in Southeast Asia, the Middle East, Europe, and the Americas within 5–10 business days via express air freight. For project-volume orders (10+ units), sea freight consolidation from Xiamen Port is available with lead times of 18–25 days to European and US ports. All export documentation — commercial invoice, packing list, certificate of origin, and MSDS where required — is prepared in compliance with destination customs requirements.

A 12-month warranty against manufacturing defects is provided from the date of delivery. DOA (Dead on Arrival) units confirmed within 30 days of receipt are replaced or credited without return freight cost to the buyer. Warranty claims are processed within 3 business days of defect confirmation.
