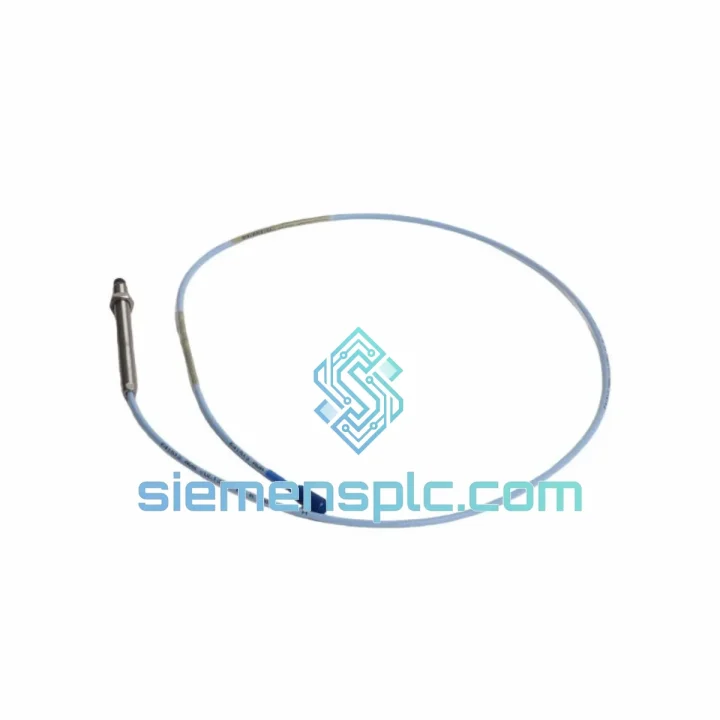

Bently Nevada 330103-00-15-05-02-CN Proximity Transducer

330103-00-15-05-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your turbine is tripped. The DCS is screaming. Maintenance is standing by with zero spare parts on the shelf. Every hour that compressor sits idle costs your facility anywhere from $15,000 to $80,000 in lost production — and the root cause is a single failed proximity transducer. The Bently Nevada 330103-00-15-05-02-CN is in stock at our Xiamen warehouse right now. We’ve shipped this exact part to power plants in Southeast Asia, the Middle East, and Europe within 24 hours of order confirmation. This page exists for one reason: to get your machine back online as fast as physically possible.

The 330103-00-15-05-02-CN is a 5mm tip-diameter eddy current proximity transducer from the Bently Nevada 3300 XL Series — the most widely deployed machinery protection platform in the world. It measures radial shaft vibration, axial position, and differential expansion on rotating equipment including steam turbines, gas turbines, centrifugal compressors, and boiler feed pumps. The part number encodes its exact configuration: 15-inch armored extension cable, 5mm probe tip, 2-meter integral cable, CN coaxial connector. There is no ambiguity. If your existing transducer carries this number, this is your direct replacement.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of emergency callouts, here are the failure modes and swap pitfalls that catch engineers off guard on the 330103-00-15-05-02-CN:

Most Common Failure Modes

• Open-circuit extension cable: The armored cable is robust, but repeated thermal cycling at the probe-to-extension junction causes micro-fractures in the coaxial center conductor. Symptom: 3500 rack shows a static −24V output (full-scale negative) or a “Not OK” (NOK) status on the Proximitor. Resistance check between probe tip and Proximitor input will confirm. Do not attempt to repair — replace the full transducer assembly.
• Proximitor driver failure vs. probe failure: Before condemning the 330103-00-15-05-02-CN, disconnect the probe at the Proximitor input and measure the gap voltage with a known-good probe. If the Proximitor recovers, the probe is the culprit. If it stays NOK, the 330180-series Proximitor itself needs replacement. Misdiagnosing this wastes a $400 transducer.
• Contaminated probe tip: In compressor seal oil environments, oil carbonization builds up on the probe tip and shifts the gap calibration by 0.1–0.3 mm. This manifests as a slow drift in the 1X vibration baseline over weeks. Clean with isopropyl alcohol and a lint-free swab before condemning the transducer.
• Alarm trips after replacement — gap not reset: The most common post-swap mistake. After installing the new 330103-00-15-05-02-CN, the physical air gap must be re-set to the OEM-specified value (typically 1.0–1.5 mm for this probe, yielding approximately −10 VDC at the Proximitor output). Use a non-ferrous feeler gauge and a calibrated DC voltmeter. Do not rely on the old probe’s gap setting — probe-to-probe dimensional tolerances exist.

Replacement Procedure — Field Checklist

• ☐ Confirm machine is de-energized and locked out (LOTO). Rotating equipment only — do not swap under load.
• ☐ Document the existing gap voltage before removal (read from Proximitor output or 3500 rack display). Target: −10 VDC ± 0.5 VDC.
• ☐ Disconnect the CN connector at the Proximitor junction box. Label the cable if multiple probes are in the same bracket assembly.
• ☐ Remove the probe from its holder using the correct spanner — do not grip the armored cable. Thread damage on the probe body is irreversible.
• ☐ Install the new 330103-00-15-05-02-CN. Hand-tighten first, then set gap using feeler gauge to 1.0 mm (or per OEM spec for your specific shaft diameter).
• ☐ Reconnect CN connector. Verify no continuity between shield and center conductor (indicates cable damage).
• ☐ Power up Proximitor. Confirm gap voltage is within −9.5 VDC to −10.5 VDC. Adjust gap in 0.1 mm increments as needed.
• ☐ Check 3500 rack for OK status on the corresponding channel. Clear any latched alarms.
• ☐ Perform a slow-roll check (below first critical speed) to verify 1X vibration baseline is within historical norms before returning to full speed.

Configuration Notes

• The 330103-00-15-05-02-CN does not have DIP switches or firmware — it is a passive sensing element. All configuration (alarm setpoints, OK limits, scale factor) resides in the paired Proximitor sensor (330180 series) and the 3500 rack monitor module.
• If replacing a probe that was previously calibrated for a non-standard target material (stainless shaft, Inconel), the Proximitor scale factor must be re-verified. The standard 7.87 V/mm sensitivity applies to AISI 4140 steel only.
• For 3500/42M dual-channel configurations, confirm the channel assignment (CH1 vs CH2) before reconnecting. Swapping channels on a dual-probe radial measurement setup will invert the vibration vector and corrupt your phase data.

Reliability in Harsh Conditions

The 3300 XL Series was not designed for a climate-controlled instrument room. It was designed for the bearing pedestal of a 50 MW steam turbine running at 3,000 RPM in a tropical petrochemical plant with 95% humidity, 60°C ambient, and a VFD cabinet three meters away generating broadband EMI. The 330103-00-15-05-02-CN survives this environment because of deliberate engineering choices, not marketing claims.

The armored extension cable uses a stainless steel braid over a PTFE-insulated coaxial core. This construction resists crush loads from cable trays, chemical attack from seal oil and cleaning solvents, and the repeated flexing that occurs during maintenance access. The probe body itself is machined from 316 stainless steel with a ceramic-filled epoxy tip — dimensionally stable from cryogenic temperatures to the +177°C probe rating, which covers the vast majority of bearing housing environments encountered in practice.

Vibration immunity is a non-issue for a non-contact sensor with no moving parts, but the mounting thread and locknut assembly have been validated to maintain gap stability under 10–2,000 Hz broadband vibration at 20g — the kind of structural vibration present on a reciprocating compressor skid or a poorly balanced fan. The CN coaxial connector is rated for 500 mating cycles and sealed against moisture ingress to IP67 when properly torqued.

Units supplied from our Xiamen warehouse are stored in climate-controlled conditions, individually packaged in anti-static, moisture-barrier bags with silica gel desiccant, and shipped with probe tip caps installed. We do not strip OEM packaging. What arrives at your site is what left the factory.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub with daily freighter connections to Hong Kong, Singapore, Dubai, Frankfurt, and Memphis. This geography is not accidental — it is why we can offer next-flight-out shipping on critical spares to virtually any industrial site on the planet.

Standard Express Timeline (from order confirmation):

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 1–2 business days via DHL Express or FedEx International Priority.
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days via DHL Express.
• Europe (Germany, Netherlands, UK, France, Italy): 3–4 business days via FedEx International Priority or DHL Express.
• North America (USA, Canada): 3–5 business days via FedEx International Priority.
• South America / Africa: 4–6 business days depending on customs clearance at destination.

Export Documentation Included: Commercial Invoice, Packing List, Certificate of Origin, and — upon request — a Certificate of Conformance. For ATEX-rated installations, we can provide the relevant Declaration of Conformity documentation. All shipments are export-controlled compliant; HS Code 9031.80 applies to proximity transducer systems.

For genuine emergencies — machine tripped, production stopped, management escalating — contact us directly on WhatsApp. We have processed same-day order confirmations and handed shipments to DHL couriers within 4 hours of receiving payment. Tell us your situation. We will tell you honestly whether we can meet your timeline.
