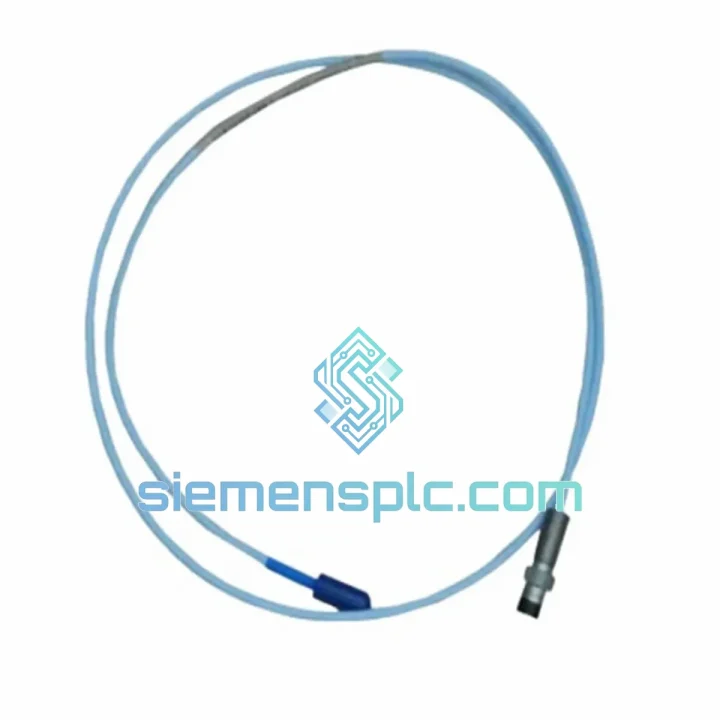

Bently Nevada 330103-05-12-10-01-00 Proximity Probe – 3300 XL Series

Bently Nevada 330103-05-12-10-01-00: Eddy Current Proximity Probe in Rotating Machinery Protection Loops

The Bently Nevada 330103-05-12-10-01-00 is a 5 mm diameter eddy current proximity probe within the 3300 XL Series, engineered for continuous, non-contact measurement of radial shaft vibration and static position in critical rotating machinery. Its role in a protection loop is deterministic: the probe generates a high-frequency oscillating electromagnetic field (typically 1.0 MHz carrier frequency) that induces eddy currents in the conductive target shaft. As the air gap between probe tip and shaft surface changes, the eddy current loading on the probe coil changes proportionally, modulating the oscillator’s output voltage. This voltage signal — linear across the calibrated gap range of approximately 0.25 mm to 2.25 mm — is transmitted via the integral 10-meter cable to the paired 3300 XL Proximitor/Driver, which conditions and scales the signal to the standard -1 VDC to -17 VDC output range at 200 mV/mil (7.87 V/mm) nominal sensitivity.

In a turbine or compressor protection architecture, this probe feeds directly into a Bently Nevada 3500 Series rack module (e.g., 3500/40M Proximitor Monitor or 3500/42M Proximitor Monitor). The rack module applies configurable alert and danger setpoints against the conditioned signal. When shaft displacement exceeds the danger threshold — typically 125–250 µm peak-to-peak depending on bearing clearance and API 670 requirements — the system initiates a trip relay output within the rack’s response time, typically under 20 ms. This deterministic response time is the engineering basis for using the 3300 XL probe in safety-instrumented protection loops rather than condition monitoring alone.

The 330103-05-12-10-01-00 configuration specifies a 12-inch (305 mm) armored extension cable between the probe body and the integral cable junction. This extension length is selected to position the probe tip at the correct radial measurement plane on the shaft journal while routing the more flexible integral cable away from high-temperature or high-vibration zones near the bearing housing. The stainless steel armor on the extension cable provides mechanical protection against impact, abrasion, and chemical exposure — conditions routinely encountered in oil and gas and petrochemical plant environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe system operates on a two-wire coaxial architecture. The probe body houses a precision-wound sensing coil embedded in a ceramic-filled epoxy tip, selected for its dimensional stability across the rated temperature range. The coil’s inductance is the variable element in the oscillator tank circuit located in the Proximitor. As the target shaft approaches the probe tip, eddy current losses increase, reducing the effective Q-factor of the tank circuit and attenuating oscillator amplitude. The Proximitor’s demodulator converts this amplitude variation into a DC voltage proportional to gap distance — a fundamentally linear relationship within the calibrated range.

EMC performance is addressed at the hardware level through the coaxial cable construction: the outer shield of the integral cable serves as both the signal return conductor and the primary electromagnetic shield, maintaining a consistent characteristic impedance along the 10-meter run. This shielding architecture suppresses common-mode interference from variable-frequency drives, high-current bus bars, and RF sources that are endemic to industrial plant environments. The stainless steel armor layer over the extension cable adds a secondary mechanical and electrostatic barrier at the most mechanically stressed section of the measurement chain — the 305 mm span between the probe body and the bearing housing penetration point.

The probe tip geometry — 5 mm diameter — represents a deliberate engineering trade-off. Smaller tip diameters reduce the effective sensing area, which narrows the linear measurement range but improves spatial resolution and allows installation in tighter bearing housing geometries. The 5 mm configuration is calibrated for a 2.0 mm linear range (0.25 mm to 2.25 mm), which accommodates the full dynamic range of shaft vibration plus static eccentricity in most journal bearing designs without saturating the measurement chain. The probe body thread (M10 × 1.0 standard) allows precise axial positioning via locknut adjustment, enabling field calibration of the static gap to the nominal center of the linear range — typically 1.0 mm to 1.25 mm — without removing the probe from the bearing housing.

Thermal drift is managed through matched-coefficient material selection: the ceramic-filled epoxy tip and the stainless steel housing have closely matched thermal expansion coefficients, minimizing dimensional change in the probe tip geometry across the -35°C to +177°C operating range. This thermal stability is critical in steam turbine applications where bearing housing temperatures can vary by 80°C or more between cold startup and full-load steady state.

System Integration Benefits

• Direct 3500 rack compatibility: The -1 to -17 VDC output range maps directly to the input specification of all 3500 Series Proximitor Monitor modules, eliminating the need for signal conditioning adapters or range converters in retrofit installations.
• Deterministic trip response: The analog signal path from probe to Proximitor to 3500 rack relay output has a defined worst-case response time under 20 ms, meeting the response time requirements of API 670 for overspeed and high-vibration protection.
• DC-coupled measurement: The DC-to-10 kHz frequency response captures both the static shaft centerline position (DC component) and dynamic vibration (AC component) on a single measurement channel, enabling simultaneous monitoring of bearing wear trend and real-time vibration amplitude without additional instrumentation.
• Non-contact operation eliminates wear: With no mechanical contact between probe and shaft, the measurement element has no wear mechanism. Mean time between replacement is governed by environmental degradation of the cable and connector rather than mechanical fatigue, typically exceeding 10 years in protected installations.
• Plug-and-play replacement: The 330103-05-12-10-01-00 is dimensionally and electrically identical to previous 3300 XL probe configurations of the same cable length and tip diameter. Replacement requires only gap re-verification — no Proximitor recalibration or rack configuration change is needed.
• Redundancy-ready architecture: Two probes installed at 90° radial offset on the same shaft journal provide X-Y vibration vector data. The 3500 rack’s vector processing firmware uses both channels to compute orbit plots and shaft centerline position, enabling differentiation between unbalance, misalignment, and fluid-induced instability without additional hardware.
• Diagnostic transparency via System 1: When connected to a Bently Nevada System 1 condition monitoring platform, the probe’s gap voltage signal is continuously trended and archived. Slow drift in the static gap voltage — indicating bearing wear or shaft thermal growth — is detectable weeks before it reaches alert setpoints, enabling planned maintenance scheduling rather than reactive shutdown.
• Broad target material compatibility: While calibrated for AISI 4140 steel, the 3300 XL probe system supports field recalibration for alternative shaft materials including 17-4 PH stainless steel and Inconel alloys, using Bently Nevada’s published material correction factors — extending applicability to compressor shafts and high-temperature turbine rotors without probe replacement.
