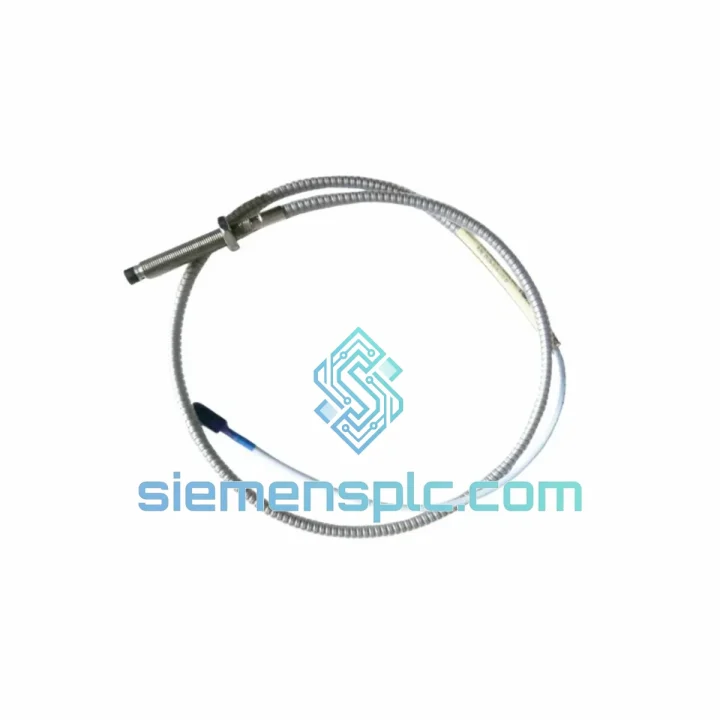

Bently Nevada 330104-00-04-10-02-05 Proximity Transducer System

330104-00-04-10-02-05 In Stock — Every Hour of Downtime Costs You More Than This Module

Your compressor train is down. The control room is showing a Proximitor fault on the radial channel. Maintenance is standing by. The shift supervisor is on the phone. You already know what you need — a verified, ready-to-ship Bently Nevada 330104-00-04-10-02-05 proximity transducer system, in your hands before the next production window closes.

We stock this exact part number. No lead-time games, no “check back in two weeks.” If you’re reading this during an active outage, stop scrolling and contact us now.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on 3300 XL systems teach you the same lessons repeatedly. Here’s what actually matters when you’re swapping this module under pressure:

Fault Code Interpretation Before You Pull the Probe

Before condemning the transducer, verify the fault source. A Not OK (NOK) LED on the Proximitor driver does not automatically mean the probe is dead. Work through this sequence:

• Check the DC gap voltage at the driver output. For a 330104 system, the nominal gap voltage at 50 mil (1.27 mm) clearance is approximately −10.4 VDC. If you’re reading −24 VDC (rail voltage), the probe tip is out of range or the cable is open. If you’re reading 0 VDC, suspect a short in the extension cable or probe body.
• Disconnect the extension cable at the driver and measure resistance from the center conductor to shield. An open circuit (>1 MΩ) confirms cable or probe failure. A dead short (<1 Ω) points to a crushed cable or flooded probe.
• Inspect the probe tip for mechanical contact marks. A single rub event can fracture the ferrite core inside the probe body — the housing looks intact but the output is gone.

Replacement Procedure — Field Checklist

• Match the system configuration: The 330104-00-04-10-02-05 part number encodes probe length, cable length, and driver type. Confirm all suffix digits match your existing installation before ordering. Substituting a different cable length changes the system sensitivity and will require monitor recalibration.
• Gap setting on installation: Set the probe gap to the manufacturer-specified nominal — typically 50 mil (1.27 mm) for standard 3300 XL installations. Use a non-ferrous feeler gauge or the driver’s DC output voltage as your reference. Do not rely on mechanical feel alone.
• Cable routing: Keep the extension cable away from high-voltage conductors and variable-frequency drive output cables. Induced noise on the coaxial shield will appear as a broadband vibration floor increase on the monitor — a common false alarm source after a probe swap.
• Driver power-up sequence: Apply power to the driver before connecting the probe. This prevents a momentary voltage spike on the output that can trigger a spurious alarm in the 3500 rack during hot-swap scenarios.
• Verify system OK status: After installation, confirm the Proximitor OK relay is energized and the gap voltage is within the linear range (−10 to −18 VDC for most 3300 XL configurations). Log the as-found gap voltage for your maintenance records.
• Target material check: If the shaft material is not AISI 4140 (e.g., Inconel 718, 17-4 PH stainless, or titanium alloy), the standard 200 mV/mil calibration does not apply. A material correction factor must be entered in the monitor, or a material-specific calibration kit must be used. Skipping this step produces systematic measurement error that will not trigger a fault but will give you wrong vibration amplitude readings.

Common Failure Modes on 3300 XL Proximity Systems

• Intermittent NOK trips: Usually a cracked solder joint at the probe connector or a pinched extension cable at a conduit fitting. Flex the cable while monitoring the DC output — if the voltage fluctuates, you’ve found the fault location.
• High vibration floor after maintenance: Almost always cable routing or grounding. Verify the shield is grounded at the driver end only — grounding at both ends creates a ground loop that couples 50/60 Hz noise directly into the measurement.
• Slow drift in gap voltage over months: Thermal cycling causes the probe mounting bracket to creep. Re-gap the probe during the next planned outage. If drift is rapid, check for shaft thermal growth that wasn’t accounted for in the original installation design.
• Sudden full-scale output: Probe tip has contacted the shaft. Inspect the shaft surface for a witness mark and the probe tip for damage. Do not reinstall a contacted probe — the ferrite core is compromised.

Reliability in Harsh Conditions

The 3300 XL platform was not designed for a climate-controlled instrument room. It was designed for the bearing housing of a 40 MW steam turbine running at 3,600 RPM in a coastal petrochemical plant. The 330104-00-04-10-02-05 reflects that design philosophy throughout.

The probe body is constructed from 316 stainless steel with a hermetically sealed tip assembly. The internal ferrite core and coil winding are encapsulated in a thermally stable compound that maintains dimensional integrity from arctic cold-start conditions (−35°C) through sustained high-temperature operation at bearing housings that routinely see 110–120°C surface temperatures. The probe cable jacket is rated for continuous oil immersion and resists degradation from the lubricating oil additives, steam condensate, and cleaning solvents common in turbomachinery environments.

Vibration immunity is a non-negotiable requirement for a sensor mounted directly to rotating machinery. The 3300 XL probe assembly is qualified to withstand the broadband mechanical vibration present at bearing housings — including the resonant frequencies of the probe mounting bracket itself. The coaxial cable construction provides inherent rejection of electromagnetic interference from nearby motor windings, bus bars, and RF sources.

In offshore and marine applications where salt fog and humidity are constant factors, the sealed probe body prevents moisture ingress that would otherwise detune the eddy-current coil and shift the system calibration. Units stored in our Xiamen warehouse are maintained in controlled-humidity conditions with moisture-barrier packaging to preserve this integrity through transit.

Global Express Logistics

Downtime doesn’t wait for standard freight schedules. Our logistics process is built around that reality.

Stock is held at our Xiamen facility, positioned for direct access to Xiamen Gaoqi International Airport (XMN) — a primary hub for DHL Express and FedEx International Priority services. For urgent orders confirmed before 14:00 CST, same-day handover to the carrier is standard. Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Australia & New Zealand: 3–4 business days via DHL Express

Every shipment includes a full commercial invoice, packing list, and certificate of origin. For customers requiring customs pre-clearance documentation, HS code classification support, or end-user certificates for controlled-destination shipments, our export team handles the paperwork — you focus on getting your plant back online.

Packaging is engineered for the part: anti-static inner wrap, rigid foam insert sized to the probe geometry, and an outer carton rated for the drop and compression loads of international air freight handling. The probe tip — the most mechanically vulnerable point — is protected by a dedicated tip cap that remains in place until installation.

Contact Information

Plant down. Clock running. Here’s how to reach us directly — no ticket queues, no automated responses:

📧 Email: [email protected]
📱 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com

Provide your part number, required quantity, and destination country. We’ll confirm stock availability and issue a quotation within the hour during business hours.
