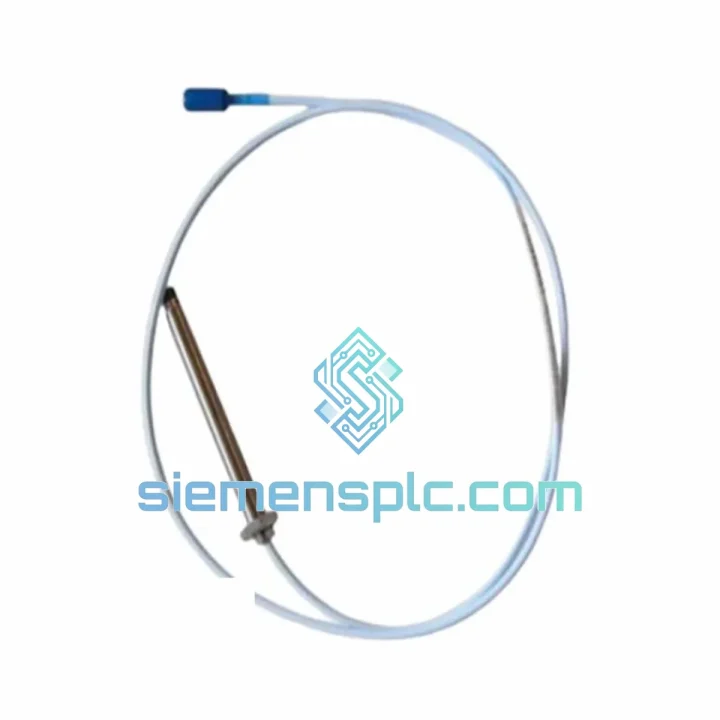

Bently Nevada 330104-00-08-05-02-00 Proximity Probe

330104-00-08-05-02-00 — Machine Down? This Probe Ships Today. Every Hour Costs You.

You already know the number. Your rotating equipment is offline, the 3500 rack is flagging a channel fault, and the operations team is standing behind you waiting for an ETA. The Bently Nevada 330104-00-08-05-02-00 is an 8 mm eddy-current proximity probe from the 3300 XL Transducer System — factory-terminated with a 5-metre integral cable, API 670 compliant, and stocked in Xiamen for same-day dispatch. This is not a lead-time item. It moves when you confirm the order.

We have seen what a 12-hour delay on a probe replacement costs a compressor train in a refinery. We built our inventory and logistics model specifically to eliminate that delay. If you are reading this page, you are probably already past the point of waiting — so let’s get this resolved.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

These are the failure modes and swap mistakes that actually cause problems in the field — not the ones in the manual.

Step 1 — Isolate the fault before pulling the probe. At the Proximitor output terminal, measure DC voltage. A correctly gapped 8 mm probe at 50 mil should read –10 VDC. Reading –24 VDC means open circuit — cable break or probe coil failure. Reading 0 VDC means a short. Disconnect the extension cable at the Proximitor and re-measure. If voltage recovers, the fault is in the field wiring or probe, not the driver. This single check prevents unnecessary Proximitor replacements and saves you from pulling a healthy driver out of a live rack.

Step 2 — Total cable length is a calibration variable, not just a physical dimension. The 330104-00-08-05-02-00 carries a 5 m integral cable. If your system was originally configured with a 5 m probe and a 5 m extension (10 m total), and you replace the extension with a 9 m cable, your total system length changes to 14 m. The Proximitor is tuned to a specific total cable length — changing it shifts the scale factor and bias voltage. Match the original total length exactly. If you cannot, re-gap and verify scale factor against a known reference before returning the machine to service.

Step 3 — Re-gap every time, even on a like-for-like swap. Thread engagement depth varies between probe units. The previous probe’s gap setting is not transferable. Target gap for the 330104 8 mm probe is 50 mil (1.27 mm), corresponding to –10 VDC output at the Proximitor. Use a calibrated gap tool or feeler gauge. Verify with the machine stationary before startup.

Step 4 — Target material correction. The 330104 is factory-calibrated for AISI 4140 steel. If your shaft is 316 stainless, Inconel, or titanium, the eddy-current response will differ — scale factor error can reach 20–30% on non-standard targets. If you are replacing a probe on a non-standard shaft material, request a target material correction factor from Bently Nevada or validate output against a known displacement reference before sign-off.

Common fault codes after replacement on a 3500 rack:

• Not OK / Channel Fault: Probe outside linear range, or wiring error at Proximitor terminal block. Verify gap voltage first — this resolves 80% of post-swap Not OK faults.
• Bypass still active after swap: The channel was placed in bypass during maintenance and not cleared. Confirm bypass status in 3500 rack configuration software before returning to normal monitoring.
• Immediate high vibration alarm on startup: Probe tip contact with the shaft. A probe touching the shaft reads full-scale and will trip the machine. Verify physical clearance with the shaft stationary before energising the system.
• Intermittent signal or noise on trend data: Inspect the integral cable at the probe entry point — this is the highest mechanical stress location and the most common site of insulation breakdown. Flex the cable gently while watching the output voltage. Any voltage spike confirms cable damage at that point.
• Hazardous area compliance: If the installation is Zone 1 / Division 1, confirm the replacement probe carries the same ATEX/FM approval code as the original before installation. The 330104-00-08-05-02-00 carries standard approvals — verify against your area classification documentation.

Reliability in Harsh Conditions

The 3300 XL platform was not designed for a clean instrument room. It was designed for the bearing housing of a high-speed gas turbine in a tropical offshore environment, or a cracked gas compressor in a refinery where ambient temperatures exceed 60 °C and the atmosphere carries corrosive process vapours. The 330104-00-08-05-02-00 is built to that standard.

The probe body is 316 stainless steel. The tip housing is PEEK — polyether ether ketone — a semi-crystalline thermoplastic that maintains dimensional stability and dielectric properties from cryogenic temperatures up to +177 °C. It does not absorb moisture, does not swell in hydrocarbon environments, and does not creep under sustained mechanical load. The integral cable uses a fluoropolymer jacket with documented resistance to oils, solvents, steam, and cleaning agents. The coaxial connector is sealed against moisture ingress at the probe end.

Vibration resistance is a functional requirement for this probe, not a specification line item. The probe is mounted directly to rotating machinery housings that transmit broadband vibration across the full operating speed range. The rigid stainless body and threaded mounting arrangement eliminate resonance at typical machinery operating frequencies. Field installations across petrochemical, LNG, and power generation sites consistently report MTBF figures exceeding 10 years in continuous service — not because the probe is over-engineered, but because the design has no unnecessary complexity to fail.

Units in our Xiamen warehouse are stored in climate-controlled conditions with desiccant packaging. Connector integrity is preserved from the moment the unit leaves the factory until it arrives at your site. We do not store probes in ambient warehouse conditions where humidity cycling degrades the connector interface over time.

Global Express Logistics

Our fulfilment operation is built around a single constraint: your machine cannot wait for a slow shipment. Stock is held at our Xiamen facility with direct access to Xiamen Gaoqi International Airport (XMN) — a primary DHL and FedEx gateway with daily freighter connections to Singapore, Dubai, Amsterdam, and Louisville.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Kuala Lumpur, Bangkok, Jakarta): DHL Express — 1–2 business days
• Middle East (Dubai, Dammam, Doha, Kuwait City): FedEx International Priority — 2–3 business days
• Europe (Rotterdam, Hamburg, Milan, Madrid): DHL Express — 3–4 business days
• North America (Houston, Los Angeles, Calgary): FedEx IP — 3–5 business days
• Australia & New Zealand: DHL Express — 3–4 business days

Every shipment includes a commercial invoice, packing list, and certificate of origin. HS code classification is handled by our logistics team — your shipment will not stall at customs because of a documentation error on our side. For orders requiring ATEX or FM certification copies, these are included in the shipment package as standard practice.

Payment confirmation triggers same-day pick, pack, and carrier handover. Orders confirmed before 14:00 CST ship the same day. We do not batch urgent orders into consolidated freight — each order moves independently. Real-time tracking numbers are provided at dispatch, and our team monitors active shipments for any customs or transit delays.
