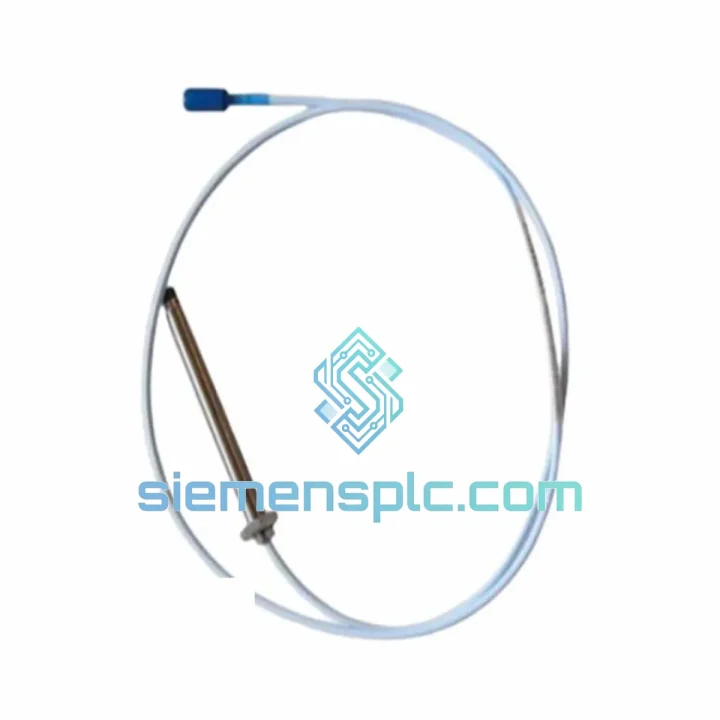

Bently Nevada 330104-12-20-10-01-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330104-12-20-10-01-00 — Eddy-Current Gap Sensing in Turbomachinery Shaft Protection Architectures

The Bently Nevada 330104-12-20-10-01-00 is an 8 mm diameter eddy-current proximity transducer within the 3300 XL Proximity Transducer System. It occupies the field-sensing layer of a turbomachinery protection signal chain, converting the physical air gap between its tip and a rotating conductive target into a proportional DC voltage. This voltage is conditioned by a matched Proximitor driver and routed to a Bently Nevada 3500 Series monitoring rack for alarm evaluation and trip actuation. The part number suffix structure is operationally significant: integral cable 1.2 m (−12), extension cable 2.0 m (−20), standard mounting thread (−10), non-armored polyurethane jacket (−01), and standard AISI 4140 steel calibration (−00). Each digit encodes a physical or calibration attribute that must match the Proximitor driver’s internal compensation curve for the system to meet its published ±1% linearity specification.

In continuous rotating machinery protection, the transducer provides wear-free measurement of radial journal vibration and axial thrust position. Output sensitivity of 7.87 V/mm (200 mV/mil) across a calibrated linear range of 0.25 mm to 2.54 mm delivers resolution sufficient to detect sub-micron displacement changes associated with early-stage bearing degradation, rotor instability, or developing rub conditions. The flat frequency response from DC to 10,000 Hz captures the full vibration spectrum relevant to rotating equipment — from slow-roll eccentricity at sub-synchronous frequencies through fundamental unbalance (1×), misalignment harmonics (2×), and high-order blade-pass or gear-mesh events — within a single sensor channel.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330104-12-20-10-01-00 operates on high-frequency electromagnetic induction. An oscillator circuit inside the matched Proximitor driver energizes the probe coil at a carrier frequency in the 500 kHz to 2 MHz range. When the conductive target surface enters the probe’s electromagnetic field, eddy currents are induced on the target surface, increasing the effective resistive loading on the oscillator and reducing the coil’s Q-factor. The Proximitor demodulates this impedance variation into a DC voltage output linearly proportional to the probe-to-target gap. Because the measurement relies entirely on electromagnetic coupling, there is no mechanical contact, no friction, and no hysteresis — characteristics that are structurally unachievable with LVDT or contact-type displacement sensors.

EMC Shielding Architecture: The probe body and integral cable use a coaxial construction in which the outer conductor simultaneously serves as the signal return path and the electromagnetic shield. The shield is grounded at the Proximitor end only, implementing a single-point grounding topology that eliminates ground loop currents while providing effective rejection of radiated interference from variable-frequency drives, high-current switchgear, and bus bars typical of turbomachinery installations. The high carrier frequency of the oscillator further attenuates low-frequency industrial noise sources that would otherwise couple into the measurement signal.

Thermal Dimensional Stability: The probe tip assembly uses a ceramic-filled epoxy compound with a coefficient of thermal expansion (CTE) selected to match the stainless steel housing. This material pairing minimizes thermally induced dimensional changes at the coil-to-tip interface across the full −35°C to +177°C probe tip operating range. The probe maintains its factory calibration accuracy through normal thermal cycling in high-temperature bearing housings and steam turbine pedestals without requiring field recalibration between maintenance intervals.

Matched-Set Calibration Logic: The suffix digits −12 and −20 encode the integral cable length (1.2 m) and extension cable length (2.0 m) respectively. The Proximitor’s internal calibration curve is factory-trimmed to compensate for the distributed capacitance and inductance of this specific cable length combination. Substituting a probe or extension cable of a different length without recalibrating the Proximitor introduces a systematic offset in the voltage-to-gap transfer function. This offset is proportional to the cable length deviation and may not trigger immediate alarm conditions, making it a latent accuracy risk detectable only through periodic calibration verification against a known gap standard.

Target Material Dependency: The standard −00 calibration suffix designates AISI 4140 steel as the reference target material. Targets fabricated from austenitic stainless steels (e.g., 316L), titanium alloys, or non-ferrous materials exhibit different eddy-current penetration depths and resistivity values, shifting the effective sensitivity from the nominal 7.87 V/mm. For non-standard target materials, Bently Nevada offers alternative calibration suffixes. Deploying a standard-calibration probe against a non-standard target without applying a material correction factor introduces a proportional measurement error that accumulates across the full linear range.

System Integration Benefits

• Sub-millisecond API 670 Trip Response: The probe’s DC-coupled analog output feeds directly into the 3500 rack’s hardware comparator logic, enabling trip actuation with latency below 1 ms — satisfying API 670 requirements without dependence on software scan cycles or fieldbus polling intervals.
• Zero Wear Degradation Over Service Life: Non-contact eddy-current sensing removes all friction-based degradation mechanisms from the measurement chain. There are no contact surfaces, no lubricant requirements, and no mechanical fatigue paths, resulting in MTBF values measured in decades under normal operating conditions.
• Full-Spectrum Vibration Coverage in a Single Channel: The DC to 10,000 Hz bandwidth captures sub-synchronous instability, synchronous unbalance, super-synchronous harmonics, and high-frequency structural resonances within one sensor channel, eliminating the need for parallel accelerometer channels to cover the upper frequency range.
• Rotor Orbit Reconstruction for Fault-Mode Discrimination: Two probes installed at 90° in the same bearing plane provide orthogonal X-Y displacement vectors. The 3500 rack combines these signals to reconstruct the rotor orbit in real time, enabling discrimination between oil whirl, partial rub, and shaft bow — fault modes that are indistinguishable from single-axis vibration amplitude alone.
• Continuous Self-Diagnostic Bias Monitoring: The Proximitor outputs a DC bias voltage (nominally −10 VDC at the calibrated center gap) that functions as a continuous health indicator. Deviation of this bias outside the expected window indicates probe gap drift, coaxial cable damage, or target surface degradation, providing diagnostic transparency without interrupting the protection function.
• Hazardous Area Deployment Capability: ATEX and IECEx certifications support installation in Zone 1 and Zone 2 explosive atmospheres, covering the majority of oil and gas processing environments where gas turbines, compressors, and steam turbines are installed.
• Native Compatibility with 3500 I/O Modules: The probe signal is natively compatible with the 3500/40M, 3500/42M, 3500/45, and 3500/46M Proximitor I/O modules. No impedance matching networks, signal conditioners, or adapter cables are required, reducing wiring complexity and eliminating additional failure points in the signal path.
• Axial Thrust Position Monitoring: Beyond radial vibration, the same probe model supports axial thrust position measurement when mounted in the thrust bearing plane, allowing a single transducer type to serve both protection functions and reducing spare parts inventory complexity.
• Stable Long-Term Calibration Without Field Adjustment: Factory-matched ±1% linearity is maintained across the full measurement range for the service life of the probe assembly, reducing calibration interval costs and minimizing the risk of undetected measurement drift between scheduled maintenance outages.

Quality Assurance & Global Logistics

Each 330104-12-20-10-01-00 unit dispatched from siemensplc.com is sourced through verified industrial supply channels with full documentation traceability. Pre-shipment inspection covers probe tip and connector visual integrity, coaxial cable continuity and shield resistance verification, and part number label cross-check against the order specification. Original manufacturer packaging is preserved where available. A certificate of conformance accompanies each unit, and a commercial invoice with country of origin declaration is prepared for every shipment to support customs clearance procedures.

Counterfeit proximity transducers represent a documented risk in the industrial automation aftermarket, particularly for high-demand Bently Nevada part numbers. Our procurement process excludes grey-market and unverified broker sources. All units are supported by documentation sufficient to satisfy incoming inspection requirements at your facility.

Logistics operations are based in Xiamen, China, with DHL Express and FedEx International Priority as primary export carriers. In-stock units are dispatched within 2–3 business days of confirmed order. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. For plant shutdown or emergency replacement scenarios, expedited same-day dispatch is available upon request and order confirmation before the daily carrier cutoff. A 12-month warranty against manufacturing defects applies to all units. Verified defects are resolved by replacement or refund, with return of the defective unit waived in most cases to minimize impact on your maintenance schedule.
