Bently Nevada 330130-040-02-00 Extension Cable

330130-040-02-00 Extension Cable Down? Every Minute of Blind Monitoring Costs You Money — We Ship Today

You already know what happens when this cable fails. The Proximitor® loses its signal path. Vibration data on your turbine or compressor goes dark. Your DCS throws a “Not OK” on the transducer channel. Operations wants answers. Maintenance is scrambling. And somewhere upstream, a procurement manager is being asked why there’s no spare on the shelf.

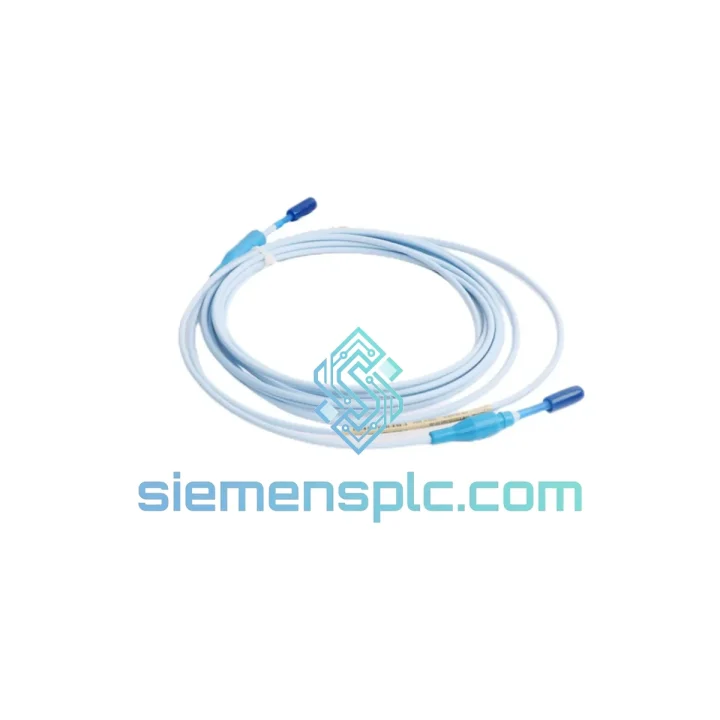

The Bently Nevada 330130-040-02-00 is a 40-inch (approximately 1 meter) extension cable for the 3300 Series proximity transducer system — the signal bridge between your proximity probe and the Proximitor® sensor. It is not a generic cable. It is a precision-impedance-matched interconnect that keeps your eddy-current measurement chain intact. When it fails or gets damaged, you do not substitute. You replace with the exact part number. We have it. We ship from Xiamen.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure modes for the 330130-040-02-00:

1. Connector corrosion or mechanical damage. The coaxial connectors at both ends are the most vulnerable point. In humid or chemically aggressive environments — compressor halls, offshore platforms, wet gas service — the connector body oxidizes and the center pin loses contact integrity. Symptom: intermittent “Not OK” on the Proximitor® output, or a DC gap voltage that drifts outside the -10 to -18 VDC window without any change in rotor position. Pull the cable, inspect both connectors under magnification. If you see green oxidation or a bent center pin, the cable is the culprit.

2. Cable jacket abrasion leading to shield breach. Extension cables routed through cable trays alongside high-voltage power cables are susceptible to jacket wear. A breached shield introduces 50/60 Hz noise into the measurement chain. You will see this as a fixed-frequency spike on your vibration spectrum — not a real machine fault, but it will trigger alarms and erode operator confidence in the monitoring system. Replacement is the only fix; field repair of the shield is not acceptable for API 670 applications.

3. Impedance mismatch from wrong cable substitution. This is the most dangerous failure mode because it is silent. If a technician substitutes a generic coaxial cable during an emergency, the system may appear to function, but the gap voltage calibration curve shifts. Your Proximitor® is now reporting incorrect displacement values. You will not catch this without a full system calibration check using a Bently Nevada calibration fixture. Always replace with the exact 330130-040-02-00.

Replacement procedure checklist:

• De-energize the Proximitor® sensor before disconnecting the extension cable. The -24 VDC supply to the Proximitor® must be off.
• Label both ends of the old cable before removal — probe end and Proximitor® end. Polarity matters on the coaxial connector; do not reverse.
• Inspect the probe-side connector on the armored probe cable (330105 or 330175 series) for damage before installing the new extension. A damaged probe connector will destroy a new extension cable within weeks.
• After installation, verify DC gap voltage at the Proximitor® output. For a standard 3300 XL system with a 5 mm probe at mid-gap, you should read approximately -10 to -12 VDC. If the reading is outside -10 to -18 VDC, do not return the machine to service — recheck all connections and probe gap setting.
• No firmware changes, no DIP switch adjustments, and no rack reconfiguration are required for a like-for-like cable replacement. The 330130-040-02-00 is a passive component.
• Log the replacement in your CMMS with the new cable’s traceability documentation. API 670 audits will ask for it.

Reliability in Harsh Conditions

The 3300 Series transducer system was designed for the worst environments rotating machinery operates in — and the 330130-040-02-00 extension cable is built to the same standard. The cable jacket is rated for continuous exposure to the thermal cycling typical of turbine bearing housings, where temperatures swing from ambient cold starts to sustained elevated operating temperatures. The shielding construction suppresses electromagnetic interference from adjacent motor drives, transformers, and high-current bus bars that share cable trays in most plant installations.

Mechanical vibration is a constant in any rotating machinery environment. The cable assembly is designed to withstand the low-frequency, high-amplitude vibration transmitted through machine structures without connector loosening or internal conductor fatigue. In offshore and coastal installations, the materials resist salt-laden humid air that degrades standard industrial cables within months.

Bently Nevada’s manufacturing process for the 3300 Series transducer components includes 100% electrical testing of each cable assembly before shipment. Every unit we supply has passed that factory acceptance test. We do not supply refurbished, repaired, or repackaged cables as new. What you receive is what left the Bently Nevada production line.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. For critical spare parts, we default to air freight.

Standard export process:

• Order confirmation to dispatch: Same business day for in-stock items confirmed before 14:00 CST.
• Carrier options: DHL Express, FedEx International Priority, UPS Worldwide Express. Carrier selection based on destination and urgency.
• Transit times: Southeast Asia 1–2 days. Middle East and Europe 2–3 days. Americas 3–4 days. Remote destinations may vary.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for every shipment. CITES, dual-use, and EAR99 classification confirmed — no export license required for this part.
• Customs value declaration: Accurate and compliant. We do not undervalue shipments. This protects you from customs holds that would defeat the purpose of express shipping.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement contact.
• Emergency freight: For genuine plant-down situations, contact us via WhatsApp for same-day courier options and hand-carry arrangements where available.

We have shipped Bently Nevada components to oil and gas facilities in the Middle East, power plants in Southeast Asia, petrochemical complexes in Europe, and mining operations in South America. The logistics process is not new to us. Your parts arrive with the documentation your receiving department needs to clear them immediately.
