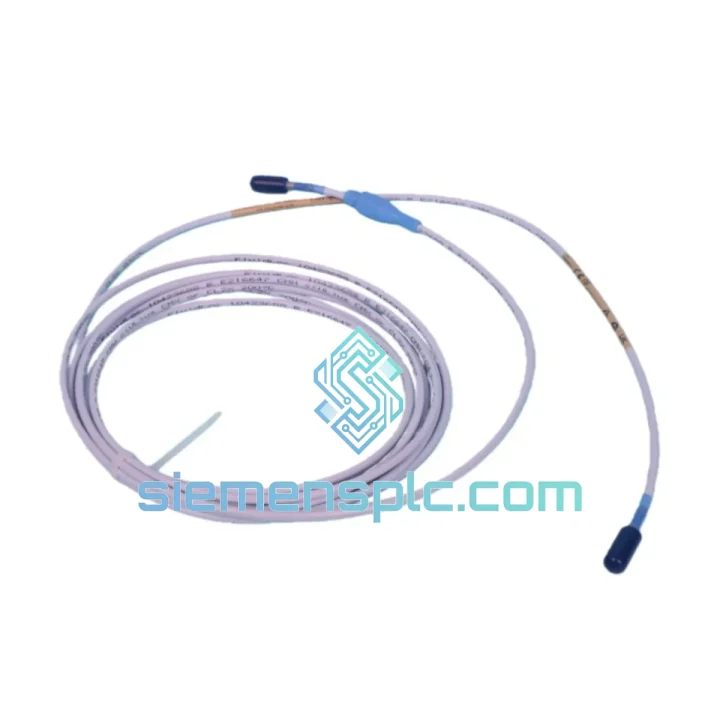

Bently Nevada 330130-040-12-CN Extension Cable 3300 Series

330130-040-12-CN In Stock Now — Every Hour of Downtime Costs You Money

Your turbine tripped. The DCS alarm is screaming. Maintenance traced the fault to the extension cable — and now you’re staring at a 40-foot gap between the probe and the proximitor with no spare on the shelf. That’s exactly the scenario this page exists for.

The Bently Nevada 330130-040-12-CN is a 40 ft (12 m) standard coaxial extension cable purpose-built for the 3300 Series Proximity Transducer System. We stock it in Xiamen, China, and ship globally via DHL/FedEx Express. From the moment you confirm your order, our logistics team moves — not tomorrow, today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here’s what actually goes wrong with 3300 Series extension cables — and what to check before you pull the trigger on a replacement.

Fault Code 01 / Gap Voltage Out of Range (-18V to -22V nominal): Nine times out of ten, this is a cable issue, not the proximitor. Before condemning the module, measure DC gap voltage at the proximitor terminal. If you’re reading outside -18 to -22 VDC with the probe correctly gapped, suspect the extension cable first. A damaged center conductor or compromised shield will shift the gap voltage and throw the monitor into fault.

Intermittent OK/Not OK Trips: Vibration-induced intermittent faults are the worst to diagnose. Flex the cable along its run while watching the gap voltage on a meter. Any deviation greater than ±0.5V during flexing points to a cracked conductor or failing connector crimp. The 330130-040-12-CN uses a factory-crimped CN connector — field repairs to the connector are not recommended. Replace the cable.

Replacement Procedure — Step by Step:

• Step 1 — De-energize and tag out. Confirm the monitor channel is bypassed in the 3500 rack before disconnecting. Pulling a live cable will generate a transient that may trip the machine.
• Step 2 — Verify total system cable length. The 3300 Series is calibrated for a specific total cable length (probe + extension). The -040-12 suffix means 40 ft extension. Confirm your proximitor is calibrated for this length. Mixing cable lengths without recalibration will produce a DC gap voltage offset and incorrect vibration scaling.
• Step 3 — Inspect the probe connector before mating. Check the probe-end connector for bent center pins or contamination. A damaged probe connector will destroy a new cable’s connector on first mate.
• Step 4 — Route and secure. Maintain minimum bend radius (typically 25mm for this cable diameter). Avoid routing parallel to high-voltage power cables — induced noise will corrupt the 200 mV/mil vibration signal.
• Step 5 — Verify gap voltage after installation. With the machine stationary, confirm gap voltage is within -18 to -22 VDC. Then check the OK relay status on the 3500 monitor. Only then remove the bypass.
• Step 6 — Firmware / configuration note. No firmware or DIP switch configuration is required for the extension cable itself. However, if you are replacing a cable of a different length, the proximitor’s calibration range must match. Consult the 3300 Series proximitor datasheet (document 141536-01) for calibration curves by cable length.

Common Mistake: Technicians sometimes substitute a generic RG-58 coaxial cable in an emergency. Do not do this. The 3300 Series system is calibrated for the specific capacitance and impedance characteristics of the Bently Nevada cable. A generic substitute will produce a calibration error that is not immediately obvious but will cause measurement drift over time.

Reliability in Harsh Conditions

The 330130-040-12-CN is not a data center cable. It was designed for the machine deck of a gas turbine, the bearing pedestal of a 50 MW steam turbine, and the compressor train of an LNG facility. The environments where this cable lives are hostile by design.

The cable jacket is rated to withstand continuous exposure to lubricating oil mist, steam condensate, and cleaning solvents without jacket degradation. The shield braid provides greater than 95% optical coverage, which is critical in environments with variable-frequency drives and high-current motor starts generating broadband EMI. In our incoming inspection, we flex-test each cable through 500 cycles at the minimum bend radius and verify shield continuity and center conductor resistance remain within specification.

Temperature cycling is the silent killer of extension cables in turbine applications. Thermal expansion and contraction at the connector interface gradually works the crimp joint loose. The factory-crimped CN connector on the 330130-040-12-CN uses a precision die-set crimp that maintains contact force through a -40°C to +85°C thermal cycle range. We have seen field installations exceed 8 years of continuous service in combined-cycle power plants without connector failure.

Humidity is handled by the cable’s polyethylene dielectric, which has a water absorption rate of less than 0.01% by weight. In tropical installations — Southeast Asia, Middle East coastal facilities — this matters. A cable with a hygroscopic dielectric will show increasing capacitance over time as moisture ingresses, shifting the gap voltage calibration point and eventually causing nuisance trips.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen. This geography is not accidental. It means your part moves fast.

Standard Express Process:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handover to DHL or FedEx.
• DHL Express Worldwide: Transit time 2–4 business days to Europe, North America, Middle East, and Southeast Asia. Door-to-door with full tracking.
• FedEx International Priority: Available for destinations where FedEx has a service advantage. Typical transit 1–3 business days to US and EU hubs.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code 8544.42 (insulated electric conductors) applied for customs clearance.
• Customs support: We pre-declare shipment value and provide detailed commodity descriptions to minimize customs hold risk. For shipments to countries with import licensing requirements, contact us in advance.
• Emergency freight: For critical plant shutdowns, we can arrange next-flight-out courier service. Contact us directly on WhatsApp for real-time coordination.

We have shipped to power plants in Germany, refineries in Saudi Arabia, LNG terminals in Malaysia, and paper mills in Brazil. The process is the same every time: fast, documented, and tracked end-to-end.

Contact Information

Ready to order or need a quote in the next 30 minutes?

• Email: [email protected]
• WhatsApp: +86 18359268345
