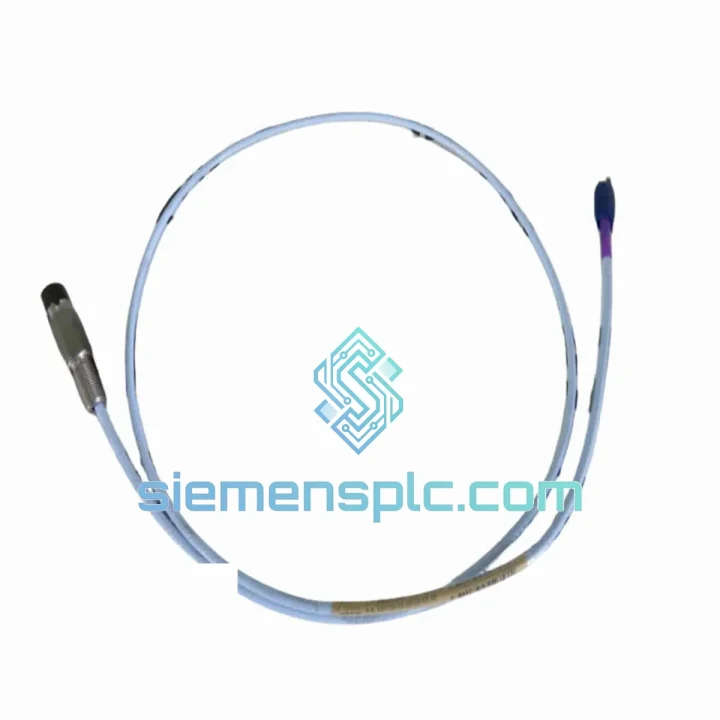

Bently Nevada 330130-045-01-CN Extension Cable

330130-045-01-CN Down? Every Minute of Vibration Blindness Costs You — We Ship Same Day

A failed extension cable in a Bently Nevada 3300 proximity transducer loop doesn’t just trigger a fault alarm — it blinds your entire vibration protection chain. Turbines, compressors, and critical rotating assets run unprotected. Your DCS throws spurious trips. Operations is breathing down your neck. You need the 330130-045-01-CN on-site before the next shift, not in three weeks.

We stock the Bently Nevada 330130-045-01-CN in Xiamen and ship globally via DHL Express and FedEx International Priority. Order confirmed before 15:00 CST ships the same business day. No minimum order. No bureaucratic lead-time games.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery protection systems, here’s what actually goes wrong with the 330130-045-01-CN and what to check before you condemn the cable:

Fault Code: High Gap Voltage / Probe Not OK
If your 3500 monitor is throwing a “Not OK” on the proximity channel and gap voltage is reading outside the -10 to -18 VDC window, don’t immediately blame the probe. The extension cable is the most mechanically stressed component in the loop — connector corrosion, jacket abrasion at conduit entry points, and micro-fractures from vibration fatigue are the top three failure modes. Disconnect the extension cable at both ends and measure DC resistance end-to-end. Anything above 2 Ω on the center conductor or measurable resistance on the shield-to-conductor path means the cable is compromised.

Total System Cable Length — Critical Configuration Check
The 3300 proximitor driver is calibrated for a specific total cable length: probe cable + extension cable combined. The 330130-045-01-CN adds 4.5 m to your loop. Before installation, verify your proximitor’s calibration range. Standard 3300 drivers are calibrated for 5 m, 9 m, or 15 m total. If you’re swapping a different-length cable, the driver’s output scale factor shifts — your gap voltage and sensitivity will be off, and you’ll get false vibration readings. Recalibrate or replace the driver to match the new total length.

Connector Seating — The Overlooked Step
The MIL-spec coaxial connectors on the 330130-045-01-CN are finger-tight by design, but in high-vibration environments they back off. After installation, apply a small amount of thread-locking compound (non-permanent grade) to the connector threads and verify the connection is fully seated. A partially seated connector introduces impedance discontinuity that shows up as noise on the vibration signal — often misdiagnosed as a bearing defect.

Replacement Procedure (Field-Expedient)

• De-energize the proximitor driver at the monitor rack — do not just disconnect at the probe end while powered. The driver output is a live DC bias circuit.
• Label both ends of the existing cable before removal. Photograph the routing path.
• Inspect the probe connector and driver connector for corrosion or mechanical damage before installing the new 330130-045-01-CN.
• Route the new cable following the original path. Avoid sharp bends below 50 mm radius — the armored jacket is stiff and will crack the inner dielectric if forced.
• Torque connectors finger-tight plus 1/4 turn. Do not use pliers.
• Power up the driver and verify gap voltage is within the -10 to -18 VDC window before returning the channel to protection service.
• Log the replacement in your maintenance management system with the new cable’s part number and installation date.

Common Misdiagnosis: Intermittent “Not OK” Alarms
If the channel clears and re-faults without a clear pattern, suspect the extension cable before the probe or driver. Thermal cycling causes the armored jacket to expand and contract, which can intermittently open a micro-fracture in the conductor. This fault is nearly impossible to catch with a static resistance check — it only appears at operating temperature. Replace the cable and monitor for 24 hours before closing the work order.

Reliability in Harsh Conditions

The 330130-045-01-CN is built for environments that destroy ordinary instrumentation cable. The armored jacket provides mechanical protection against impact, abrasion, and rodent damage — a real concern in petrochemical and power generation facilities where cable trays run through areas with maintenance traffic. The EMI shielding is continuous and bonded at both connector ends, which is non-negotiable in environments with large VFDs, switchgear, and high-current bus bars running parallel to instrumentation cable trays.

Operating temperature range of -55°C to +125°C covers everything from outdoor installations in northern climates to hot-section instrumentation on gas turbines. The 50 Ω impedance is maintained across the full temperature range, which means your gap voltage and sensitivity figures don’t drift as the machine heats up from cold start to full load — a critical requirement for accurate vibration trending.

Humidity and condensation are handled by the sealed connector design. In coastal and offshore environments where salt fog is a factor, the MIL-spec connectors outperform standard industrial connectors by a significant margin. We’ve seen original Bently Nevada cables from the 1990s still in service in offshore compressor trains — the construction quality is that robust when properly installed and maintained.

Global Express Logistics

Our Xiamen warehouse operates with a same-day dispatch cutoff of 15:00 CST for in-stock items. Here’s what the logistics chain looks like from the moment you confirm your order:

• Order Confirmation: You receive a proforma invoice within 2 business hours. Payment via T/T bank transfer, PayPal, or credit card.
• Export Documentation: Commercial invoice, packing list, Certificate of Origin, and HS code 8544.42 declaration prepared same day. End-user certificates and import license support available on request.
• Carrier Options: DHL Express (2–4 business days to most destinations), FedEx International Priority (2–3 business days to US/EU), SF International for Southeast Asia (1–3 business days).
• Tracking: Waybill number sent within 4 hours of dispatch. Real-time tracking link provided.
• Customs Clearance: We declare accurate commercial value and HS codes. We do not under-declare for customs purposes — this protects you from import complications.
• Typical Transit Times: Southeast Asia 1–3 days | Middle East 3–5 days | Europe 3–5 days | Americas 4–6 days | Australia 3–5 days.
• Bulk Orders: For 5+ units, sea freight via consolidated container is available with 7–14 day transit to major ports. Volume pricing applies.

If your plant is facing an unplanned shutdown and you need the fastest possible delivery, contact us directly on WhatsApp before placing the online order — we can pre-arrange customs documentation and carrier pickup to shave hours off the process.
