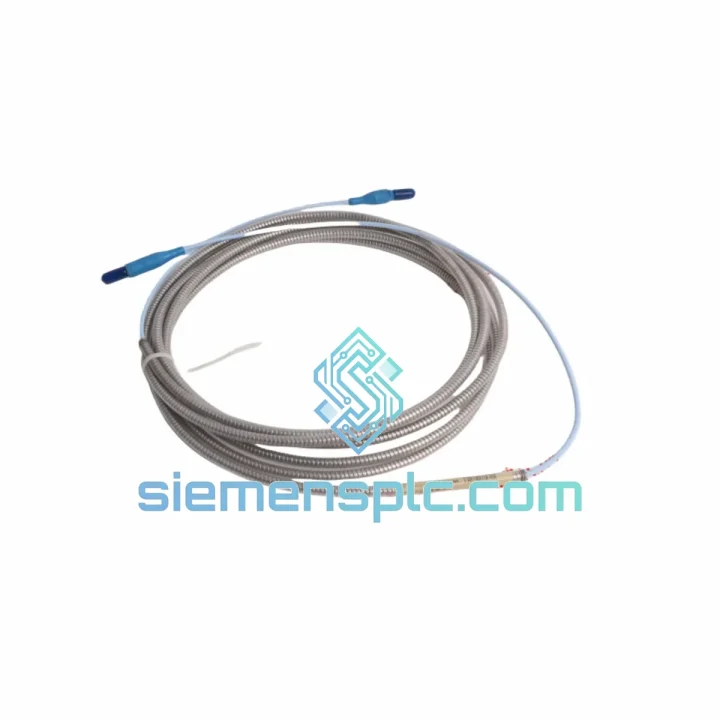

Bently Nevada 330130-045-03-00 Extension Cable

330130-045-03-00 Extension Cable — Stop the Clock on Your Downtime

Every hour a turbine, compressor, or pump sits idle because of a failed proximity cable costs real money — production losses, penalty clauses, emergency labor. The Bently Nevada 330130-045-03-00 is a calibrated 5-meter extension cable purpose-built for the 3300 XL 8mm proximity transducer system. We stock it in Xiamen and ship it the same day your purchase order clears. No broker delays, no grey-market risk, no excuses.

If your vibration monitoring loop just went dark and the DCS is throwing a -18 VDC supply fault or a gap voltage out-of-range alarm, the extension cable is the first component to suspect — especially in environments with mechanical vibration, cable tray abrasion, or repeated thermal cycling. This is the exact OEM part that restores your measurement chain to factory-calibrated accuracy without touching the probe or proximitor configuration.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the cable, confirm the fault is actually in the extension cable and not the probe tip or proximitor. Here is the field diagnostic sequence used on most turbine decks:

Step 1 — Verify gap voltage at the proximitor terminal. With the machine at rest and the probe installed, measure DC voltage between the COM and SIG terminals on the proximitor. Nominal gap voltage for a properly set 8mm probe is –10 VDC ± 1 V. A reading of 0 VDC or –24 VDC (rail) with no probe movement indicates an open or shorted cable, not a probe failure.

Step 2 — Disconnect the extension cable at both ends and measure shield continuity. Use a calibrated LCR meter or a simple DMM. Center conductor resistance across 5 m should be under 2 Ω. Shield-to-center conductor isolation should exceed 10 MΩ. Any deviation points to internal cable damage — abrasion, crush, or connector corrosion.

Step 3 — Check connector seating. The SMA-style coaxial connectors on the 330130 series are susceptible to cross-threading during rushed maintenance. Inspect the mating threads under a flashlight before condemning the cable. A partially seated connector mimics a cable fault on the DCS trend display.

Step 4 — Swap with 330130-045-03-00 and re-verify gap voltage. After installing the replacement cable, do not adjust the probe gap. The 3300 XL system is calibrated as a matched set — probe + cable + proximitor. If gap voltage returns to nominal (–10 VDC ± 1 V) without touching the probe, the cable was the fault. Log the replacement in your CMMS and note the failure mode for the next PM cycle.

Common fault codes associated with extension cable failure:

• OK/NOT OK relay de-energized with no process change — check cable continuity first
• 3500 rack channel fault: GAP HI or GAP LO — open cable drives gap to rail voltage
• Intermittent vibration spikes on trend — partial shield break causing noise injection; cable must be replaced, not re-routed
• –18 VDC supply alarm on proximitor — verify cable is not shorted before replacing the proximitor power supply

Configuration note on cable length: The suffix -045 is not cosmetic. Cable length is a calibrated parameter embedded in the 3300 XL scale factor. Substituting a -090 (9 m) or -015 (1.5 m) cable without recalibrating the proximitor will introduce a systematic measurement error that will not be caught by the OK/NOT OK relay. Always replace with the identical part number.

Reliability in Harsh Conditions

The 330130-045-03-00 was not designed for a clean lab environment. It was designed for the bearing pedestals of gas turbines running at 3,600 RPM in 45°C ambient, for compressor decks where hydrocarbon mist coats every surface, and for pump pits where condensation is a daily reality.

The double-shielded coaxial construction provides two independent layers of EMI/RFI rejection — critical in motor control rooms where variable-frequency drives generate broadband electrical noise that can corrupt vibration signals on single-shielded cables. The outer jacket compound is rated for continuous exposure to petroleum-based fluids, hydraulic oil, and cleaning solvents without swelling or cracking.

Connector bodies are machined from stainless-compatible alloys with gold-plated center pins to resist the galvanic corrosion that develops when dissimilar metals meet in humid, salt-laden offshore environments. The strain relief at each connector end is designed to absorb the micro-vibration transmitted through cable trays on running machinery — the same vibration that work-hardens and fractures the center conductor of inferior cables within 12–18 months of installation.

Thermal cycling performance is validated across the full –55°C to +125°C operating range. In cryogenic LNG applications where ambient temperatures drop well below zero during winter shutdowns, the cable jacket remains flexible and the connector seals maintain their integrity — a failure point for non-OEM cables that use lower-grade elastomers.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international express networks. When your plant is down and every hour counts, here is exactly what happens after your order is confirmed:

• Same-day dispatch for orders confirmed before 15:00 CST. Parts are pulled, inspected, and packed within 2 hours of payment confirmation.
• DHL Express Worldwide delivers to most of Europe, the Middle East, and Southeast Asia within 3–5 business days from Xiamen. Time-definite options (DHL Express 9:00 / 12:00) are available for critical plant shutdowns — contact us before ordering to arrange.
• FedEx International Priority covers North America and Latin America with 2–4 business day transit from Xiamen to major industrial hubs including Houston, Rotterdam, Singapore, and Dubai.
• Commercial invoice and packing list are prepared to HS Code 8544.42 (insulated electric conductors) with accurate declared value to prevent customs holds. We have shipped to refineries, power plants, and offshore platforms across 40+ countries — customs documentation is not an afterthought.
• Tracking number is sent within 4 hours of dispatch. You will have a live shipment link before your shift ends.
• Emergency freight options: For situations where standard express is not fast enough, we can arrange charter courier or hand-carry delivery to select destinations. Contact us directly to discuss.
