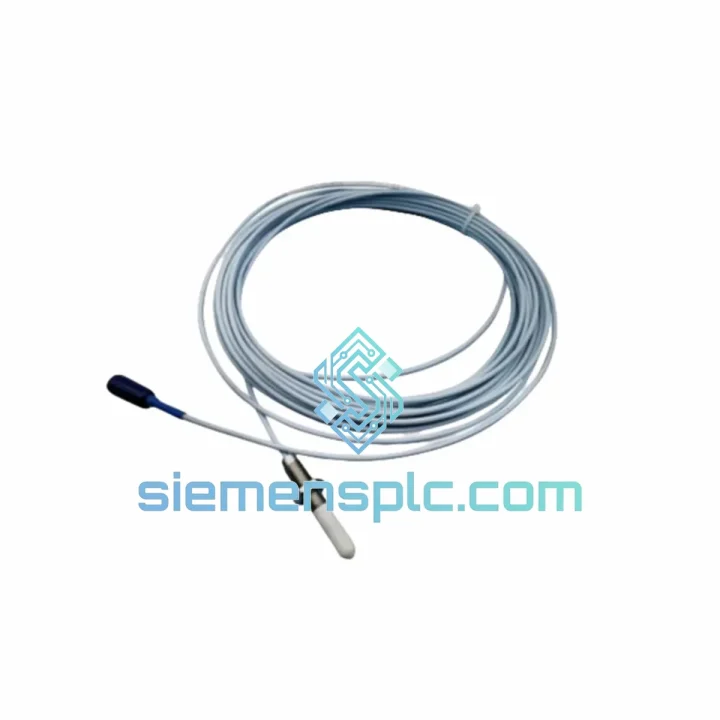

Bently Nevada 330130-045-12-05 Proximity Transducer

Bently Nevada 330130-045-12-05 | Stop the Clock on Unplanned Downtime

Every hour a critical rotating machine sits idle costs your operation real money — in lost production, emergency labor, and contractual penalties. When the proximity transducer in your turbine or compressor protection loop fails, the clock starts immediately. The Bently Nevada 330130-045-12-05 is a stocked, verified, ready-to-ship replacement that gets your 3300 XL 8mm Proximitor system back online without the weeks-long lead time of OEM channels. At siemensplc.com, we maintain physical inventory of hard-to-source Bently Nevada components specifically because we know what a 72-hour shutdown costs a refinery or power plant.

This is not a catalog listing with a 12-week factory order behind it. If you are reading this page because a machine is down or a spare shelf is empty, contact us now — we will confirm stock, issue a proforma invoice, and hand the shipment to DHL or FedEx within one business day.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of field replacements on 3300 XL systems, these are the failure modes and swap pitfalls that actually matter on the job:

Common Failure Indicators

• OK LED extinguished on the Proximitor driver — most often caused by a broken conductor in the integral cable near the probe body, typically from repeated thermal cycling or mechanical vibration at the cable exit point. Flex the cable near the probe tip while monitoring output voltage; a dropout confirms the fault location.
• Output voltage stuck at -24 VDC (rail high) — probe tip is open-circuit. Check for physical damage to the tip or a broken center conductor. Do not assume the driver is faulty before isolating the probe.
• Output voltage stuck at 0 VDC (rail low) — short circuit in the coaxial cable or at the connector. Inspect the MIL-spec connector for moisture ingress or crushed insulation.
• Erratic or noisy output signal — intermittent connector contact at the junction box or driver input. Clean and re-torque all coaxial connections. If noise persists after reseating, suspect a cracked ferrite core inside the probe body.
• 3500 monitor displaying “Not OK” after probe swap — the replacement probe has not been gap-set correctly. The -045 cable length changes the total system cable length; verify the new total (probe cable + extension cable) matches the Proximitor driver’s calibrated range. Recalibrate gap voltage to the midpoint of the linear range (approximately -10 VDC for a 1.25 mm gap on AISI 4140).

Replacement Procedure — Key Steps

• Before removing the old probe, record the existing gap voltage from the 3500 monitor channel display. This is your baseline for re-gapping the replacement.
• Verify the replacement probe tip diameter (8 mm) and cable length designation (“-045”) match the removed unit exactly. Substituting a different cable length without recalculating total system length will shift the scale factor and trigger a monitor alarm.
• When threading the new probe into the bracket, use a calibrated torque wrench — over-torquing the locknut is the single most common cause of premature probe failure in the field. Refer to the Bently Nevada installation drawing for the correct torque value for your bracket material.
• After installation, perform a static gap check with a digital voltmeter at the Proximitor output before re-enabling the monitor channel. Do not rely solely on the 3500 display during initial commissioning.
• If the machine uses a matched probe/extension/driver set with a system calibration certificate, the replacement probe must be re-matched to the existing extension cable and driver, or the entire set replaced together to maintain API 670 traceability.

Reliability in Harsh Conditions

The 3300 XL 8mm probe is not a general-purpose sensor — it was designed from the ground up for the worst environments rotating equipment can produce. The sensor tip operates continuously at up to 177°C, making it suitable for hot-section turbine bearing housings where most electronic sensors simply cannot survive. The eddy-current measurement principle is inherently immune to oil mist, steam, and process fluid contamination that would destroy optical or capacitive sensors within weeks.

The armored integral cable on the 330130-045-12-05 is rated for continuous mechanical vibration exposure. The cable jacket resists hydrocarbon solvents, lubricating oils, and cleaning agents common in compressor and turbine enclosures. The MIL-C-5015 connector at the driver end provides a positive locking mechanism that maintains signal integrity even under the vibration levels found on reciprocating compressor skids.

In offshore and marine environments, the probe assembly withstands salt-laden atmospheres and high-humidity conditions without corrosion-induced signal drift — a critical requirement for platform operators who cannot afford sensor replacement during a production campaign. ATEX-certified variants of this model are available for Zone 1 and Zone 2 hazardous area installations, covering Gas Groups IIC and IIB with temperature class T4.

Global Express Logistics

Our warehouse and export operations are based in Xiamen, Fujian Province — one of China’s primary international cargo hubs with direct DHL, FedEx, and UPS gateway connections. This geography is not incidental: Xiamen’s port and air freight infrastructure means your emergency order does not sit in a secondary hub waiting for onward connection.

Standard export process for in-stock units:

• Day 0: Order confirmed and proforma invoice issued. Export documentation prepared (commercial invoice, packing list, certificate of origin).
• Day 1: Unit inspected, packed in anti-static, moisture-resistant export packaging, and handed to DHL Express or FedEx International Priority.
• Day 2–4: Delivery to most destinations in Southeast Asia, the Middle East, and Europe. North America and South America typically 3–5 business days.

We support all major Incoterms (EXW, DAP, DDP) and can provide door-to-door DDP service for buyers who need a single landed cost with no customs clearance burden on their side. Multi-currency payment is accepted — USD, EUR, and HKD. All shipments are fully insured and tracked from dispatch to delivery confirmation.

For buyers in regions with import restrictions on industrial electronics, our team handles Xiamen Customs declaration compliance as standard practice. We have processed export documentation for industrial automation components to over 40 countries and understand the HS code classification and dual-use screening requirements that apply to this product category.
