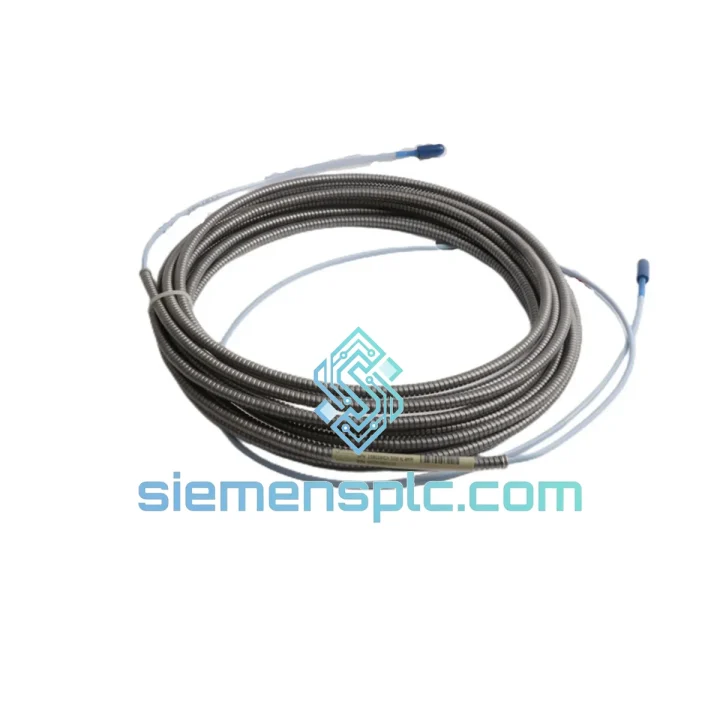

Bently Nevada 330130-085-01-05 Proximity Extension Cable

330130-085-01-05 Extension Cable: Every Hour of Downtime Costs You — We Ship Today

Your vibration monitor just went dark. The proximity transducer chain is broken. Maintenance is standing by, the shift supervisor is on the phone, and production is bleeding money by the minute. In rotating machinery protection, the extension cable is the most overlooked component — until it fails. The Bently Nevada 330130-085-01-05 is the OEM-specified Standard Extension Cable for the 3300 XL proximity transducer system, and we have it on the shelf in Xiamen, ready to ship within 24 hours via DHL or FedEx Express.

This is not a generic substitute. The 3300 XL system is a matched-set architecture: probe, extension cable, and proximitor must share precisely defined electrical characteristics — cable capacitance, impedance, and termination geometry — to maintain calibration accuracy. Swapping in an unspecified cable introduces gap voltage offset, scale factor drift, and in worst cases, false trip signals or missed fault detection. When your API 670-compliant machinery protection system is on the line, the only safe answer is the correct OEM part number.

We stock the 330130-085-01-05 specifically because it is one of the highest-demand replacement cables in the 3300 XL ecosystem. Gas turbine sites, centrifugal compressor trains, and steam turbine protection panels across Southeast Asia, the Middle East, and Europe have been back online within 48 hours of contacting us. That is the only metric that matters when you are in an emergency shutdown.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for the 330130-085-01-05:

1. Gap Voltage Out of Range (Proximitor output ≠ –10 VDC at nominal gap)
After installing the replacement cable, re-gap the probe to the manufacturer-specified air gap (typically 1.0–1.5 mm for 8mm probes). Use a calibrated gap tool. If the Proximitor output reads outside –10 ±0.5 VDC at nominal gap, suspect a mismatched cable or a damaged probe tip — do not assume the monitor is at fault before verifying the transducer chain.

2. High-frequency noise on the vibration channel (spiking, erratic 1X amplitude)
Check the extension cable routing. The 330130-085-01-05 uses a coaxial construction sensitive to sharp bends, pinch points, and proximity to high-voltage conduit. Re-route away from VFD output cables and motor power leads. Verify connector seating at both the probe and proximitor ends — a partially engaged MIL-spec connector is a common field error that mimics cable failure.

3. Intermittent OK/NOT OK relay chatter on the 3500 monitor
This is almost always a connector issue, not a monitor fault. Inspect the TNC or MIL-C-5015 connectors at both ends of the extension cable for corrosion, bent pins, or cracked backshells. In humid or offshore environments, connector corrosion is the primary failure mechanism — the cable jacket may look intact while the connector is degraded internally.

Replacement procedure checklist:

• De-energize the proximitor supply (typically –24 VDC) before disconnecting the cable — hot-swapping can damage the proximitor output stage.
• Label the old cable routing before removal. The 3300 XL extension cable must follow the same physical path to maintain EMI shielding continuity.
• Verify the replacement cable part number matches exactly: 330130-085-01-05. The suffix digits encode cable length and connector configuration — a wrong suffix will cause a calibration mismatch even if the cable physically fits.
• After installation, perform a full system calibration check per Bently Nevada procedure TN-085 before returning the machine to service.
• Document the replacement in the machinery protection system logbook with date, part number, and post-installation gap voltage reading.

No firmware or DIP switch configuration is required for the extension cable itself. However, if the 3500 monitor rack was powered down during the replacement, verify that the monitor channel configuration (transducer type, scale factor, full-scale range) has not reverted to default — some older 3500 firmware versions lose non-volatile configuration on extended power loss.

Reliability in Harsh Conditions

The 330130-085-01-05 is built for environments where most instrumentation cables fail within months. The cable jacket compound is rated for continuous exposure to hydrocarbon vapors, lubricating oil mist, and cleaning solvents — the standard chemical cocktail in any turbomachinery enclosure. The coaxial shield construction provides greater than 90 dB of EMI rejection, which is non-negotiable in installations near large motors, switchgear, or variable frequency drives.

Mechanical durability is equally critical. The cable is designed to withstand the vibration transmitted through machinery skids — not just the vibration it is measuring. Bently Nevada specifies the cable for continuous operation across a temperature range that covers arctic pipeline compressor stations through tropical refinery environments. The factory-molded connector backshells resist the repeated connect/disconnect cycles that occur during scheduled maintenance outages, where a cheaper cable would develop intermittent faults within two or three turnarounds.

In offshore and coastal installations, the cable’s moisture resistance prevents the capillary ingress that destroys unprotected coaxial cables over time. We have supplied this part to platforms in the South China Sea and the Persian Gulf where salt-laden air and high humidity are constant — and the feedback from site engineers confirms consistent performance across multi-year service intervals when installed correctly.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for rapid international dispatch. Xiamen Gaoqi International Airport operates direct cargo routes to major industrial hubs across Asia, the Middle East, Europe, and the Americas, giving us access to DHL Express and FedEx International Priority services with transit times of 2–5 business days to most destinations.

Order confirmation before 14:00 CST triggers same-day picking, inspection, and packaging. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared in parallel and transmitted to the freight forwarder before the shipment departs. For customers in countries requiring import permits or specific customs declarations for industrial automation components, our logistics team has handled these requirements for shipments to over 40 countries and can advise on documentation requirements before you commit to the order.

Tracking numbers are issued within 2 hours of carrier pickup and shared directly via email and WhatsApp. For critical emergency shipments, we can arrange airport-to-airport express freight with customs pre-clearance coordination on request. The goal is simple: the part leaves Xiamen the same day you confirm, and your maintenance team has it in hand before the next scheduled maintenance window closes.
