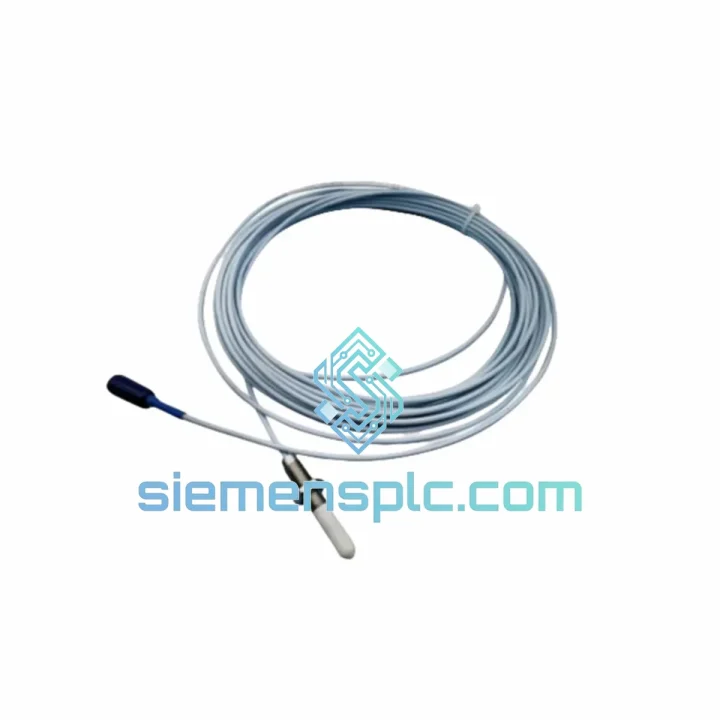

Bently Nevada 330130-085-02-05 Extension Cable – 3300 XL Series

Bently Nevada 330130-085-02-05 — Precision Signal Conduit in the 3300 XL Proximity Transducer Measurement Chain

In continuous machinery protection systems, the extension cable is not a passive interconnect — it is an active participant in the eddy-current measurement chain. The Bently Nevada 330130-085-02-05 is a factory-specified extension cable engineered for the 3300 XL 8mm Proximity Transducer System, one of the most widely deployed non-contact vibration and radial position measurement platforms in global turbomachinery. Its part number suffix encodes a defined cable length, connector termination style, and jacket specification, making it a non-interchangeable component in API 670-compliant machinery protection architectures.

The 3300 XL transducer chain operates on the eddy-current principle: a high-frequency oscillator within the Proximitor® sensor drives a coil at the probe tip, inducing eddy currents in the target shaft surface. The resulting impedance change is converted to a DC voltage proportional to the gap distance. This signal path — from probe tip through extension cable to Proximitor® input — must maintain tightly controlled coaxial impedance and capacitance per unit length. Any deviation from the OEM-specified cable parameters shifts the system’s gap voltage curve, introducing a static measurement offset that cannot be corrected by field calibration alone. The 330130-085-02-05 preserves this electrical integrity by matching the exact impedance, capacitance, and connector geometry specified in the Bently Nevada system design.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330130-085-02-05 extension cable functions as the impedance-matched transmission line between the proximity probe and the Proximitor® sensor. In the 3300 XL eddy-current system, the oscillator circuit within the Proximitor® sensor is tuned to a specific resonant frequency — typically in the range of 1.0 MHz to 1.5 MHz — and the total cable system (probe cable + extension cable) forms part of the resonant tank circuit. The characteristic impedance of the coaxial cable, its distributed capacitance per meter, and the termination impedance at both ends are all factored into the Proximitor® sensor’s factory calibration.

The armored outer jacket provides mechanical protection against the abrasive and chemically aggressive environments found on compressor and turbine skids — oil mist, process gas condensate, and sustained vibration loads that would degrade standard instrumentation cable over time. The coaxial geometry maintains consistent signal shielding along the full cable run, suppressing common-mode electromagnetic interference (EMI) from adjacent power cables, variable-frequency drives, and high-current motor feeders — all of which are present in typical turbomachinery installations. The shield termination at both connector ends provides a continuous Faraday enclosure, preventing capacitive coupling of high-frequency noise into the measurement signal. This is particularly critical in offshore and petrochemical environments where radiated EMI levels can exceed 10 V/m across broad frequency bands.

The suffix encoding in the part number (-085-02-05) specifies the cable length variant and connector configuration. Substituting a cable of a different length alters the total distributed capacitance presented to the Proximitor® oscillator, shifting the gap voltage curve and introducing a systematic measurement error that is indistinguishable from actual shaft displacement. This is why API 670 Section 5.3 mandates that extension cables be OEM-specified and length-matched to the installed Proximitor® sensor calibration.

System Integration Benefits

• Preserved Gap Voltage Linearity: OEM cable parameters maintain the Proximitor® sensor’s factory-calibrated gap voltage curve (typically −24 VDC at 1.0 mm gap for 8mm probes), ensuring measurement accuracy within ±0.5% of full scale across the operating range.
• API 670 Compliance Retention: Using the factory-specified part number preserves compliance with API 670 Section 5 transducer system requirements, avoiding non-conformance findings during third-party machinery protection audits.
• Zero Re-calibration Requirement: Drop-in replacement with the identical part number eliminates the need for Proximitor® sensor re-calibration after cable replacement — a significant advantage during emergency maintenance windows where downtime cost is measured in thousands of dollars per hour.
• Broadband EMI Rejection: Continuous coaxial shielding with grounded terminations at both ends suppresses radiated interference across the 100 kHz–10 MHz band, maintaining signal-to-noise ratio in electrically noisy plant environments.
• Mechanical Durability in Harsh Environments: Armored jacket construction withstands sustained vibration loads, oil immersion, and temperature cycling without jacket cracking or connector loosening — failure modes that cause intermittent signal loss and false alarm events in unprotected cables.
• Deterministic Fault Isolation: When a transducer chain fault is detected by the 3500 Series monitoring rack, replacing the extension cable with a known-good OEM unit is a standard diagnostic step. Using the correct part number eliminates cable parameters as a variable, accelerating fault isolation to the probe or Proximitor® sensor.
• Compatibility with 3500 Series Rack Inputs: When paired with the appropriate 3300 XL Proximitor® sensor, the complete transducer chain interfaces directly with 3500 Series Machinery Protection System rack modules (3500/40M, 3500/42M, 3500/45, 3500/46M) without signal conditioning adapters.
• Reduced Spare Parts Complexity: Stocking the exact OEM part number eliminates the risk of installing a dimensionally similar but electrically non-equivalent cable during a night-shift emergency — a scenario that has caused measurement errors and unnecessary machine trips in facilities that maintain generic cable inventories.

Quality Assurance & Global Logistics

Every unit of the Bently Nevada 330130-085-02-05 supplied through siemensplc.com is sourced from verified OEM surplus channels and authorized distribution networks. Each cable undergoes visual inspection of connector integrity, jacket condition, and part number label accuracy prior to shipment. Traceability documentation — including supply chain records and country of origin certificates — is available upon request for facilities operating under ISO 55001 asset management or API 670 compliance frameworks.

Packaging follows anti-static, moisture-resistant protocols with original or equivalent protective materials, preventing connector damage and jacket deformation during international transit. From our Xiamen, China dispatch hub, shipments reach most global destinations within 3–7 business days via DHL Express, FedEx International Priority, or UPS Worldwide Express. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international order to ensure smooth customs clearance. Emergency sourcing and same-day dispatch are available for critical machine-down situations. A 12-month warranty covers manufacturing defects and connector integrity from the date of shipment.
