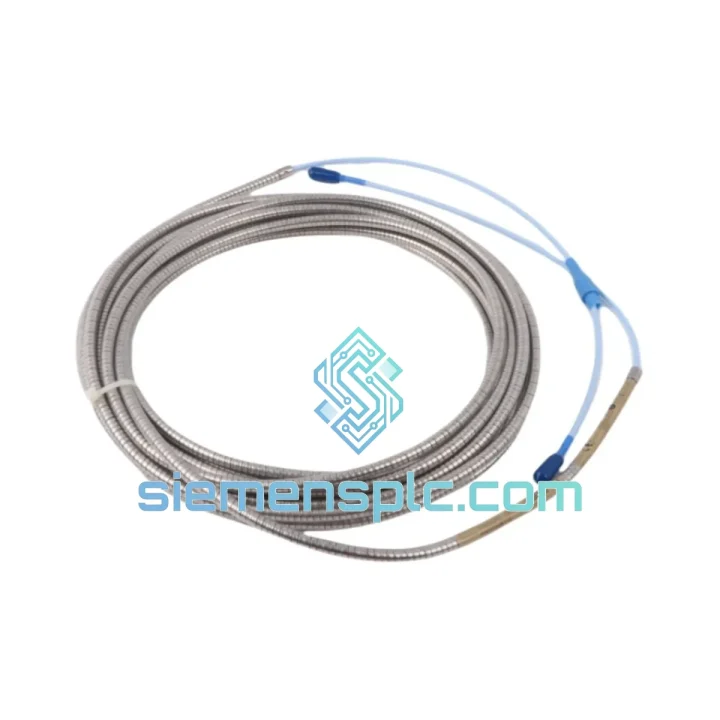

Bently Nevada 330130-085-12-00 Proximity Extension Cable

330130-085-12-00 Extension Cable: Every Minute of Downtime Costs You — We Ship Today

Your turbine tripped at 03:00. The DCS alarm log shows a proximity channel fault. Maintenance pulled the cable and found a broken shield, corroded connector, or a length mismatch from a previous non-OEM substitution. You need a Bently Nevada 330130-085-12-00 — the exact 8.5 m standard extension cable that completes the 3300 Series eddy-current measurement loop — and you need it before the next production window opens.

We stock this part in Xiamen. Same-day dispatch via DHL Express or FedEx International Priority. No minimum order. No waiting on a distributor’s lead time. One call, one cable, machine back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for 330130-085-12-00 in the field:

1. Shield continuity break (most frequent). Caused by repeated flexing at the connector boot or cable routing through tight conduit bends. Symptom: intermittent or noisy DC gap voltage on the Proximitor® output, erratic vibration readings that don’t correlate with actual shaft motion. Confirm with a continuity check from pin to pin — shield resistance should be <1 Ω end-to-end. Any open or high-resistance reading: replace the cable, do not attempt field repair.

2. Connector corrosion / moisture ingress. Common in offshore, coastal, or high-humidity environments. The MIL-spec connector body resists moisture but the mating interface can corrode if the protective cap is left off during maintenance. Symptom: elevated noise floor on the vibration channel, occasional channel-not-OK alarms. Inspect the connector under magnification. If the center pin shows green oxidation or pitting, replacement is the only reliable fix — contact resistance shifts will corrupt the gap calibration.

3. Length substitution error. A non-OEM cable of different capacitance — even if physically identical — shifts the Proximitor® output scale factor. The 3300 XL Proximitor® is factory-calibrated for a specific probe + cable + sensor combination. Substituting a 5 m or 11 m cable without recalibration will produce incorrect gap readings and may cause nuisance trips or, worse, missed real vibration events. Always replace like-for-like: 330130-085-12-00 for 330130-085-12-00.

Replacement procedure (field-verified):

1. De-energize the Proximitor® sensor at the terminal block — do not simply disconnect the cable under power; the oscillator circuit can be damaged.
2. Label both ends of the existing cable before removal. In multi-channel racks, cable swap errors are a leading cause of post-maintenance channel faults.
3. Inspect the probe-end connector on the new 330130-085-12-00 for shipping damage before installation. Check center pin alignment.
4. Route the new cable following the original path. Minimum bend radius: 50 mm. Do not kink or coil excess cable tightly — this changes effective electrical length.
5. Torque connectors finger-tight plus 1/4 turn. Over-torquing damages the center pin dielectric.
6. Re-energize and verify static gap voltage at the Proximitor® output. For a 5 mm probe at 1.0 mm gap, expected output is approximately −7.87 V DC (verify against your system calibration record).
7. Confirm channel OK status in the 3500 rack or System 1® before returning the machine to service.

No recalibration of the Proximitor® sensor is required when replacing with the identical OEM part number. The system sensitivity (mV/mil or mV/mm) remains valid.

Reliability in Harsh Conditions

The 330130-085-12-00 is not a commercial-grade cable. It is built to survive the environments where rotating machinery actually operates.

The shielded coaxial construction rejects EMI and RFI interference generated by adjacent VFDs, motor control centers, and high-current bus bars — interference sources that corrupt proximity signals on lesser cables. The MIL-spec connector terminations are designed for repeated maintenance cycles: the locking mechanism maintains contact integrity through vibration levels that would loosen standard BNC or SMA connectors within weeks.

Temperature performance covers the full range of industrial ambient conditions, from cold-start environments in northern climates to the radiant heat zones adjacent to gas turbine casings. The cable jacket resists hydrocarbon exposure — oil mist, light fuel contamination, and cleaning solvents used in routine maintenance will not degrade the jacket or penetrate to the shield.

In offshore and coastal installations, the cable has demonstrated service life measured in years rather than months, provided the connector mating surfaces are protected when disconnected. This is the same cable specified by OEM packagers for API 670 machinery protection systems on LNG trains, FPSO vessels, and pipeline compressor stations — environments where a cable failure means a production shutdown, not just a maintenance call.

Global Express Logistics

Our Xiamen warehouse operates on a same-business-day dispatch model for in-stock parts. Here is exactly how your order moves from our shelf to your site:

Order confirmed before 15:00 CST → Parts picked, inspected, and packed same day → DHL Express or FedEx International Priority label generated → Handed to carrier by 18:00 CST → Tracking number sent to your email within 2 hours of dispatch.

Transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Netherlands, Germany, UK): 3–5 business days
• North America (USA, Canada): 4–5 business days
• Australia / New Zealand: 3–5 business days

All shipments include a commercial invoice, packing list, and country-of-origin documentation. For plant sites requiring a Certificate of Conformance or third-party inspection report, advise us at the time of order — we can arrange this without delaying dispatch for standard stock items.

Customs clearance: we declare goods accurately and provide HS code documentation. For destinations with import duty exemptions on industrial automation components, we can provide the supporting technical description required by your customs broker.

If your shutdown cannot wait for standard express transit, contact us directly — we have arranged charter courier services for critical plant emergencies. The cost is real; so is the cost of an extended outage.
