Bently Nevada 330171-00-08-10-02-CN Proximity Extension Cable – 3300 XL

Bently Nevada 330171-00-08-10-02-CN — Signal-Path Extension Cable for 3300 XL Eddy-Current Proximity Systems

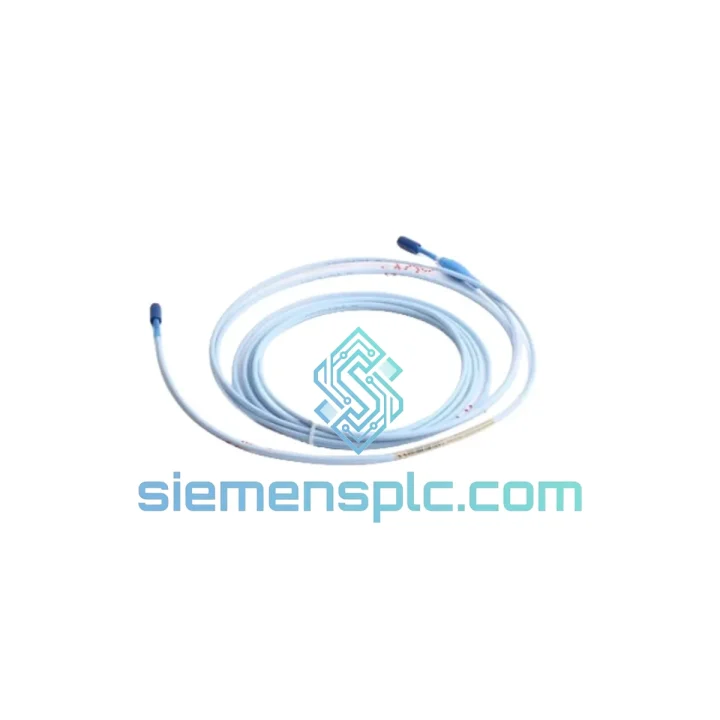

The 330171-00-08-10-02-CN is a factory-configured coaxial extension cable produced by Bently Nevada (a Baker Hughes company) for exclusive use within the 3300 XL proximity transducer system. This variant is defined by four key configuration parameters encoded in its part number: 8 mm probe compatibility, 1.0 m cable length, standard (non-armored) jacket construction, and CN-type coaxial connector termination. It occupies the second position in the three-component eddy-current measurement chain — bridging the proximity probe at the machine surface to the proximitor/driver module mounted in the instrument enclosure.

In rotating machinery protection and condition monitoring, the extension cable is not a passive wire. Its characteristic impedance, dielectric material, shielding architecture, and connector termination geometry are all tuned to preserve the high-frequency carrier signal generated by the probe oscillator circuit. Any deviation from the matched cable specification directly corrupts the scale factor (sensitivity) of the measurement loop, producing erroneous gap voltage outputs that can trigger spurious trips or, more critically, mask genuine shaft displacement events.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Impedance Matching and Scale Factor Integrity
The 3300 XL eddy-current system operates on a carrier frequency typically in the range of 1.0–1.5 MHz. At these frequencies, the coaxial cable behaves as a transmission line, not a simple conductor. The 330171 cable is manufactured to a controlled characteristic impedance of 95 Ω to match the output impedance of the 3300 XL probe and the input impedance of the 330180-series proximitor. Any impedance discontinuity — caused by a non-OEM cable, a damaged connector, or a cable of incorrect length — introduces reflections that alter the effective oscillator loading, shifting the resonant frequency and displacing the calibrated voltage-gap curve. The result is a systematic measurement error that cannot be corrected by field calibration without replacing the mismatched component.

PTFE Dielectric and Thermal Stability
Polytetrafluoroethylene is selected as the primary dielectric for its exceptionally low dielectric constant (εr ≈ 2.1) and near-zero temperature coefficient of capacitance across the −40 °C to +125 °C operating envelope. In hot-section machinery installations — such as gas turbine bearing pedestals where ambient temperatures routinely exceed 100 °C — conventional PVC or PE dielectric cables exhibit measurable capacitance drift, which translates directly into scale factor drift. The PTFE construction of the 330171 eliminates this thermal error source, maintaining measurement accuracy without derating or correction factors.

Double-Layer EMC Shielding Architecture
The cable employs a two-layer shielding scheme: an inner braided copper shield providing mechanical flexibility and low-resistance ground continuity, combined with an outer foil shield that presents a continuous 360° barrier to radiated electromagnetic interference. In industrial environments where variable-frequency drives (VFDs), high-current bus bars, and RF-emitting equipment operate in proximity to the measurement chain, this dual-shield construction maintains the signal-to-noise ratio of the proximity output below the threshold that would cause false readings in the 3300 XL monitor. Shield coverage exceeds 95% by construction, consistent with IEC 61000-4-3 Class A immunity requirements.

CN Connector Vibration Resistance
The CN-type coaxial connector used on both terminations of the 330171 incorporates a positive-locking bayonet mechanism with a defined engagement torque specification. In high-vibration machinery environments — compressor trains operating at 3,000–12,000 RPM, for example — connector micro-motion is a primary failure mode for proximity cable assemblies. The CN connector’s locking geometry prevents rotational loosening under sustained vibration, maintaining consistent contact resistance at the center pin and shield termination. Contact resistance stability directly affects the DC bias voltage presented to the proximitor, and any variation exceeding ±0.1 Ω can produce measurable offset errors in the gap voltage output.

System Integration Benefits

• Zero-Recalibration Replacement: The 330171-00-08-10-02-CN is a direct OEM-equivalent replacement. Substituting a failed cable with this part number requires no re-characterization of the probe-cable-proximitor system, provided the probe and proximitor are unchanged. The matched impedance and length preserve the factory scale factor, eliminating the need for a calibration engineer on-site during maintenance windows.
• API 670 Compliance Support: The cable is dimensionally and electrically compatible with API Standard 670 (5th Edition) requirements for radial vibration, axial position, and differential expansion measurement systems on critical and essential rotating machinery. Using OEM-matched cables is a prerequisite for maintaining API 670 compliance documentation in regulated industries.
• Deterministic Real-Time Response: Because the cable introduces no active components, its contribution to measurement latency is governed solely by signal propagation velocity (approximately 0.67c in PTFE dielectric). For a 1.0 m cable, propagation delay is approximately 5 ns — negligible relative to the 3300 XL monitor’s sampling interval. This ensures the protection system’s trip response time is not degraded by the cable assembly.
• Diagnostic Transparency: The 3300 XL system’s built-in cable fault detection relies on the known impedance profile of the matched cable. Using the correct 330171 variant allows the proximitor’s internal diagnostics to accurately distinguish between a genuine shaft displacement event, a probe gap fault, and a cable open-circuit or short-circuit condition — enabling maintenance teams to isolate faults without removing the machine from service.
• Thermal Derating Elimination: The +125 °C continuous rating of the 330171 covers the full operating temperature range of all standard 3300 XL installation environments without derating. Maintenance planners do not need to apply correction factors or schedule cable inspections based on thermal aging models, reducing lifecycle maintenance overhead.
• Reduced Spare Parts Complexity: The 330171 series uses a standardized CN connector across all length variants. A single connector tool kit covers the entire 330171 product family, simplifying the spare parts inventory for maintenance departments managing multiple cable lengths across a plant.
• Hazardous Area Compatibility: As a passive cable assembly, the 330171 does not introduce ignition-capable energy into the measurement loop. When paired with an appropriately certified Zener barrier or galvanic isolator, the complete proximity system can be deployed in IEC 60079-classified Zone 1 and Zone 2 hazardous areas without modification to the cable assembly itself.
• Long-Term Availability and Traceability: Bently Nevada maintains the 330171 series as an active catalog item with documented revision history. Each cable assembly carries a traceable part number label with date code, enabling maintenance records to capture the exact cable revision installed at each measurement point — a requirement for ISO 55000 asset management programs in critical infrastructure facilities.

Quality Assurance & Global Logistics

Every 330171-00-08-10-02-CN unit offered through siemensplc.com is sourced from Bently Nevada’s authorized distribution network or verified surplus inventory with full part number traceability. Prior to dispatch from our Xiamen, China facility, each cable assembly undergoes a pre-shipment inspection protocol covering: connector seating and locking engagement verification, jacket continuity and absence of kinks or crush damage, shield resistance measurement at both terminations, and part number label legibility confirmation. Units that do not pass inspection are quarantined and not offered for sale.

Original Bently Nevada manufacturer labeling, date codes, and part number markings are preserved intact on all units. No remarking, relabeling, or cosmetic restoration is performed. Certificates of Conformance (CoC) and available test documentation can be provided upon request for procurement teams with critical-service documentation requirements.

Logistics from Xiamen, China to global destinations are handled via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to North America and Europe, and 2–5 business days to Southeast Asia and the Middle East. Export documentation including commercial invoice, packing list, and HS code classification (HS 8544.42) is prepared for all international shipments. In-stock units are dispatched within 1–2 business days of order confirmation. For urgent plant maintenance requirements, same-day dispatch is available for orders confirmed before 14:00 CST.

A 12-month warranty applies to all units from the date of dispatch, covering manufacturing defects in materials and workmanship. Warranty claims are processed with replacement dispatch within 5 business days upon receipt and inspection of the returned unit. The warranty does not cover damage resulting from installation beyond the rated bend radius, mechanical impact, chemical exposure, or unauthorized modification.
