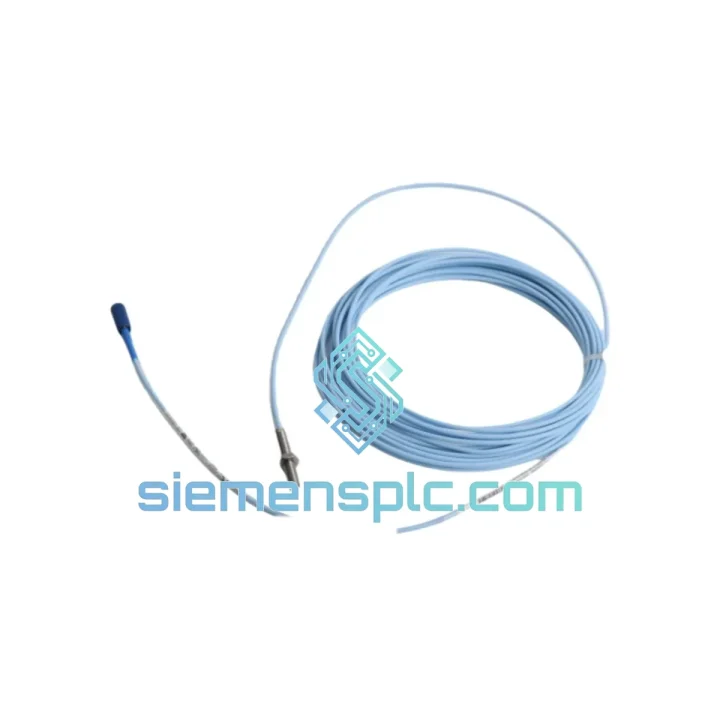

Bently Nevada 330171-00-20-90-02-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330171-00-20-90-02-00 — Eddy-Current Proximity Transducer for Rotating Machinery Protection

The Bently Nevada 330171-00-20-90-02-00 is an 8 mm eddy-current proximity transducer belonging to the 3300 XL Series, a platform engineered specifically for continuous, non-contact displacement measurement on rotating shafts in safety-critical machinery trains. Within a protection loop, this transducer occupies the first node in the signal chain: it converts the physical gap between probe tip and target surface into a proportional DC voltage, which the downstream Proximitor driver conditions before transmission to the monitor rack. The accuracy and stability of every alarm setpoint, every orbit plot, and every axial position trip threshold in the system depends directly on the metrology of this transducer assembly.

Unlike accelerometers that integrate velocity and displacement from inertial references, the eddy-current principle measures absolute shaft position relative to the bearing housing. This makes the 330171-00-20-90-02-00 the preferred sensor type wherever API 670 mandates radial vibration, axial position, or differential expansion channels — applications where DC-coupled, gap-sensitive measurement is non-negotiable.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330171-00-20-90-02-00 relies on the interaction between a high-frequency oscillating magnetic field — generated by the probe coil driven at approximately 1 MHz by the Proximitor — and the eddy currents induced in the conductive target surface. As the gap between probe tip and shaft decreases, eddy-current losses increase, loading the oscillator and reducing its amplitude. The Proximitor demodulates this amplitude change into a linear DC voltage output at the scale factor of 7.87 V/mm.

EMC Architecture: The stainless-steel armored extension cable (suffix -02-00) provides a continuous Faraday shield from probe body to Proximitor input, attenuating radiated interference from variable-frequency drives, arc welders, and high-current bus bars commonly co-located in turbine halls. The shield is grounded at the Proximitor end only, preventing ground-loop currents that would appear as low-frequency noise on the displacement signal.

Thermal Stability: The probe coil former is wound on a ceramic mandrel with a low coefficient of thermal expansion. This minimizes scale-factor drift across the probe’s rated temperature range of −35 °C to +177 °C — a critical property for hot-section bearing pedestals where ambient temperatures can exceed 150 °C during steady-state operation. Scale-factor variation over the full thermal range is specified at less than ±0.5% of reading, preserving alarm setpoint integrity without field recalibration.

Linearity and Gap Calibration: The 2.0 mm linear span (0.25 mm to 2.25 mm) is factory-characterized against an AISI 4140 steel target at 25 °C. The ±1% linearity specification means that at any point within the span, the output voltage deviates from the ideal straight-line response by no more than 20 mV — equivalent to a positional error of approximately 2.5 µm. This resolution is sufficient to detect sub-mil shaft displacement changes associated with early-stage bearing wear or rotor unbalance growth.

Frequency Response: The DC-to-10 kHz bandwidth accommodates synchronous vibration components up to 600,000 CPM (10,000 Hz), covering machinery operating at speeds from slow-roll (below 100 RPM) through high-speed compressors and expanders. The flat frequency response eliminates the need for frequency-dependent correction factors when computing 1× and 2× vibration amplitudes from FFT analysis.

System Integration Benefits

• Direct 3300 XL rack compatibility: The 330171-00-20-90-02-00 is electrically and mechanically interchangeable with all 3300 XL monitor channels without firmware changes or recalibration, reducing spare-parts complexity in multi-train facilities.
• API 670 compliance out of the box: The assembly meets the transducer performance requirements of API 670 Fifth Edition, including scale factor, linearity, and temperature range, eliminating the need for third-party compliance verification before commissioning.
• Non-contact measurement eliminates wear: With no physical contact between probe and shaft, the transducer has no mechanical wear mechanism. Mean time between replacement is determined by environmental degradation rather than fatigue, typically exceeding 10 years in clean installations.
• DC-coupled output preserves axial position data: Unlike AC-coupled sensors, the DC output retains the absolute gap voltage, enabling simultaneous radial vibration and axial position measurement on a single channel when configured with the appropriate monitor card.
• ATEX/FM dual certification: Zone 1 and Class I Division 1 ratings allow installation in hydrogen-cooled generators, gas turbine enclosures, and other classified hazardous areas without additional intrinsic safety barriers in most configurations.
• Armored cable for high-vibration routing: The stainless-steel conduit jacket (suffix -02-00) withstands continuous mechanical vibration and protects against abrasion in cable trays routed through turbine decks, where unarmored cables are subject to chafing failure.
• Deterministic signal latency: The analog output path from probe to Proximitor introduces no digital processing delay. Signal latency is governed only by the Proximitor’s analog filter bandwidth, ensuring that the monitor rack receives real-time displacement data with sub-millisecond response to transient events such as rub or blade loss.
• Broad target material compatibility with correction: While optimized for AISI 4140 steel, the transducer can be used on stainless steel, Inconel, and titanium shafts by applying published correction factors, extending applicability to aerospace-derivative gas turbines and cryogenic expanders.

Quality Assurance & Global Logistics

Every 330171-00-20-90-02-00 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and carries original Bently Nevada manufacturer labeling, date codes, and traceability markings. Incoming inspection at our Xiamen facility includes dimensional verification of the probe tip geometry, bench-test of scale factor output against a calibrated gap fixture, insulation resistance measurement on the cable assembly, and confirmation of connector pin assignment against the OEM wiring diagram. Units that do not meet OEM datasheet tolerances are quarantined and returned — no refurbished or reconditioned parts enter our inventory.

Shipments originate from Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export documentation includes commercial invoice, packing list, and certificate of origin. For regulated industries, traceability documentation and incoming inspection records are available upon request. Most destinations are served within 3–7 business days under express freight. Bulk orders and scheduled blanket releases can be arranged with lead times confirmed at order placement. Export classification is EAR99 for most destinations; customers in controlled-country jurisdictions should confirm import requirements prior to ordering.

All shipments are covered by a 12-month warranty from the date of shipment against manufacturing defects. Warranty claims are processed with replacement unit dispatch upon receipt and inspection of the returned item.
