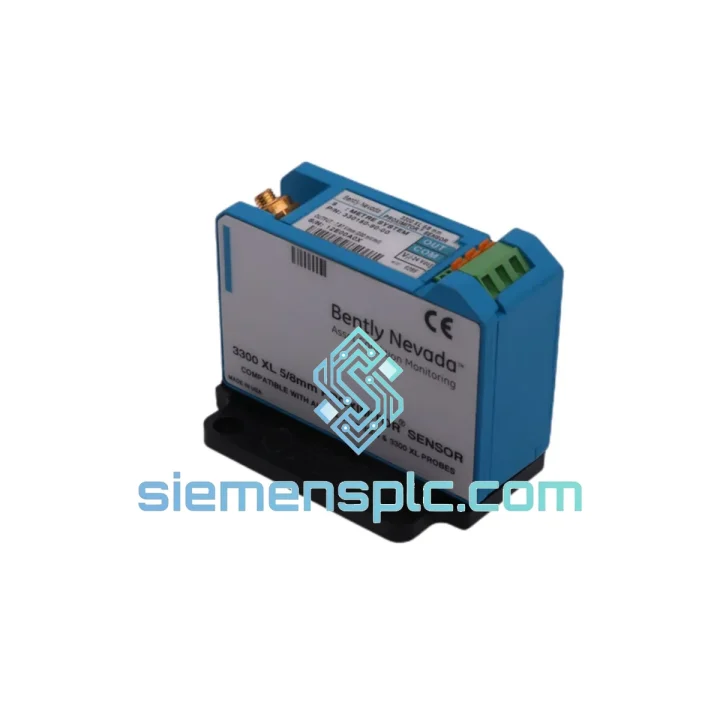

Bently Nevada 330180-90-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330180-90-00 — 8 mm Eddy-Current Proximity Transducer for Continuous Shaft Monitoring

The 330180-90-00 is an 8 mm eddy-current proximity transducer manufactured under the Bently Nevada 3300 XL platform. It performs non-contact, continuous measurement of radial shaft vibration, axial position, and differential expansion in rotating machinery. The 0.9 m integral armored cable (suffix -90-00) is dimensioned for compact machinery trains where longer cable assemblies create routing constraints. This transducer is the primary sensing element in a complete 3300 XL measurement loop and interfaces directly with 3300 XL Proximitor® driver modules and Bently Nevada 3500 Series monitor racks without requiring rack recalibration.

The device operates on the eddy-current principle: a high-frequency oscillator drives a coil wound at the probe tip, generating an electromagnetic field. When a conductive target — typically AISI 4140 steel shaft — enters the field, eddy currents are induced on the target surface, loading the oscillator circuit. The Proximitor driver converts this impedance change into a DC voltage output linear with gap distance, at a scale factor of 7.87 V/mm (200 mV/mil). This architecture eliminates mechanical contact entirely, making the transducer suitable for continuous 24/7 operation across multi-year maintenance intervals without wear-related drift.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL platform introduced a revised oscillator topology compared to earlier Bently Nevada 7200 series probes. The driver circuit maintains a fixed oscillation frequency — typically in the range of 1.0 MHz to 1.5 MHz — which is substantially higher than the 500 kHz range used in legacy 7200 designs. This higher carrier frequency reduces the sensitivity of the measurement to target surface roughness and minor metallurgical variations, improving repeatability in field conditions where shaft surfaces are not perfectly uniform.

The 8 mm probe tip geometry is a deliberate compromise between sensitivity and target area requirement. Smaller 5 mm probes offer higher spatial resolution but demand tighter shaft surface finish tolerances and are more susceptible to electrical runout from shaft material inhomogeneity. The 8 mm tip provides a measurement footprint that averages over a larger shaft area, reducing the contribution of mechanical and electrical runout to the overall vibration signal — a critical factor when the transducer is used for API 670 alarm and trip setpoint compliance.

The armored cable construction addresses a specific failure mode common in turbine and compressor environments: cable jacket degradation from oil mist, steam condensate, and mechanical abrasion at cable clamp points. The stainless-steel armor braid provides crush resistance and shields the coaxial signal conductor from capacitive coupling to adjacent power cables — a source of 50/60 Hz interference that can corrupt low-amplitude vibration signals. The integral cable design (probe + 0.9 m cable as a single factory-assembled unit) eliminates the connector junction at the probe body, which is the highest-stress point in the cable assembly and the most common site of intermittent signal faults in field installations.

EMC performance is governed by the coaxial geometry of the signal path from probe tip to Proximitor driver input. The outer shield of the coaxial cable is grounded at the driver end only (single-point grounding), preventing ground loop currents from flowing through the shield and appearing as common-mode noise on the measurement signal. This is consistent with ISA-RP12.6 wiring practice for instrumentation in hazardous areas and is a prerequisite for achieving the signal-to-noise ratios required by API 670 for alarm discrimination at vibration amplitudes below 25 µm peak-to-peak.

System Integration Benefits

• Direct 3500 Series Rack Compatibility — The 330180-90-00 interfaces with Bently Nevada 3500/42M, 3500/40M, and 3500/45 monitor cards via the standard 3300 XL Proximitor driver. No rack firmware update or channel recalibration is required when replacing an existing 3300 XL probe of the same tip diameter.
• Deterministic DC Output — The –2 VDC to –18 VDC output range is fully within the input specification of all 3500 Series monitor cards, ensuring that gap voltage readings displayed on the operator HMI are directly traceable to the physical air gap without software scaling correction.
• 10 kHz Bandwidth for High-Speed Machinery — The flat frequency response to 10,000 Hz captures blade-pass frequencies on compressors running at 3,000–15,000 RPM, sub-synchronous oil-whirl instabilities at fractional multiples of running speed, and high-order gear mesh harmonics — all within a single transducer channel, eliminating the need for supplementary high-frequency accelerometers on the same measurement plane.
• Non-Contact Zero-Wear Operation — Absence of mechanical contact between probe and shaft means the transducer introduces no friction, no wear particles, and no thermal load to the shaft surface. This is particularly significant in cryogenic compressor applications where any surface contamination of the shaft can alter the eddy-current field and introduce measurement offset.
• IP67 Probe Body for Wet Environments — The IP67 rating permits probe installation in bearing housings where oil splash and condensate accumulation are continuous. This eliminates the need for probe housing purge systems that add complexity and maintenance burden to the protection loop.
• API 670 Alarm and Trip Loop Integrity — When installed with a calibrated 3300 XL Proximitor driver and a 3500 Series monitor card, the complete measurement loop meets the transducer performance requirements of API 670 Section 5, including scale factor tolerance (±3%), frequency response flatness, and temperature coefficient specifications. This is a mandatory requirement for machinery protection systems on API 617 and API 672 compressors in refinery and gas processing service.
• Diagnostic Transparency via Gap Voltage Monitoring — The DC gap voltage output provides a continuous, real-time indicator of probe-to-shaft clearance. Operators can trend gap voltage over time to detect shaft centerline migration caused by bearing wear, thermal growth, or foundation settlement — a diagnostic capability that is not available with contact-type displacement sensors.
• Simplified Spare Parts Management — The 330180-90-00 is a standardized catalog part with a stable part number across multiple production generations. A single spare unit covers all 8 mm radial vibration and axial position measurement points in a 3300 XL installation, reducing the number of unique spare part numbers that must be held in the plant warehouse.

Quality Assurance & Global Logistics

Every 330180-90-00 unit supplied by siemensplc.com is sourced from verified channels with documented chain of custody. Incoming units undergo visual and dimensional inspection against OEM reference standards: probe tip geometry, cable jacket integrity, armor braid continuity, connector thread condition, and label legibility are checked before the unit enters stock. Functional bench verification — output voltage linearity across the specified gap range against a calibrated AISI 4140 steel target — is available on request and is provided as standard for orders requiring a test certificate.

Packaging follows anti-static and mechanical protection protocols: each unit is individually wrapped in anti-static foam, placed in a rigid-wall carton with void fill, and labeled with part number, serial number (where available), and inspection record. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared as standard for all international shipments.

Logistics are managed from Xiamen, China, with access to major international freight forwarders and express courier services. Typical transit times are 3–7 business days to Southeast Asia, 5–10 business days to Europe and the Middle East, and 7–14 business days to the Americas, depending on customs clearance at the destination port. DDP, DAP, and EXW Incoterms are supported. All units carry a 12-month warranty against manufacturing defects, with replacement or full refund as the remedy.
