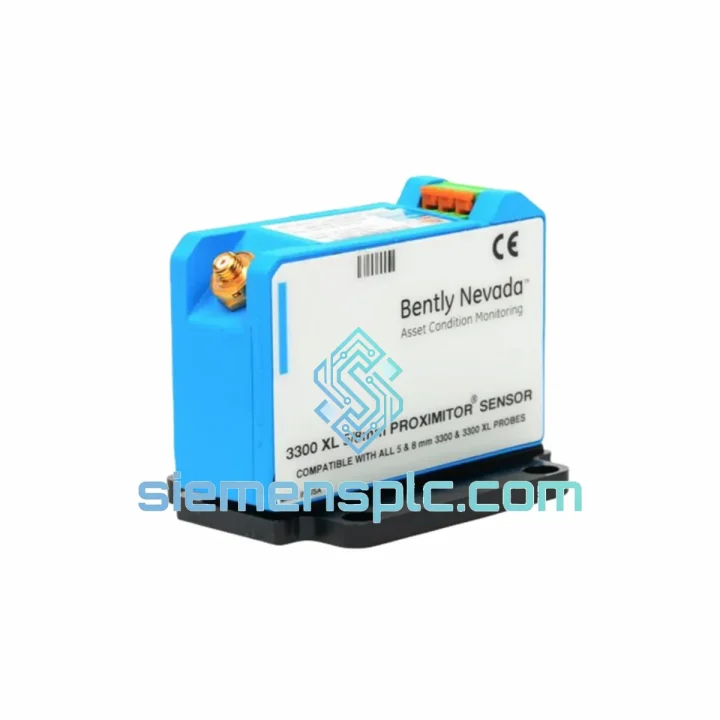

Bently Nevada 330180-X0-05 MOD-143416-05 Proximity Sensor

330180-X0-05 MOD:143416-05 — Stop the Clock on Your Turbomachinery Downtime

Every hour your compressor train or steam turbine sits idle costs real money — production losses, contractual penalties, and crew standing by. The Bently Nevada 330180-X0-05 MOD:143416-05 eddy-current proximity sensor is the exact OEM part your 3300 XL loop needs to get back online. We stock it in Xiamen and ship globally via DHL/FedEx Express. No substitutes. No refurbished units. No waiting weeks for a factory order.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience — here is what actually goes wrong with 3300 XL proximity loops and what to check before you swap the sensor:

Fault Code: GAP voltage out of range (typically −10 V to −18 V nominal at −24 VDC supply)
If your Proximitor output reads outside −10 V to −18 V at the correct gap, the sensor tip is the first suspect — but do not replace it blindly. Check the extension cable first. A single nick in the coaxial shield between the sensor and Proximitor will cause identical symptoms. Disconnect the extension cable at the Proximitor end and measure impedance at the sensor connector: you should see approximately 8 Ω at the tip coil. Anything above 12 Ω or open-circuit confirms sensor failure.

MOD:143416-05 — What the modification code means in practice
This MOD code designates a factory-applied calibration and connector configuration variant. When sourcing a replacement, the full part number including MOD code must match exactly. Substituting a standard 330180-X0-05 without the MOD suffix will result in a sensitivity offset that throws off your alarm and trip setpoints — a dangerous condition on a machinery protection system. Verify the label on the sensor body before installation.

Replacement procedure checklist (field-tested):

• De-energize the monitor rack channel before disconnecting the sensor — do not hot-swap on a live SIS loop without a bypass in place.
• Record the existing gap voltage before removal. Target the same gap (typically 1.0–1.5 mm) on the new sensor to restore the same output voltage baseline.
• Inspect the probe tip threads (M10×1 standard) for galling. Use anti-seize compound on the locknut — torque to 14 N·m maximum.
• After installation, perform a static calibration check: use a non-ferrous shim set to verify output voltage at 0.25 mm increments across the full measurement range.
• Confirm the Proximitor driver serial number matches the sensor lot — mismatched driver/sensor pairs from different calibration batches can introduce up to ±3% linearity error.
• For 3500 rack integration: after sensor swap, perform a channel functional test per Bently Nevada procedure TN-027 before releasing the machine to service.

Common failure modes in the field: Tip contamination from oil mist (clean with isopropyl alcohol — never abrasives), cable fatigue at the sensor body strain relief after 5+ years of vibration exposure, and connector corrosion on offshore installations. If the unit has been in service more than 7 years in a high-vibration environment, replace the full loop — sensor, extension cable, and Proximitor — rather than chasing intermittent faults one component at a time.

Reliability in Harsh Conditions

The 330180-X0-05 MOD:143416-05 is not a lab instrument — it is built to survive the same environment as the machinery it monitors. The stainless-steel sensor housing is hermetically sealed at the tip, rated for direct immersion in oil mist and process gas atmospheres. The integral coaxial cable uses a PTFE-insulated center conductor with a braided stainless shield, resistant to both mechanical fatigue and chemical attack from H₂S, ammonia, and hydrocarbon condensates common in refinery and upstream applications.

Vibration endurance: the sensor body is qualified to 20 g sinusoidal vibration across 10–2,000 Hz per IEC 60068-2-6, which means it handles the very vibration signatures it is measuring without self-generating noise. Thermal cycling from cold startup (−35 °C) to full operating temperature (+177 °C) does not affect calibration — the eddy-current measurement principle is inherently temperature-stable compared to piezoelectric alternatives. In high-humidity offshore environments, the hermetic tip seal prevents moisture ingress that would otherwise detune the coil and shift the sensitivity curve. This is why API 670 specifies eddy-current proximity sensors for critical machinery protection — and why the 3300 XL series has been the industry benchmark for over two decades.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international freight hub with direct DHL Express and FedEx International Priority connections to over 220 countries. Here is how your order moves:

• Order confirmed → same-day pick and pack for orders placed before 14:00 CST. Export documentation (commercial invoice, packing list, HS code 9031.80) prepared in parallel.
• DHL Express / FedEx IP: transit time 2–4 business days to Europe, Middle East, and Southeast Asia; 3–5 days to North America and South America.
• Tracking provided within 4 hours of handover to carrier — AWB number sent directly to your email.
• Customs clearance support: we provide full export documentation including Certificate of Origin and CoC on request. For destinations requiring import permits for industrial instrumentation, contact us before ordering so we can advise on HS classification and duty rates.
• Emergency freight: for critical shutdowns, we can arrange next-flight-out courier on request. Contact WhatsApp directly for fastest response.

We have shipped Bently Nevada proximity sensors to petrochemical plants in Saudi Arabia, power stations in Vietnam, LNG terminals in Australia, and compressor stations across Europe. The logistics process is proven. Your part arrives intact, documented, and ready to install.
