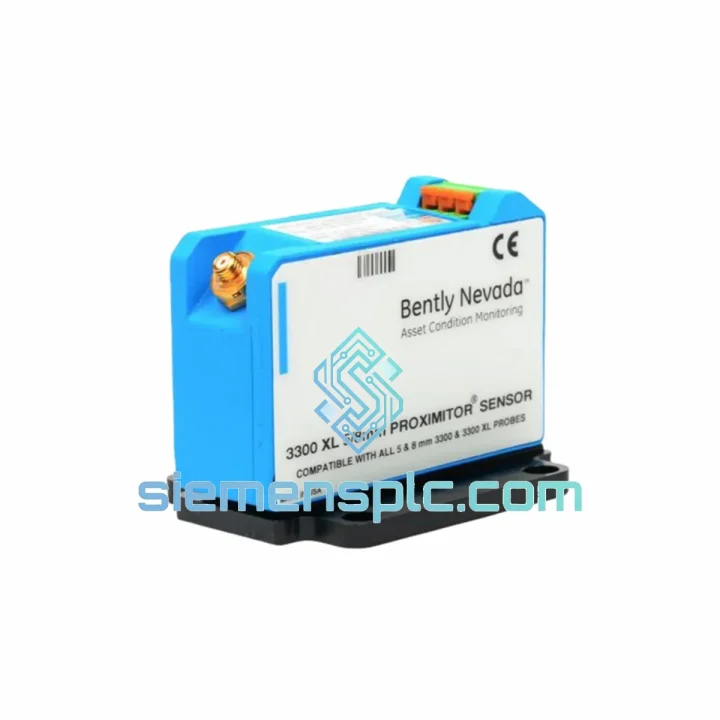

Bently Nevada 330180-X1-00 MOD 145004-128 Proximitor Sensor – 3300 XL Series

Bently Nevada 330180-X1-00 MOD 145004-128 — Eddy-Current Proximitor Sensor for Rotating Machinery Protection

The Bently Nevada 330180-X1-00 MOD 145004-128 is a field-proven eddy-current proximity transducer engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in critical rotating machinery. Operating as the primary sensing element within the 3300 XL Proximitor System, this unit converts mechanical displacement into a proportional DC voltage signal with a nominal sensitivity of 7.87 V/mm (200 mV/mil), enabling the connected monitor to execute real-time machinery protection logic without mechanical contact or wear-induced drift.

Unlike piezoelectric accelerometers that measure surface acceleration, the eddy-current topology of the 330180-X1-00 responds directly to the gap distance between the probe tip and the conductive target shaft. This physical principle makes the sensor immune to acoustic noise, insensitive to shaft surface temperature gradients below 121°C, and capable of resolving sub-micron displacement changes at shaft speeds from 0 RPM through the full operating range — a characteristic that is operationally critical during slow-roll runout acquisition and coast-down analysis.

The MOD 145004-128 revision designator identifies the specific internal calibration curve and cable compensation network embedded in this unit. Substituting a different MOD revision without recalibrating the associated Proximitor monitor will introduce a static gap voltage offset, which can trigger false danger alarms or, more critically, suppress genuine vibration alerts. Procurement teams must match the MOD code precisely to the installed monitor configuration or engage the site instrumentation engineer before substitution.

This sensor is stocked and dispatched from Xiamen, China, with full export documentation. All units pass a structured incoming inspection protocol before entering available inventory. Contact [email protected] or WhatsApp +86 18359268345 for real-time stock confirmation and pricing.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330180-X1-00 probe operates on the Lenz’s Law induction principle: a high-frequency oscillator within the Proximitor driver (housed in the monitor module) drives an AC current through the probe coil, generating an electromagnetic field at the probe tip. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and reducing its amplitude. The Proximitor’s demodulation stage converts this amplitude change into a proportional negative DC voltage — the gap signal — with a linearity error of less than ±0.5% across the calibrated range.

EMC Design: The probe coil is wound on a ferrite core and enclosed within a grounded stainless steel housing. This Faraday-shield geometry attenuates external RF interference by greater than 40 dB across the 1 MHz to 1 GHz band, which is significant in turbine halls where high-voltage switchgear and variable-frequency drives generate broadband electromagnetic noise. The coaxial cable geometry of the X1 configuration maintains a controlled characteristic impedance from probe tip to monitor input, preventing standing-wave reflections that would introduce measurement error at high shaft speeds.

Thermal Stability: The calibration curve embedded in MOD 145004-128 includes a temperature compensation coefficient that corrects for the thermal expansion of the probe coil former and the change in target material permeability with temperature. Without this compensation, a 100°C rise in probe tip temperature would introduce a gap error of approximately 25 µm on a standard 4140 steel shaft — sufficient to generate a spurious 1× vibration component at low amplitudes. The MOD-specific compensation reduces this thermal drift to less than 5 µm across the rated temperature range.

Cable Impedance Matching: The X1 cable assembly is factory-trimmed to match the input impedance of the 3300 XL monitor. Substituting a non-matched extension cable alters the Q-factor of the oscillator tank circuit, shifting the linear range endpoints and the sensitivity constant. Field engineers should verify gap voltage at the monitor input against the published calibration chart after any cable replacement.

System Integration Benefits

• Zero-RPM Measurement Capability: The DC-coupled output preserves static gap information at standstill, enabling slow-roll runout subtraction and shaft centerline position tracking from 0 RPM through full operating speed — a requirement for API 670-compliant turbine protection systems.
• Direct Monitor Compatibility: The 330180-X1-00 interfaces natively with Bently Nevada 3300 XL 8 mm, 11 mm, and 14 mm monitor modules without signal conditioning adapters, reducing wiring complexity and eliminating an additional failure point in the signal chain.
• Deterministic Signal Latency: The analog output path from probe tip to monitor input introduces less than 50 µs of signal delay, ensuring that the monitor’s danger relay can respond to a step-change vibration event within the 1-cycle processing window specified by API 670 Section 5.3.
• Diagnostic Transparency via Gap Voltage: The DC component of the output signal provides a continuous, real-time indication of probe-to-shaft gap. Operators can trend this value in System 1 software to detect shaft bow, bearing wear, or probe mounting looseness before vibration amplitude thresholds are reached.
• Non-Contact Operation Eliminates Wear: With no mechanical contact between sensor and shaft, the 330180-X1-00 has no wear-limited service life under normal operating conditions. Mean time between failures (MTBF) for the probe assembly exceeds 200,000 hours in non-flooded installations.
• Broad DCS/SCADA Integration: The −24 VDC output is compatible with standard eddy-current signal conditioning inputs on ABB, Emerson DeltaV, Honeywell Experion, and Yokogawa CENTUM platforms, allowing the sensor to feed vibration data into plant-wide asset management systems without additional transducers.
• Hazardous Area Suitability: The 3300 XL Proximitor System, including the 330180-X1-00 probe, carries ATEX and IECEx certifications for Zone 1 and Zone 2 gas group IIC installations when used with the appropriate Zener barrier or galvanic isolator, covering the majority of petrochemical and LNG plant environments.
• Reduced Commissioning Time: The factory-calibrated sensitivity constant and pre-trimmed cable assembly eliminate field calibration of the probe-cable pair. Commissioning is reduced to gap setting verification and monitor channel configuration, typically achievable within 30 minutes per measurement point.

Quality Assurance & Global Logistics

Every 330180-X1-00 MOD 145004-128 unit dispatched from our Xiamen facility passes a structured four-stage incoming inspection: source documentation review against manufacturer lot records, physical inspection of probe body, connector, and cable jacket against OEM dimensional tolerances, coil continuity and insulation resistance verification (≥ 100 MΩ at 500 VDC), and output signal spot-check against the published calibration curve using a calibrated gap simulator. Units that do not meet all four criteria are quarantined and not offered for sale.

Packaging follows OEM anti-static and mechanical protection standards. Each shipment includes a packing list, commercial invoice, and certificate of origin. A 12-month warranty covers manufacturing defects and calibration drift beyond published tolerances. Logistics options from Xiamen include DHL Express (3–5 business days to Europe and North America), FedEx International Priority (2–4 business days), and sea freight consolidation for bulk orders. Export classification and HS code documentation are prepared for each shipment to minimize customs clearance delays.
