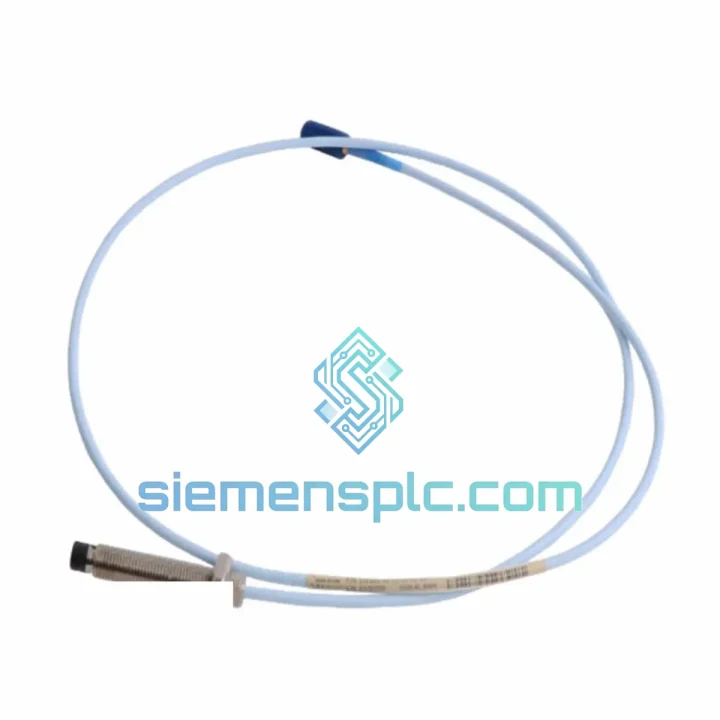

Bently Nevada 330190-085-00-05 Proximity Probe

330190-085-00-05 Proximity Probe — Stop the Clock on Your Downtime

Every minute a turbine or compressor sits idle costs real money. When your Bently Nevada 3300 XL proximity transducer system throws a fault or a probe fails mid-shift, you don’t have time to chase distributors through three layers of bureaucracy. We stock the Bently Nevada 330190-085-00-05 — 8 mm eddy-current proximity probe with 5 m integral cable — in Xiamen, ready to clear customs and land on your bench faster than your maintenance window closes.

This is not a grey-market pull. Not a refurb. Not a clone. It is a factory-original 330190-085-00-05 sourced through verified industrial channels, inspected before it goes in the box, and shipped with full documentation so your QA team doesn’t have to ask twice.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 3300 XL system surfaces the same failure patterns repeatedly. Before you condemn the probe, run through this sequence:

1. Verify the gap voltage first. Connect a calibrated voltmeter to the Proximitor output. At the nominal 1.27 mm (50 mil) air gap, you should read approximately −10 VDC. A reading outside −8 to −12 VDC at that gap indicates either a probe gap error or a driver fault — not necessarily a dead probe. Re-gap before ordering a replacement.

2. Check the extension cable continuity. The 330190-085-00-05 uses an integral 5 m cable, but if your installation added a 330130-series extension cable, inspect the coaxial connector at the junction. Intermittent contact at the BNC-style coupling is the single most common cause of spurious high-vibration trips on 3300 XL installations. Wiggle the connector while watching the monitor output — if the reading jumps, the cable is your culprit, not the probe.

3. Confirm Proximitor matching. The 330190-085-00-05 is calibrated for use with the 330180-series 8 mm Proximitor. Swapping in a 5 mm Proximitor (330175 series) will produce a sensitivity mismatch of roughly 40% — your vibration readings will be wrong and your protection setpoints will be dangerously off. Always verify the Proximitor label before powering up a replacement probe.

4. Replacement gap procedure. After installing the new probe, power the Proximitor and adjust the probe-to-shaft gap to achieve −10.0 VDC ±0.2 VDC output. Lock the locknut to the torque specified in the installation manual (typically 20–25 N·m for the 8 mm body). Do not rely on thread count alone — thermal cycling will shift the gap if the locknut is under-torqued.

5. Common fault codes on the 3500 rack. A Not OK (NOK) LED on the 3500/22M monitor paired with a gap voltage below −2 VDC typically means the probe tip is shorted to the shaft or the cable is open-circuit. A gap voltage above −18 VDC with NOK usually means the probe is too far from the target or the Proximitor supply rail has dropped. Check the −24 VDC rail at the I/O module terminal before replacing hardware.

6. Firmware and configuration. The 3500 rack does not require firmware changes when swapping a like-for-like 330190-085-00-05 probe. However, if you are migrating from an older 3300 series (non-XL) probe, re-enter the transducer scale factor in the rack configuration software — the sensitivity constant differs between generations.

Reliability in Harsh Conditions

The 330190-085-00-05 is built for environments that destroy lesser sensors. The 316L stainless steel body resists the hydrogen sulfide atmospheres common in upstream oil and gas. The integral cable sheath is rated to withstand continuous immersion in lubricating oil and intermittent exposure to steam condensate — conditions that degrade aftermarket probes within months. Vibration endurance testing covers 15 g RMS broadband excitation across 10–2000 Hz, which exceeds the structural resonance frequencies of most turbine bearing housings. The operating temperature ceiling of 177 °C means the probe survives direct contact with hot bearing housings on high-speed compressors without drift in the scale factor. ATEX and FM certification covers Zone 1 / Division 1 hazardous area installations, so you can deploy without additional intrinsic safety barriers in most configurations — though always verify against your site area classification documentation.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary industrial export corridors with direct DHL and FedEx gateway access. Standard process from confirmed order to airborne is 24–48 hours for in-stock units. DHL Express Economy delivers to most of Southeast Asia and the Middle East in 3–5 business days; DHL Express Worldwide and FedEx International Priority cover Europe and the Americas in 4–6 business days. Every shipment leaves with a full commercial invoice, packing list, and certificate of origin. HS Code 9031.80 is pre-declared to avoid customs clearance delays. For plant shutdowns or emergency turnarounds where every hour counts, contact us directly — we can arrange same-day dispatch for orders confirmed before 14:00 CST and coordinate with your freight forwarder or broker if you have a preferred carrier account. Volume orders of 5+ units qualify for sea freight consolidation with significantly reduced per-unit freight cost.
