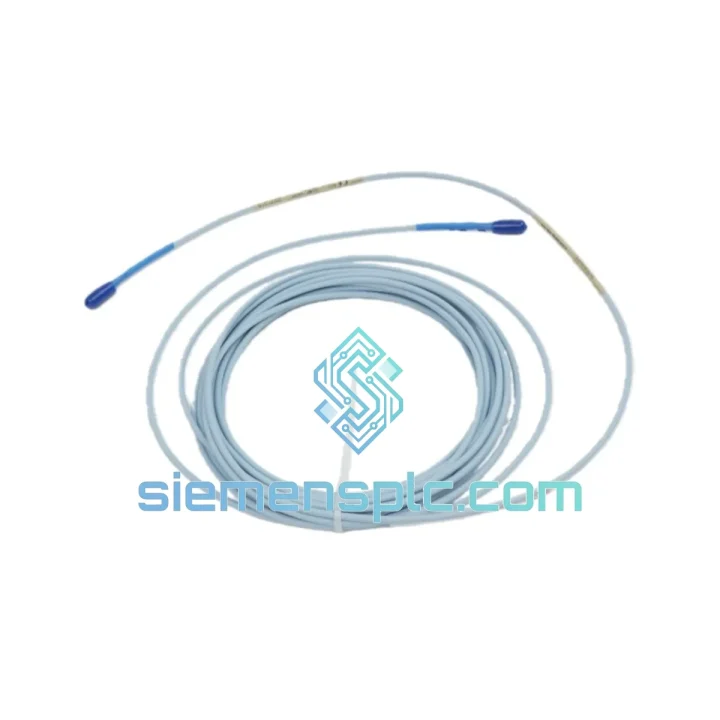

Bently Nevada 330190-130-00-05 Extension Cable – 3300 Series

Bently Nevada 330190-130-00-05 — Signal Transmission Architecture in Eddy-Current Proximity Measurement Loops

The Bently Nevada 330190-130-00-05 is a 130-inch (3,302 mm) coaxial extension cable engineered as the signal-path interconnect within the 3300 Series Proximity Transducer System. Its function is not passive: the cable’s distributed capacitance and impedance characteristics are integral to the eddy-current oscillator circuit shared between the proximity probe and the Proximitor® sensor. Any deviation in cable length, dielectric constant, or connector contact resistance directly shifts the system’s gap-voltage transfer function, making this component a calibration-critical element rather than a generic wire assembly.

In a standard 3300 Series measurement loop, the Proximitor sensor drives a high-frequency oscillator signal (nominally 1 MHz) down the coaxial cable to the probe tip. The probe’s coil generates an alternating magnetic field; eddy currents induced in the target shaft surface load the oscillator, and the resulting amplitude change is demodulated into a DC voltage proportional to gap distance. The 330190-130-00-05 cable must maintain consistent characteristic impedance across its 130-inch run to preserve oscillator Q-factor and linear measurement range — typically –10 VDC ±0.5 V at nominal gap.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330190-130-00-05 is constructed around a silver-plated copper center conductor surrounded by a PTFE dielectric and a double-layer braided shield. This architecture addresses three distinct failure modes common in rotating-machinery environments:

1. Capacitance Stability Under Thermal Cycling: PTFE exhibits a dielectric constant (εr ≈ 2.1) that varies less than 0.3% across the cable’s rated temperature span. This stability is essential because the Proximitor oscillator’s resonant frequency is partially determined by the cable’s distributed capacitance. A thermally unstable dielectric would introduce a temperature-dependent offset into the gap-voltage output, indistinguishable from actual shaft movement at the system level.

2. EMC Shielding in High-Interference Environments: The double-layer braided shield achieves greater than 85 dB of transfer impedance attenuation at 1 MHz, the primary oscillator frequency. In turbine halls and compressor stations where variable-frequency drives, bus bars, and high-current switchgear generate broadband electromagnetic interference, this shielding prevents common-mode noise from coupling into the measurement signal. The shield is terminated at both ends through the MIL-spec connectors, forming a continuous Faraday enclosure rather than a single-ended drain wire arrangement.

3. Connector Contact Resistance Governance: The factory-terminated MIL-spec connectors maintain contact resistance below 5 mΩ. Contact resistance variation is a primary source of gap-voltage drift in field-repaired cables; the factory termination eliminates this variable by applying controlled crimp force and plating thickness verified against Bently Nevada’s acceptance test procedure.

4. Mechanical Strain Relief: The connector boot and cable jacket transition are designed to withstand repeated flexure at the termination point — a common failure site in cables routed through vibrating machinery structures. The strain relief geometry limits bend radius at the connector to prevent center-conductor fatigue fracture during normal plant vibration.

System Integration Benefits

• Zero-recalibration replacement: A like-for-like swap of the 330190-130-00-05 requires no Proximitor sensor recalibration, eliminating the 2–4 hour calibration window from planned maintenance outages and reducing outage cost exposure.
• Deterministic gap-voltage linearity: Factory-matched cable capacitance preserves the Proximitor’s specified linear range (typically 0 to –18 VDC), ensuring that alarm and trip setpoints remain accurate without post-installation verification testing.
• API 670 compliance chain integrity: Machinery protection systems certified to API 670 require OEM-specified components throughout the measurement loop. Using the original part number maintains the compliance chain without requiring re-documentation of the protection system.
• Reduced diagnostic ambiguity: When a non-OEM cable is installed, any subsequent measurement anomaly requires cable characterization before root-cause analysis can proceed. The OEM cable eliminates this diagnostic variable, accelerating fault isolation.
• Broadband EMI rejection: The double-layer shield suppresses interference from adjacent VFD cabling, bus bars, and RF sources, maintaining signal-to-noise ratio above the Proximitor’s specified threshold across the full operating frequency range of the monitored machinery (typically 10 Hz to 10 kHz for vibration).
• Chemical compatibility with process environments: The outer jacket resists degradation from turbine lube oil, seal gas condensate, and cleaning solvents, maintaining jacket integrity and shield continuity over multi-year service intervals between planned inspections.
• Thermal margin for high-temperature installations: The 120 °C upper rating accommodates installations near steam turbine casings and hot-gas expanders where ambient temperatures routinely exceed 80 °C, providing a 40 °C thermal margin against derating.
• Traceability for regulated industries: Each unit carries original Bently Nevada part marking and, where available, a certificate of conformance (CoC), satisfying documentation requirements for nuclear auxiliary systems, offshore safety-critical machinery, and ISO 55000 asset management programs.

Quality Assurance & Global Logistics

Every 330190-130-00-05 unit supplied through siemensplc.com is sourced from verified industrial distribution channels carrying authentic Bently Nevada (Baker Hughes) inventory. Pre-shipment inspection covers physical part-number marking, connector seating integrity, jacket continuity, and packaging condition. Units are dispatched in anti-static, moisture-barrier packaging with desiccant inserts to protect the PTFE dielectric and connector plating during ocean or air freight transit.

Shipments originate from our Xiamen, China operations hub, with access to daily consolidated air freight services to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas. Standard air freight transit times are 3–7 business days to most destinations. Express DHL/FedEx options are available for emergency maintenance situations. All shipments include a commercial invoice, packing list, and certificate of conformance where available. Trade terms supported: EXW Xiamen, FOB Xiamen, CIF destination port. Payment: T/T wire transfer, PayPal, and LC for qualified accounts.
