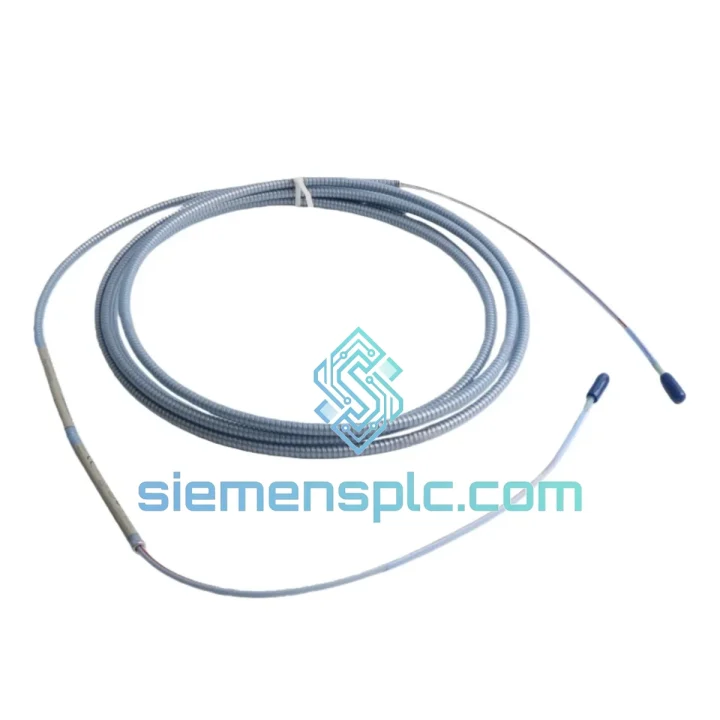

Bently Nevada 330191-00-33-90-05 Proximity Probe

330191-00-33-90-05 Proximity Probe — Stop the Clock on Your Downtime

Every minute a turbine or compressor sits idle, your operation bleeds money. The Bently Nevada 330191-00-33-90-05 eddy-current proximity probe is one of the most failure-critical sensors in any rotating machinery protection loop — and when it fails, you need a verified replacement on-site before the next shift, not next week. We stock this unit in Xiamen and ship globally via DHL/FedEx Express. Same-day dispatch on confirmed orders before 15:00 CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on turbomachinery protection systems, here are the failure modes and swap pitfalls I see most often with the 330191-00-33-90-05:

1. Gap Voltage Out of Range (Most Common)
The 3300 XL system expects a nominal gap voltage of -10.0 VDC ±0.5 V at the driver output. If your monitor is throwing a Not OK (NOK) alarm and the probe is physically intact, check gap voltage first. A reading outside -9.5 to -10.5 VDC almost always points to a probe tip contamination, cable damage, or a cracked ferrite core — not the driver. Replace the probe before condemning the driver.

2. Cable Continuity Before Swap
The 330191-00-33-90-05 uses a 9-meter integral armored coaxial cable. Before pulling the probe, use a calibrated LCR meter to check coaxial continuity and insulation resistance (>100 MΩ at 500 VDC). A shorted cable jacket caused by vibration fatigue at the conduit entry is a common misdiagnosis — the probe body is fine but the cable reads open.

3. System Gap Setting After Installation
After seating the new probe, set the physical gap to achieve -10.0 VDC at the driver output. For 8 mm probes on AISI 4140 targets, this corresponds to approximately 1.0 mm (40 mil) physical gap. Use a non-metallic feeler gauge. Do not rely on the previous probe’s gap setting — manufacturing tolerances between units can shift gap voltage by ±0.3 V.

4. Extension Cable Matching
The 330191-00-33-90-05 is a 9-meter probe. If your installation uses an extension cable (330130 Series), verify the total system cable length matches the driver’s calibrated range. Mixing cable lengths without recalibrating the driver will introduce a static offset error that looks like a shaft position drift alarm — a ghost fault that wastes hours of troubleshooting time.

5. Driver Firmware and Jumper Configuration

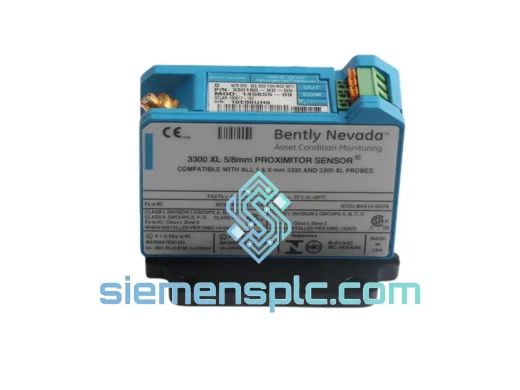

When swapping into a 3500 Series rack, confirm the driver card’s internal jumpers are set for 8 mm probe geometry (not 5 mm). On the 330180 driver, JP1 and JP2 must both be in the 8 mm position. A mismatch here will cause the scale factor to read 200 mV/mil on the monitor but the actual output will be off by ~22%, triggering nuisance high-vibration trips at startup.

6. Hazardous Area Installations
If this probe is installed in a Zone 1 or Zone 2 classified area, verify the Zener barrier or galvanic isolator is rated for the 3300 XL system. Do not substitute generic IS barriers — the system’s ATEX certification is entity-parameter specific. Incorrect barriers void the Ex certification and create a genuine safety risk.

Reliability in Harsh Conditions

The 330191-00-33-90-05 is not a lab instrument — it lives inside bearing housings, lube oil mist environments, and high-temperature turbine pedestals. Bently Nevada engineered this probe to handle what most sensors cannot:

Vibration Immunity: The armored coaxial cable and stainless steel probe body are designed to withstand continuous broadband vibration up to 20 g RMS across 10–2000 Hz. The integral cable eliminates the connector junction that is the single most common failure point on field-replaceable cable designs.

Thermal Stability: Operating range of -35°C to +121°C covers everything from cold-start Arctic conditions to the bearing pedestals of high-speed steam turbines running at full load. The ferrite core material maintains scale factor accuracy within ±1% across the full temperature range — critical for thrust position measurements where a 0.1 mm error can mean the difference between a warning and a trip.

Chemical and Moisture Resistance: The armored jacket and sealed probe tip resist lube oil, hydraulic fluid, and condensation ingress. In high-humidity coastal or offshore environments, the probe’s sealed construction prevents the moisture-induced sensitivity drift that plagues open-tip designs.

Long-Term Stability: Eddy-current technology has no moving parts and no wear mechanism. A correctly installed 330191-00-33-90-05 in a clean bearing environment routinely achieves 10+ years of service life without recalibration — provided the cable is protected from mechanical fatigue at conduit entries.

Global Express Logistics

Our Xiamen warehouse is positioned for fast transit to every major industrial hub. Here is exactly how your order moves:

Order Confirmation → Same-Day Dispatch: Orders confirmed with payment before 15:00 CST are picked, inspected, and handed to DHL Express or FedEx International Priority the same business day. You receive a tracking number within 2 hours of dispatch.

Transit Times (Estimated):

• Southeast Asia (Singapore, Malaysia, Thailand): 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days
• Europe (Germany, Netherlands, UK): 3–4 business days
• North America (USA, Canada): 3–5 business days
• Australia / New Zealand: 3–4 business days

Documentation Package: Every shipment includes a commercial invoice, packing list, certificate of origin, and our in-house inspection report. For ATEX-certified installations, we provide the relevant system-level certification documentation on request.

Customs Clearance: We pre-classify all shipments with the correct HS code and declare accurate commercial values. Our logistics team has handled export documentation for industrial automation components to 60+ countries — no surprises at customs.

Emergency Freight: For true plant-down situations, contact us directly via WhatsApp for charter freight or hand-carry options. We have coordinated next-flight-out shipments to refineries and power plants across Asia and the Middle East.
