Bently Nevada 330500-01-04 Vibration Sensor – 3300 Series

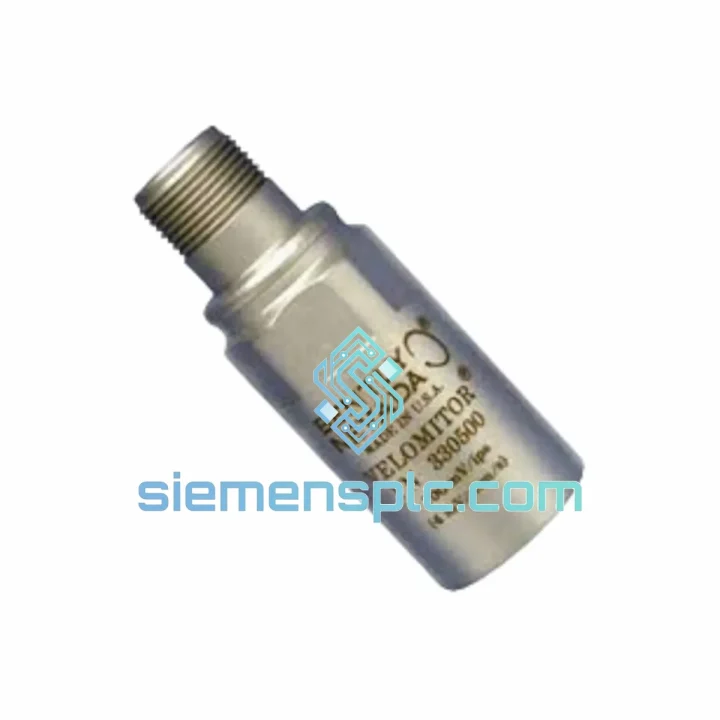

Bently Nevada 330500-01-04 Piezo-Velocity Sensor — Seismic Casing Vibration Measurement for Critical Rotating Machinery

The Bently Nevada 330500-01-04 is a piezo-velocity (seismic) transducer engineered for absolute casing vibration velocity measurement on rotating machinery in continuous-process industries. Unlike eddy-current proximity probes that track shaft relative displacement, this sensor captures the absolute motion of bearing housings and machine casings — a measurement parameter mandated by API 670 for turbines, compressors, and large pumps where casing-mounted monitoring is the primary protection strategy.

The 330500-01-04 belongs to Bently Nevada’s 3300 Velocity Sensor Series, a product line with decades of field validation in power generation, oil and gas, and petrochemical processing. Its piezoelectric crystal sensing element converts mechanical vibration into a proportional voltage signal with no external power supply required for the sensing element itself, reducing system complexity and eliminating a potential failure mode in the signal chain.

In a typical machinery protection architecture, this sensor mounts directly to the bearing housing via a threaded stud, transmitting vibration velocity data to a compatible Bently Nevada 3500/42 Velocity Monitor or 3300 XL signal conditioner. The monitor applies alarm setpoints — typically expressed in mm/s RMS or in/s peak — and triggers relay outputs to the plant DCS or safety instrumented system (SIS) when vibration exceeds defined thresholds. This closed-loop protection architecture is the backbone of API 670-compliant machinery protection systems worldwide.

The sensor’s stainless steel housing provides IP67 ingress protection, making it suitable for outdoor installations, wash-down environments, and locations with hydrocarbon mist or process fluid exposure. The operating temperature range of -40°C to +121°C (-40°F to +250°F) covers the full envelope of most steam turbine bearing housings and gas compressor casings without requiring thermal isolation mounts in standard installations.

From a signal integrity standpoint, the piezoelectric element in the 330500-01-04 exhibits a flat frequency response across 10 Hz to 1,000 Hz — the band most relevant to fundamental running speed harmonics, blade-pass frequencies, and gear mesh frequencies on equipment operating between 600 RPM and 60,000 RPM. The high-impedance output is conditioned by the companion signal conditioner before transmission to the monitor rack, ensuring that cable capacitance and electromagnetic interference do not degrade measurement accuracy over long cable runs typical in large turbine halls.

For plant reliability engineers managing aging machinery protection infrastructure, the 330500-01-04 is a direct OEM-equivalent replacement for earlier 3300 series velocity sensors. The connector interface, mounting thread, and signal output characteristics are maintained across the product generation, allowing field replacement without rewiring, recalibration, or changes to monitor configuration — a critical operational advantage during planned turnarounds where minimizing downtime is paramount.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The core sensing element of the 330500-01-04 is a piezoelectric crystal stack — typically lead zirconate titanate (PZT) — mechanically coupled to a seismic mass. When the housing accelerates due to vibration, the inertial mass compresses or tensions the crystal, generating a charge proportional to the applied force. This charge is converted to a voltage by the internal impedance network and presented at the output connector as a velocity-proportional signal after integration of the acceleration signal within the signal conditioner.

EMC Design: The stainless steel housing acts as a Faraday shield, attenuating radiated electromagnetic interference from variable-frequency drives, high-voltage switchgear, and RF sources common in industrial environments. The coaxial cable assembly maintains shield continuity from sensor to monitor rack, preventing ground loops that would manifest as 50/60 Hz noise on the vibration channel — a critical design requirement in power plant environments where large generators and transformers create intense electromagnetic fields.

Mechanical Resonance Management: The sensor’s internal mechanical design places its natural resonant frequency well above the 1,000 Hz upper measurement limit. This ensures that the sensor does not amplify signals near its resonance within the measurement band, maintaining flat frequency response and preventing false high-vibration alarms caused by sensor resonance rather than actual machinery vibration.

Thermal Stability: The piezoelectric element’s sensitivity coefficient (pC/g) exhibits a defined temperature dependence. Bently Nevada’s design compensates for this through material selection and mechanical preload, maintaining measurement accuracy across the full -40°C to +121°C operating range without requiring external temperature compensation circuits in the monitor.

No Active Electronics in Sensor Body: Unlike IEPE (Integrated Electronics Piezo-Electric) accelerometers that embed a charge amplifier in the sensor housing, the 330500-01-04 uses a passive piezoelectric output. This eliminates the risk of electronics failure at elevated temperatures near bearing housings and simplifies intrinsic safety certification for hazardous area installations.

System Integration Benefits

• Direct API 670 Compliance Path: The 330500-01-04 is designed to interface with Bently Nevada 3500 Series monitors, which are the industry reference for API 670-compliant machinery protection. Specifying this sensor eliminates compatibility verification steps during system commissioning.
• Zero-Recalibration Replacement: OEM-equivalent output characteristics allow field replacement during turnarounds without requiring monitor recalibration or setpoint adjustment, reducing maintenance window duration.
• Deterministic Alarm Response: The passive piezoelectric output has no internal processing latency. Signal propagation from mechanical event to monitor input is limited only by cable propagation delay — effectively instantaneous for machinery protection purposes — ensuring alarm response times meet SIL-rated protection system requirements.
• Dual-Channel Redundancy Support: Two sensors can be mounted at 90° on the same bearing housing to provide X-Y vibration vector data, enabling orbit analysis and directional fault diagnosis within System 1 software without additional hardware.
• Long Cable Run Capability: The high-impedance piezoelectric output, when used with Bently Nevada’s specified coaxial cable and signal conditioner input impedance, maintains signal integrity over cable runs exceeding 300 meters — essential for large turbine halls where monitor racks are located remotely from machinery.
• System 1 Software Integration: Data from the 330500-01-04 via the 3500/42 monitor is fully accessible in Bently Nevada System 1 for continuous waveform recording, spectrum analysis, and trend alarming — enabling condition-based maintenance programs without additional data acquisition hardware.
• Hazardous Area Adaptability: The passive sensor design simplifies ATEX/IECEx zener barrier or galvanic isolator selection for Zone 1/Zone 2 installations, as there is no internal power consumption to account for in the intrinsic safety energy budget calculation.
• Reduced Lifecycle Cost: No moving parts, no internal electronics, and no consumable components result in a mean time between failures (MTBF) measured in decades under normal operating conditions, minimizing spare parts inventory requirements and unplanned replacement costs.
