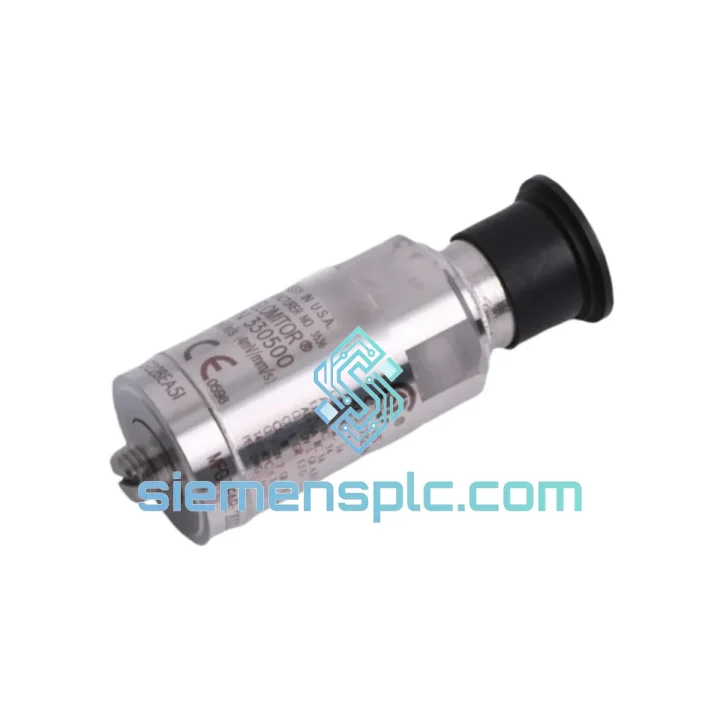

Bently Nevada 330500-02-02 Proximity Transducer – 3300 Series

Bently Nevada 330500-02-02 — Eddy Current Proximity Transducer for Continuous Shaft Monitoring

The Bently Nevada 330500-02-02 is an 8 mm eddy current proximity transducer belonging to the 3300 Series machinery protection platform. Its operating principle is grounded in electromagnetic induction: a high-frequency oscillating current (typically 1.0–1.5 MHz) is driven through the probe coil, generating a localized magnetic field at the probe tip. When a conductive target — typically a steel or alloy shaft — enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and producing a proportional DC voltage shift at the Proximitor output. This non-contact, wear-free measurement mechanism makes the 330500-02-02 suitable for continuous 24/7 deployment in rotating machinery where bearing journal radial displacement, axial thrust position, and differential shaft expansion must be tracked with sub-micron resolution.

Within a control loop architecture, this transducer functions as the primary sensing element feeding the 3300 XL Proximitor signal conditioner, which in turn supplies a calibrated ±24 VDC linear output to the 3500 Series monitor rack. The monitor rack performs alarm threshold comparison, OK relay logic, and 4–20 mA retransmission to the DCS historian. The 330500-02-02 therefore sits at the deterministic front end of a multi-layer machinery protection chain — its output accuracy directly governs the reliability of every downstream trip and alarm decision.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Coil Geometry and Field Confinement: The 330500-02-02 uses a single-coil, shielded probe architecture. The ferrite shield cup surrounding the coil constrains the electromagnetic field to a forward-facing cone with a depth-of-field approximately equal to the probe tip diameter (8 mm). This tight field confinement reduces sensitivity to adjacent metallic structures — such as keyways, oil holes, or nearby shaft collars — that would otherwise introduce periodic noise artifacts at shaft rotational frequency. The result is a cleaner 1× and 2× vibration spectrum with a signal-to-noise ratio sufficient for early sub-harmonic fault detection.

EMC Design and Cable Shielding: The integral 0.5 m armored cable uses a coaxial construction with a braided copper shield terminated at the Proximitor chassis ground. This arrangement provides greater than 60 dB of common-mode rejection against radiated interference from adjacent VFD switching transients (typically 5–50 kHz) and high-voltage bus bars. In environments where cable runs exceed 0.5 m, the 3300 Series extension cable (e.g., 330130-045-00-CN) maintains the same coaxial impedance characteristic, preserving calibration accuracy across the full extension length.

Thermal Stability and Drift Compensation: The probe coil is wound on a thermally stable ceramic former. Over the rated −35 °C to +177 °C range, the scale factor drift is specified at less than ±0.5% of full scale per 55 °C change. For hot-section turbine bearing pedestals where ambient temperatures routinely exceed 120 °C, this thermal stability eliminates the need for temperature-compensated correction factors in the DCS historian, simplifying alarm setpoint management.

Mechanical Mounting Integrity: The probe body is machined from 316 stainless steel with a 3/8-24 UNF thread form. The thread engagement length and locknut torque specification (typically 5–7 N·m) are designed to resist loosening under continuous vibration loads up to 20 g broadband. The armored cable exit is strain-relieved with a stainless ferrule, preventing cable fatigue at the probe body junction — a common failure point in high-vibration installations.

System Integration Benefits

• Direct API 670 Compliance: The 330500-02-02 meets API 670 Fifth Edition requirements for proximity transducer systems, enabling direct use in machinery protection systems for turbines, compressors, and pumps without additional certification overhead.
• Plug-and-Play 3300 Series Compatibility: Electrically and mechanically interchangeable with all 3300 XL 8 mm Proximitor systems (330180-X1-CN), eliminating recalibration when replacing worn probes during scheduled maintenance windows.
• DC-to-10 kHz Flat Frequency Response: Captures both low-frequency rotor dynamics (sub-synchronous instability at 0.3–0.5×) and high-frequency structural resonances, providing a single sensor solution across the full diagnostic frequency range of interest.
• Non-Contact Operation Eliminates Wear: With no physical contact between probe and shaft, the sensor has no mechanical wear mechanism. Mean time between replacement is governed by environmental degradation rather than contact fatigue, reducing planned maintenance frequency.
• High Sensitivity for Early Fault Detection: At 7.87 V/mm, a 25 µm (1 mil) shaft displacement change produces a 197 mV output shift — well above the noise floor of standard 3500 Series monitor input circuits, enabling alarm threshold settings as tight as 50 µm without false-trip risk.
• Deterministic Output for DCS Integration: The linear DC voltage output (no A/D conversion at the probe level) ensures zero latency between shaft displacement and Proximitor output, supporting deterministic real-time response in safety-instrumented systems with SIL 2 loop requirements.
• Diagnostic Transparency via OK Circuit: The 3300 XL Proximitor paired with this probe continuously monitors the probe circuit impedance. An open circuit, short, or out-of-range gap condition drives the Proximitor output to a defined fault voltage (typically below −24 V or above 0 V), triggering the monitor’s NOT OK relay and providing unambiguous fault annunciation to the DCS without requiring additional diagnostic wiring.
• Scalable to Redundant Architectures: Two 330500-02-02 probes can be mounted at 90° (X–Y configuration) on the same bearing journal to enable full orbit analysis. The 3500/42 monitor supports dual-channel input from this configuration, enabling elliptical orbit plotting for rotor dynamic diagnostics without additional hardware.
• Minimal Installation Footprint: The 8 mm probe diameter and 3/8-24 UNF thread allow installation in compact bearing pedestals where larger 11 mm or 25 mm probes cannot be accommodated, expanding applicability to smaller rotating equipment frames.
• Long-Term Calibration Stability: Factory calibration is traceable to NIST standards. Under stable thermal conditions, recalibration intervals of 24–36 months are achievable, reducing lifecycle calibration costs compared to contact-type displacement sensors.

Quality Assurance & Global Logistics

Every 330500-02-02 unit supplied through siemensplc.com is sourced from verified Bently Nevada (Baker Hughes) authorized distribution channels. Each unit undergoes a pre-shipment inspection protocol covering label authenticity verification against OEM reference markings, connector pin integrity check, cable sheath continuity inspection, and dimensional verification of the probe tip and thread form. Units that do not pass all inspection criteria are quarantined and not dispatched.

Shipments originate from our Xiamen, China warehouse facility. Xiamen’s port infrastructure supports DHL Express, FedEx International Priority, and UPS Worldwide Expedited services with typical transit times of 3–5 business days to Southeast Asia, 4–6 days to the Middle East and Europe, and 5–7 days to North America. All export shipments are accompanied by a commercial invoice, packing list, and certificate of origin. HS Code 9031809090 applies to this product category. Customs pre-clearance documentation is available upon request for time-sensitive procurement requirements.

A 12-month warranty against manufacturing defects is provided on all genuine units. Warranty claims are processed via email with photographic evidence of the defect; replacement units are dispatched within 5 business days of claim approval. This warranty covers electrical performance deviation from published specifications and mechanical defects in the probe body, cable, and connector — it does not cover damage resulting from installation errors, overvoltage, or mechanical impact.
