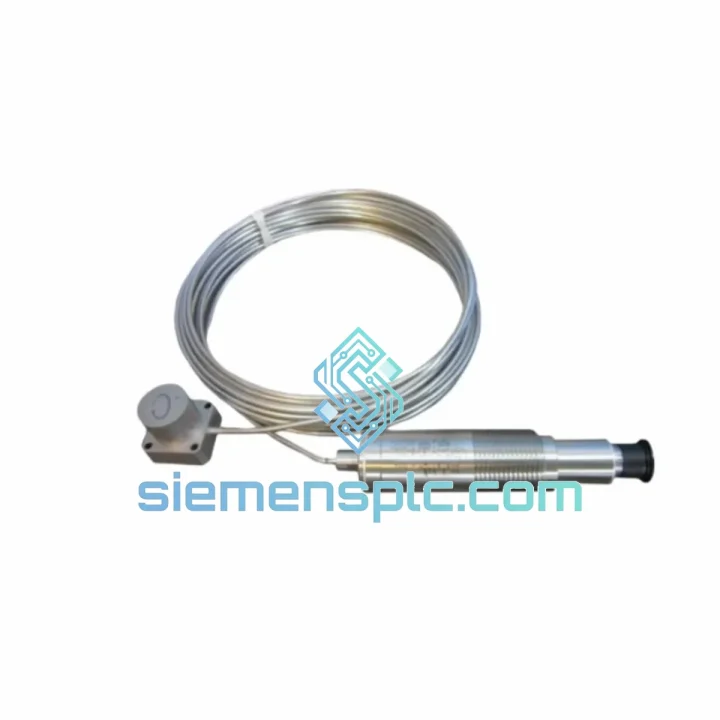

Bently Nevada 330750-40 Velocity Transducer – 3300 Series

Bently Nevada 330750-40 High Temperature Velomitor: Velocity Measurement at the Thermal Limit of Rotating Machinery

In continuous-duty rotating equipment — gas turbines, steam turbines, hot-service centrifugal compressors, and boiler feed pumps — the bearing housing is simultaneously the most mechanically stressed and thermally hostile measurement point in the machine train. Standard ICP® accelerometers, rated to 120°C case temperature, lose piezoelectric sensitivity and internal amplifier bias stability well before the machine reaches its thermal operating ceiling. The result is signal drift, false alarms, or — more dangerously — silent sensor failure that leaves the protection system operating on stale data.

The Bently Nevada 330750-40 is the high-temperature variant of the Velomitor® family, an integrated circuit piezoelectric (ICP®-architecture) velocity transducer engineered specifically for direct bearing-housing mounting in environments where ambient and surface temperatures exceed the capability of standard-grade sensors. Within the Bently Nevada 3300 Series Machinery Protection System — the industry reference platform for continuous turbomachinery monitoring — the 330750-40 functions as the field-side velocity sensing element, delivering a low-impedance, calibrated voltage output proportional to vibration velocity directly to the rack-mounted monitor card.

Unlike displacement proximity probes, which measure shaft relative motion and require a conductive target surface, the 330750-40 measures absolute casing velocity. This makes it the correct sensor choice for machines where shaft access is restricted, where bearing housings are anti-friction (rolling element) type, or where ISO 10816 / ISO 20816 casing velocity criteria govern the alarm and trip setpoints. The velocity output — expressed in mm/s peak or RMS — maps directly to the severity zones defined in those standards without requiring additional signal processing or integration stages in the monitor.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330750-40 departs from conventional accelerometer architecture in one fundamental respect: the internal signal conditioning ASIC is thermally decoupled from the piezoelectric sensing stack through a controlled thermal gradient path within the stainless steel housing. Standard ICP® sensors co-locate the JFET input stage and the piezo element in close thermal proximity; at elevated temperatures, junction leakage current in the JFET rises exponentially, increasing the noise floor and shifting the quiescent bias point outside the monitor’s valid input window.

Bently Nevada addresses this in the 330750-40 by extending the thermal path between the mounting base (the hottest point, in direct contact with the bearing housing) and the electronics cavity. The piezoelectric stack — a shear-mode PZT ceramic selected for its high Curie temperature (typically >300°C for high-temperature grades) — is mechanically isolated from the housing base via a thermally resistive standoff. This arrangement allows the sensing element to operate at bearing-housing temperature while the ASIC cavity temperature remains within the amplifier’s rated junction range.

The output stage drives a low-impedance (<100 Ω) voltage signal onto the coaxial cable. This low source impedance is critical in industrial environments: it makes the signal inherently resistant to capacitive coupling from adjacent power cables and to the ground loop noise that plagues high-impedance charge-mode sensors. The armored integral cable provides both mechanical protection and a continuous shield drain path, ensuring that the EMC performance of the sensor is not compromised by field wiring practices.

The 1/4-28 UNF stud mount provides a rigid, repeatable mechanical coupling to the bearing housing. Stud mounting minimizes the resonance-induced amplitude error that affects adhesive or magnetic mounts at frequencies above 2,000 Hz — a relevant consideration when monitoring blade-pass frequencies on multi-stage compressors or gear mesh frequencies on gearbox-driven equipment. The hermetically sealed 316L stainless steel housing resists hydrogen sulfide (H₂S), chloride-bearing process atmospheres, and steam condensate — the three most common corrosive agents in oil & gas and power generation bearing environments.

System Integration Benefits

The 330750-40 delivers measurable operational advantages when integrated into a Bently Nevada 3300 or 3500 Series protection architecture:

• Direct ISO 10816 / ISO 20816 Compliance: Velocity output maps without conversion to the severity zones (Zone A/B/C/D) defined in both standards, eliminating the integration error introduced when deriving velocity from an accelerometer signal in the monitor firmware.
• Deterministic Alarm Response: The low-impedance output and wide frequency bandwidth (4.5 Hz – 5 kHz) ensure that the monitor card receives a signal with <1 ms group delay across the protection band, supporting the deterministic trip response required by API 670 machinery protection specifications.
• Reduced Wiring Infrastructure: ICP® architecture requires only a standard two-conductor coaxial cable run to the monitor — no separate power supply, no charge amplifier, no signal conditioner in the field junction box. This reduces installed cost and eliminates an additional failure mode from the signal chain.
• Plug-Compatible with 3300/16 Dual Velocity Monitor: The 330750-40 connects directly to the Bently Nevada 3300/16 monitor card’s ICP® input without adapter hardware. Channel configuration (full-scale range, alarm setpoints, time constants) is performed entirely within the monitor — no field calibration of the sensor is required after installation.
• Diagnostic Transparency via Bias Voltage Monitoring: The 3300/16 and 3500/42 monitor cards continuously monitor the sensor’s quiescent bias voltage. A bias voltage outside the 10–12 VDC window indicates an open circuit (cable break), short circuit, or sensor failure — providing a positive, self-announcing fault indication rather than a silent failure mode.
• Thermal Margin for Process Upset Conditions: The 177°C case rating provides a 40–60°C margin above the normal bearing housing operating temperature on most turbomachinery. This margin accommodates process upset conditions — loss of cooling water, bearing lubrication degradation — where housing temperatures spike transiently before the machine trips on vibration or temperature.
• Compatibility with Intrinsic Safety Barriers: The sensor’s ICP® electrical interface is compatible with Zener barriers and galvanic isolators certified for Zone 1 / Division 1 hazardous area installations, enabling deployment in gas compression and refinery applications without sensor redesign.
• Long Cable Drive Capability: The low-impedance output stage maintains signal integrity over cable runs up to 300 m (1,000 ft) with standard RG-58 coaxial cable — relevant for large turbine hall installations where the monitor rack is located in a remote equipment room.

Quality Assurance & Global Logistics

Every Bently Nevada 330750-40 unit dispatched from our Xiamen, China facility is a genuine OEM component sourced through verified industrial supply channels. Bently Nevada (Baker Hughes) manufactures the Velomitor series to API 670 field device requirements, with each production lot subject to factory acceptance testing covering sensitivity calibration, frequency response verification, and high-temperature soak testing at rated case temperature.

Upon receipt at our Xiamen warehouse, each unit undergoes a structured incoming inspection: part number and revision label verification against Bently Nevada documentation, housing and connector integrity check, and bias voltage continuity test using a calibrated ICP® signal conditioner. Units that do not pass inspection are quarantined and not offered for sale. A 12-month warranty from shipment date covers manufacturing defects and functional failures under normal operating conditions.

Logistics from Xiamen to global destinations is handled via DHL Express, FedEx International Priority, and UPS Express — with typical transit times of 3–5 business days to Europe, North America, the Middle East, and Southeast Asia. All shipments include commercial invoice, packing list, and certificate of conformance. Export classification and HS code documentation are prepared for each order. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST.
