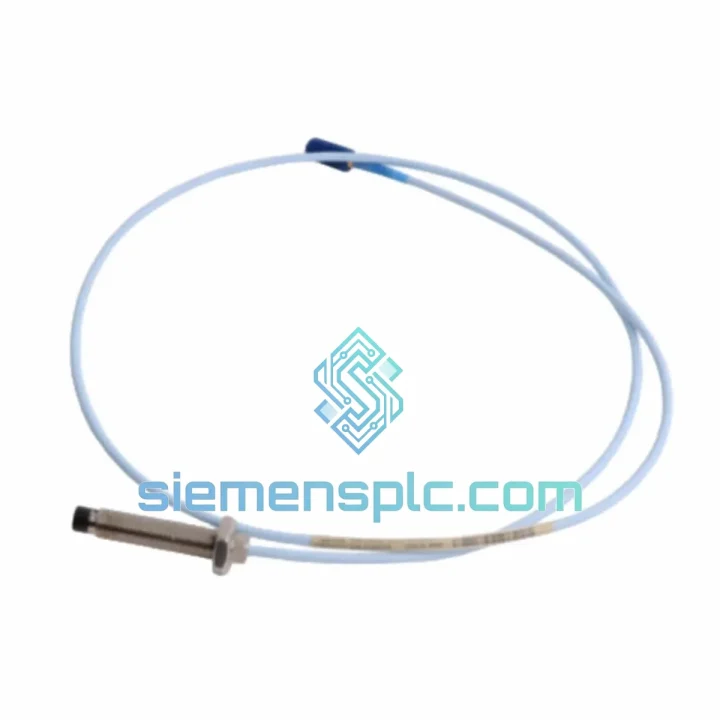

Bently Nevada 330877-080-37-00 Extension Cable – 3300 XL

Bently Nevada 330877-080-37-00: 8-Meter Coaxial Extension Cable for 3300 XL Eddy-Current Proximity Measurement Chains

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Within a machinery protection architecture, the signal chain between a proximity probe and its proximitor/oscillator is not a passive conductor — it is a precision transmission line. The Bently Nevada 330877-080-37-00 is an 8.0-meter coaxial extension cable engineered specifically for the 3300 XL Proximity Transducer System, maintaining the defined characteristic impedance and capacitance-per-unit-length that the proximitor’s internal oscillator circuit depends on to produce a calibrated gap voltage output. Any deviation in cable electrical parameters — whether from a non-specified substitute or a degraded OEM cable — directly shifts the oscillator’s operating point, introducing a DC offset error into the gap measurement and corrupting the dynamic vibration signal superimposed on it.

The 3300 XL system operates on the eddy-current principle: the proximitor drives a high-frequency oscillation (typically in the range of 200 kHz) through the probe coil. The extension cable carries this drive signal from the proximitor to the probe, and simultaneously returns the modulated signal back. The cable’s coaxial geometry — center conductor, dielectric, and outer shield — must present a consistent impedance across its 8-meter length to prevent reflections that would appear as noise on the vibration channel. The 330877-080-37-00 is factory-characterized to meet these requirements, with the -080 suffix in the part number encoding the 8.0-meter nominal length and the -37-00 suffix specifying the connector and jacket configuration for standard industrial installations.

This cable is deployed across power generation, oil and gas, petrochemical refining, and heavy rotating machinery applications globally. It connects to 3300 XL 8mm proximity probes (330730 series) and 3300 XL proximitor/oscillators (330180 series), forming the complete transducer chain that feeds shaft radial vibration, axial position, and differential expansion data to Bently Nevada 3500 series rack monitors and System 1 condition monitoring software.

Technical Parameters

Hardware Logical Analysis

The 330877-080-37-00 functions as a transmission line segment within a resonant oscillator loop. The 3300 XL proximitor contains a Colpitts-type or equivalent LC oscillator whose resonant frequency is determined in part by the total capacitance presented at its probe port — a value that includes the probe coil capacitance, the extension cable’s distributed capacitance, and the proximitor’s internal tuning capacitance. Bently Nevada specifies the extension cable’s capacitance-per-meter to a tight tolerance so that the total loop capacitance remains within the oscillator’s linear operating range across the full gap measurement span (typically 0 to 2.54 mm for 8mm probes, corresponding to approximately -2 VDC to -18 VDC output).

EMC Design: The braided coaxial shield provides a continuous Faraday enclosure around the signal conductor. In industrial environments where variable-frequency drives, high-current bus bars, and induction motors generate broadband electromagnetic interference from 50 Hz to several hundred kilohertz, an unshielded or poorly terminated cable would couple noise directly onto the proximity signal. The 330877-080-37-00’s shield is terminated at both ends through the connector bodies, creating a low-impedance return path that shunts induced currents away from the center conductor. This is particularly significant because the proximity signal’s dynamic component — the vibration waveform — operates at shaft rotational frequency and its harmonics, typically 10 Hz to 1 kHz, well within the interference band of most plant electrical equipment.

Impedance Continuity: Any impedance discontinuity along the cable — caused by a pinched dielectric, a corroded connector, or a splice with mismatched cable — creates a partial reflection of the 200 kHz carrier. These reflections appear as standing waves that alter the effective impedance seen by the proximitor, shifting its calibration curve. The 330877-080-37-00’s factory-controlled geometry ensures impedance uniformity along its 8-meter length, eliminating this failure mode when installed per Bently Nevada’s cable routing guidelines (minimum bend radius maintained, no sharp kinks, connectors fully seated and locked).

Connector Integrity: The -37-00 connector configuration uses a threaded coupling mechanism that maintains consistent contact resistance under vibration. In rotating machinery installations, the cable itself is subject to low-amplitude vibration transmitted through the machine structure. A connector that relies solely on friction fit would develop intermittent contact resistance over time, producing noise spikes on the vibration channel that could trigger false alarms in the 3500 rack’s alert and danger comparators.

System Integration Benefits

• Calibration Preservation: Using the factory-specified 330877-080-37-00 maintains the proximitor’s calibration curve without field re-characterization. Substituting a non-specified cable requires a full system recalibration per Bently Nevada’s calibration procedure, which demands a calibration fixture, a precision gap measurement tool, and a calibrated voltmeter — a process that takes 2–4 hours per channel and introduces human error risk.
• Deterministic Gap Voltage Output: The cable’s controlled capacitance ensures the proximitor’s output voltage tracks the probe-to-target gap linearly across the measurement range, supporting accurate alarm setpoint configuration in the 3500 rack (typically Alert at 125 µm pp, Danger at 250 µm pp for turbine radial vibration per API 670).
• Phase-Accurate Vibration Data: The cable’s consistent propagation delay across its 8-meter length preserves the phase relationship between vibration channels. In a two-probe (X-Y) radial vibration measurement setup, phase accuracy is essential for correct orbit plot generation in System 1 — a distorted orbit caused by phase error between channels can misidentify a 1X unbalance condition as a rub or misalignment.
• Reduced Noise Floor: The braided shield and controlled dielectric minimize the cable’s susceptibility to triboelectric noise — charge generation caused by mechanical flexing of the cable jacket. In installations where the cable is routed through areas with airflow-induced vibration, triboelectric noise can mask low-amplitude sub-synchronous vibration components that are early indicators of fluid instability in journal bearings.
• Direct Plug-and-Play Replacement: The 330877-080-37-00 replaces a failed or degraded cable without any modification to the proximitor, probe, or monitoring rack. No jumper changes, no configuration edits in the 3500 rack, no recalibration — the system returns to service with the same alarm setpoints and scale factors as before.
• Compatibility with 3500 Rack Diagnostics: The 3500 rack’s I/O module performs continuous transducer health monitoring, checking that the proximitor output voltage remains within the valid measurement range. A cable with correct electrical characteristics ensures the proximitor operates within its specified output range, preventing nuisance “Not OK” status indications that would mask genuine transducer faults.
• Support for API 670 Compliance: API 670 (Machinery Protection Systems) specifies that all components in the measurement chain — probe, extension cable, proximitor — must be from the same manufacturer’s qualified system. Using the OEM-specified 330877-080-37-00 maintains compliance with this standard, which is a contractual requirement for machinery in many oil and gas and power generation facilities.
• Long-Term Spare Parts Availability: Stocking the correct OEM part number eliminates the risk of installing a dimensionally similar but electrically incompatible cable during an emergency shutdown, where time pressure increases the likelihood of specification errors.

Quality Assurance & Global Logistics

Every Bently Nevada 330877-080-37-00 unit supplied through siemensplc.com is sourced from verified distribution channels with full part traceability. Prior to dispatch, each cable undergoes visual inspection of connector bodies for thread integrity and contact pin condition, jacket inspection for cuts, abrasions, or deformation, and label verification against the ordered part number. A certificate of conformance and packing list accompany every shipment. Test reports are available upon request for quality audit purposes.

Packaging uses anti-static inner wrap and moisture-resistant outer cartons, protecting connector contacts and cable geometry during international transit. Shipments originate from our warehouse in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Typical transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East, and 1–2 business days to Hong Kong, Taiwan, and South Korea. For urgent plant shutdown situations, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

All shipments include full tracking from dispatch to delivery. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to meet customs requirements in the destination country. HS code classification is provided for all shipments to facilitate smooth customs clearance.

Warranty: 12 months from date of shipment against manufacturing defects under normal operating and storage conditions. Warranty claims are processed with replacement dispatch within 5 business days of defect confirmation.
