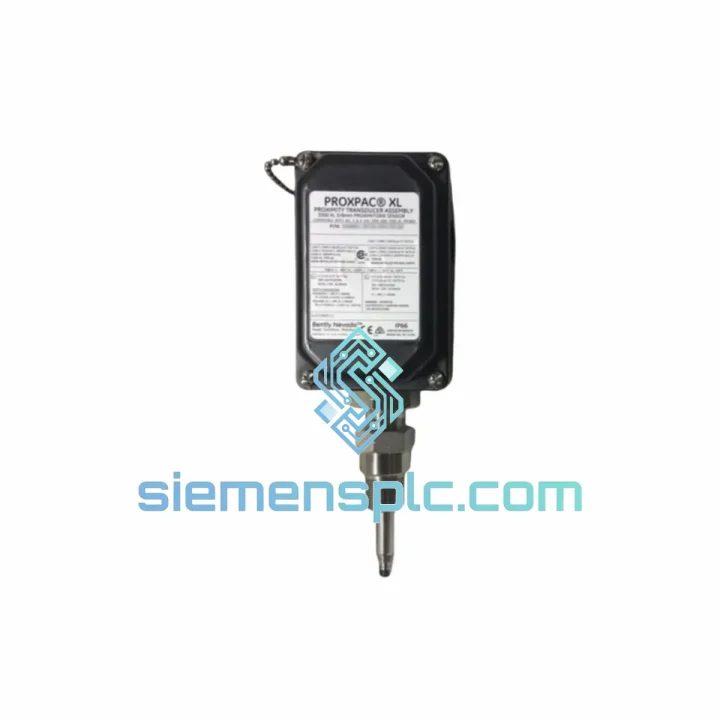

Bently Nevada 330880-28-15-035-00-02 Proximity Transducer – PROXPAC XL

Bently Nevada 330880-28-15-035-00-02: Factory-Matched PROXPAC XL Assembly for Continuous Shaft Monitoring

The Bently Nevada 330880-28-15-035-00-02 is a pre-configured PROXPAC XL Proximity Transducer Assembly from the 3300 Series platform, engineered for continuous, non-contact measurement of radial shaft vibration and axial position in rotating machinery. Unlike field-assembled transducer chains, this unit integrates a 28 mm eddy-current probe, a 15 ft (4.57 m) extension cable, and a 35 ft (10.67 m) Proximitor® sensor cable into a single factory-calibrated package. The matched-component architecture eliminates inter-unit sensitivity drift — a critical requirement in API 670-compliant machinery protection systems where measurement uncertainty directly affects trip threshold accuracy.

The operating principle relies on eddy-current induction: the probe tip generates a high-frequency electromagnetic field (typically 1.0 MHz oscillator frequency) that induces circulating currents in the conductive target shaft. As the gap between probe face and shaft surface changes, the loading on the oscillator circuit changes proportionally, producing a DC-coupled voltage output linear across the calibrated gap range. The Proximitor® sensor conditions this signal to a nominal sensitivity of 200 mV/mil (7.87 V/mm), with a DC output range of approximately −2 VDC to −18 VDC over the linear measurement span. This output is directly compatible with 3300 and 3500 Series monitor input cards without signal conditioning adapters.

In turbomachinery protection architectures, the 330880-28-15-035-00-02 is typically deployed in pairs per bearing plane — one probe at 45° left and one at 45° right of the vertical axis — to enable full orbital trajectory reconstruction in System 1® software. The 35 ft Proximitor cable length accommodates installations where the junction box is located outside the machine casing but within the same equipment bay, a common layout in gas turbine and centrifugal compressor packages.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330880-28-15-035-00-02 addresses three hardware-level challenges common in high-vibration industrial environments:

1. Matched-Impedance Cable Chain: The extension cable between probe and Proximitor is not a generic coaxial run — it is impedance-matched to the probe’s oscillator circuit. Mismatched cables alter the resonant frequency of the LC tank circuit inside the Proximitor, shifting the sensitivity curve and introducing non-linearity at the extremes of the gap range. The factory-matched assembly guarantees that the cable’s distributed capacitance and inductance fall within the Proximitor’s compensation range, maintaining ±0.5% linearity across the full measurement span.

2. EMC Shielding Architecture: The probe cable uses a triaxial shielding configuration — inner conductor, inner shield (driven at guard potential by the Proximitor’s buffer amplifier), and outer shield (grounded at the Proximitor end only). This driven-guard topology reduces cable capacitance loading on the oscillator and provides effective rejection of common-mode interference from variable-frequency drives, high-current bus bars, and RF sources common in turbine control rooms. The result is a signal-to-noise ratio sufficient to resolve shaft motion at sub-micron amplitudes.

3. Thermal Compensation in the Proximitor Circuit: The Proximitor® sensor incorporates temperature-compensated oscillator components. As ambient temperature varies across the −51°C to +85°C operating range, passive component drift in uncompensated circuits would shift the DC bias point and alter sensitivity. The 3300 Series Proximitor uses a thermistor-based compensation network in the demodulator stage to maintain sensitivity within ±1% across the full thermal envelope — a specification that matters in outdoor compressor stations subject to seasonal temperature swings exceeding 80°C.

4. Connector Suffix Logic (-00-02): The last two digits of the part number encode the connector configuration at the Proximitor output. The -02 suffix designates a specific field-wiring connector pinout used with certain junction box termination blocks. Substituting a -00 suffix unit in a -02 wiring harness will result in incorrect signal routing to the monitor input card — a failure mode that produces no immediate alarm but corrupts the vibration measurement silently.

System Integration Benefits

• Zero-Calibration Installation: Factory-matched sensitivity eliminates the need for field gap calibration with a voltmeter and shim stock. The installer sets the probe gap to the nominal value (typically 1.0 mm / −10.4 VDC) using the published gap-voltage table, and the system is ready for commissioning.
• Direct Monitor Compatibility: Output signal is natively compatible with 3500/40M, 3500/42M, 3500/45, 3500/46M, 3300/16, 3300/20, and 3300/25 monitor input cards. No signal conditioning modules or range adapters are required.
• Orbital Plot Reconstruction: When deployed in XY pairs, the DC-coupled outputs feed directly into System 1® software for real-time Bode, polar, and orbit plot generation — enabling phase-referenced vibration analysis without additional hardware.
• Deterministic Alarm Response: The linear voltage output allows monitor firmware to apply precise alert and danger thresholds in engineering units (µm pk-pk or mil pk-pk) without software scaling corrections, reducing the risk of threshold misconfiguration during commissioning.
• Hazardous Area Deployment: ATEX and IECEx certified variants support installation in Zone 1 and Zone 2 classified areas, covering the majority of onshore and offshore oil and gas applications without additional barriers in the standard configuration.
• Reduced Spare Parts Complexity: A single PROXPAC assembly replaces three separate line items (probe, extension cable, Proximitor) in the spare parts inventory. This simplifies procurement, reduces storage footprint, and eliminates the risk of stocking mismatched component combinations.
• Diagnostic Transparency: The Proximitor’s output voltage at rest (no shaft rotation) provides a direct readout of the static gap. Maintenance personnel can verify probe installation depth and detect probe face contamination or mechanical loosening without removing the probe from the bearing housing.
• Long-Term Measurement Stability: The eddy-current measurement principle is immune to shaft surface contamination by oil film, condensation, or light deposits — conditions that degrade optical and capacitive displacement sensors. This characteristic is particularly relevant in steam turbine applications where bearing oil mist is present continuously.

Quality Assurance & Global Logistics

Every unit of the 330880-28-15-035-00-02 supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) OEM stock. Prior to dispatch, each assembly undergoes a structured pre-shipment inspection protocol: visual examination of probe tip, cable jacket, and connector bodies for mechanical damage; continuity and insulation resistance verification on the cable chain; and output voltage check at a known reference gap to confirm sensitivity is within the factory specification band.

Shipments originate from our warehouse in Xiamen, China, a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export documentation — commercial invoice, packing list, and certificate of conformance — is prepared for every order. For customers in regulated industries requiring full traceability, original Bently Nevada packaging and serialization records are available upon request.

Typical transit times: 3–5 business days to Europe and North America via express courier; 5–7 business days to Southeast Asia and the Middle East. EXW Xiamen terms are available for freight-forwarder arrangements on bulk orders. All shipments are insured at declared value. Export classification is handled in compliance with applicable dual-use regulations.

The 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize machine downtime.
