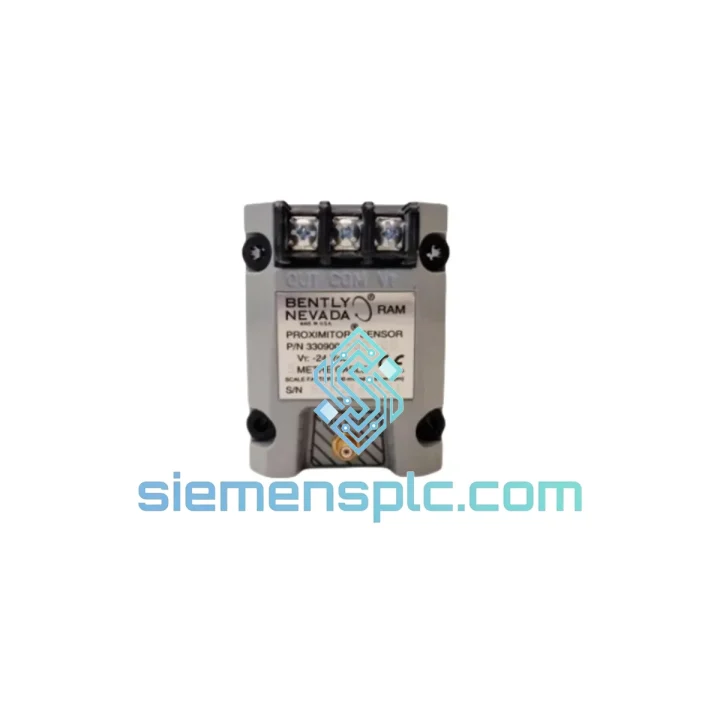

Bently Nevada 330900-50-00 Proximitor Sensor – 3300 Series

Bently Nevada 330900-50-00 RAM Proximitor Sensor: Shaft Dynamics Measurement at the Core of Machinery Protection

In any rotating machinery protection architecture — whether a 300 MW steam turbine train, a high-speed centrifugal compressor, or a boiler feed pump — the proximitor sensor is the first active element in the signal chain. It converts a physical gap distance between probe tip and shaft surface into a calibrated DC voltage that the monitoring rack interprets as displacement, vibration amplitude, or axial position. When that element fails or drifts out of calibration, the entire protection loop is compromised. The Bently Nevada 330900-50-00 is the oscillator/demodulator module within the 3300 Series probe system that performs this conversion with the precision and stability that API 670-compliant machinery protection demands.

The 330900-50-00 is a Remote Adjustable Mounting (RAM) proximitor, meaning the electronics housing is physically separated from the probe tip and mounted at a location accessible to maintenance personnel without disturbing the machine casing. This architecture is not a convenience feature — it is an engineering decision that eliminates the need to break the machine seal for gap recalibration, reduces thermal exposure of the electronics, and allows replacement of the oscillator/demodulator without removing the probe from its drilled and tapped mounting boss. In continuous-process industries where planned outages are measured in years, this distinction has direct economic value.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330900-50-00 operates on the Colpitts oscillator topology, which is the standard architecture for eddy-current proximity sensing in industrial machinery monitoring. The oscillator drives a high-frequency carrier signal — typically in the 1.0 MHz range for 3300 Series 8 mm probes — through the coaxial cable to the probe tip coil. When a conductive target (the shaft) enters the electromagnetic field, eddy currents are induced on the shaft surface. These eddy currents extract energy from the oscillator circuit, causing a measurable change in oscillation amplitude that is directly proportional to the gap distance.

The demodulator stage within the 330900-50-00 rectifies and filters this amplitude-modulated carrier to produce the final DC output voltage. The scale factor of 7.87 V/mm (200 mV/mil) is maintained through a precision voltage reference and a temperature-compensated gain stage. This compensation is critical: without it, a 50 °C ambient temperature swing would introduce a gap measurement error of several micrometers — unacceptable in a system where alarm setpoints may be as tight as 25 µm peak-to-peak.

From an EMC standpoint, the RAM housing provides a Faraday shield around the oscillator circuitry, attenuating radiated emissions and protecting the high-impedance oscillator input from conducted interference on the power supply rail. The −24 VDC supply is filtered internally with a π-network LC filter, providing greater than 40 dB of attenuation for switching noise above 100 kHz. This is particularly relevant in variable-frequency drive (VFD) environments where the power distribution system carries significant harmonic content.

The cable between the RAM housing and the probe tip is a precision coaxial assembly with a defined characteristic impedance. The 330900-50-00 is calibrated as a system with a specific cable length — the suffix in the part number encodes this length. Substituting a cable of different length without recalibration will shift the linear range and scale factor, producing systematic measurement error. This is the most common installation mistake encountered in field replacement scenarios.

System Integration Benefits

• Direct rack compatibility: The 330900-50-00 output signal is fully compatible with Bently Nevada 3500 Series monitoring rack input cards (e.g., 3500/40M, 3500/42M, 3500/45) without any signal conditioning adapter. The −24 VDC bias and 7.87 V/mm scale factor are natively recognized by the rack firmware, eliminating configuration errors during replacement.
• Non-contact measurement eliminates wear-induced drift: Unlike contact-type displacement sensors, the eddy-current principle introduces zero mechanical load on the shaft. Measurement accuracy does not degrade over time due to probe wear, making the 330900-50-00 suitable for continuous, unattended operation across multi-year maintenance intervals.
• RAM architecture preserves machine integrity: Replacing the oscillator/demodulator module does not require removing the probe from the machine casing. This eliminates the risk of probe thread damage, oil seal breach, or misalignment during hot-swap maintenance — a significant advantage on pressurized or high-temperature casings.
• Wide frequency response supports advanced diagnostics: The DC-to-10 kHz bandwidth captures not only 1× and 2× running speed components but also sub-synchronous instability (oil whirl at 0.43–0.48×), blade-pass frequencies, and gear mesh frequencies. This makes the 330900-50-00 suitable for both protective monitoring and condition-based maintenance data acquisition within the same signal chain.
• Deterministic output latency: The analog output of the 330900-50-00 has no digital processing delay. The signal reaches the monitoring rack input within the propagation time of the cable — typically under 10 ns for standard cable lengths. This is critical for protective relay actuation where trip response time is specified in milliseconds.
• Multi-parameter measurement from a single installation: Depending on rack card configuration, the same 330900-50-00 output can simultaneously feed radial vibration (AC-coupled), shaft average centerline position (DC component), and gap voltage monitoring channels. This reduces the number of probe penetrations required per bearing journal.
• Compatibility with System 1 condition monitoring software: The analog output integrates directly with Bently Nevada System 1 via the 3500 rack’s Ethernet gateway, enabling trend logging, alarm management, and spectral analysis without additional signal conversion hardware.
• Standardized calibration traceability: The 330900-50-00 is calibrated against AISI 4140 steel targets per API 670 Annex D. Calibration certificates reference NIST-traceable standards, satisfying the documentation requirements of ISO 9001-certified maintenance programs and insurance audits.

Quality Assurance & Global Logistics

Every 330900-50-00 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification sequence. The unit is powered at −24 VDC and the output bias voltage is measured at a known reference gap using a calibrated target fixture. The measured scale factor is compared against the Bently Nevada factory specification of 7.87 V/mm ±3%. Units outside this tolerance are quarantined and returned to the supply chain — they do not ship. The serial number, firmware revision (where applicable), and test results are logged and provided with the shipment documentation package.

Packaging follows anti-static and shock-protection protocols: the module is placed in a conductive foam-lined anti-static bag, heat-sealed, and placed in a double-wall corrugated carton with minimum 50 mm foam surround on all six faces. This packaging survives the 1.2 m drop test per ISTA 1A without internal component displacement.

Logistics from Xiamen operate through DHL Express and FedEx International Priority accounts with daily pickup. Transit times to major industrial hubs are as follows: Southeast Asia 1–2 business days; Middle East and Europe 3–5 business days; North America 4–6 business days; South America and Africa 5–8 business days. For customers with established freight forwarder relationships, EXW Xiamen terms are available. All shipments include a commercial invoice, packing list, and certificate of origin. Dangerous goods declarations are not required for this product class. Export classification: EAR99.

A 12-month warranty covers manufacturing defects from the date of dispatch. Dead-on-arrival (DOA) units are replaced within 7 business days of confirmed fault report. Warranty claims require the original serial number and a brief fault description — no return merchandise authorization (RMA) bureaucracy.
