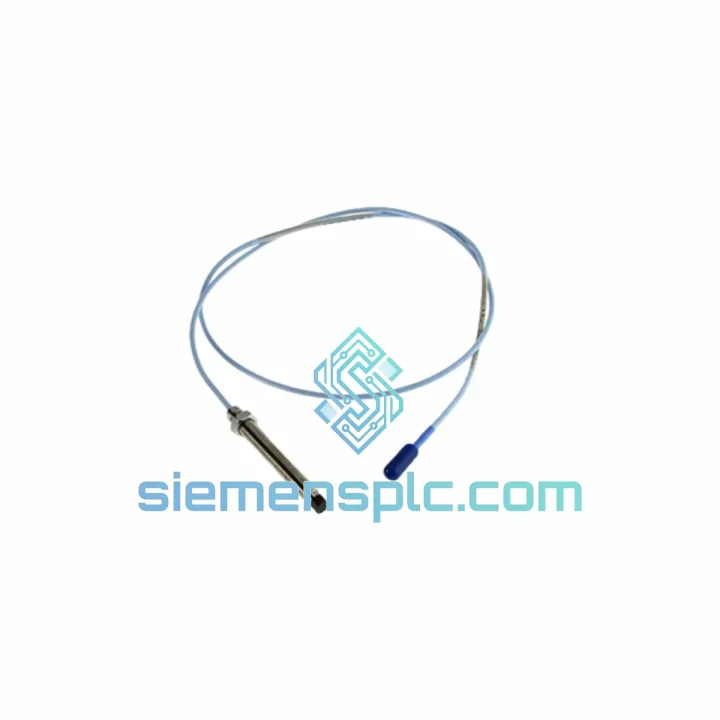

Bently Nevada 330908-21-35-10-02-00 Proximity Transducer System

330908-21-35-10-02-00 — Every Hour of Downtime Costs You. We Ship Today.

Your turbine is down. Your compressor is offline. The control room is waiting. You’ve traced the fault to the proximity transducer system — and you need a verified replacement on-site before the next shift. The Bently Nevada 330908-21-35-10-02-00 is in stock at our Xiamen warehouse right now. We’ve shipped this exact part to refineries in the Middle East, power plants in Southeast Asia, and petrochemical facilities across Europe — all on emergency timelines. This is what we do.

This is not a catalog listing. This is a field-ready unit, inspected, packaged, and staged for same-day dispatch via DHL Express or FedEx International Priority. If you’re reading this during a plant shutdown, stop scrolling and contact us now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of 3300 Series field replacements, here are the failure modes and swap pitfalls that actually matter on the job:

Common Fault Signatures Before Failure:

• Gap voltage drift — Proximitor output creeping outside the -10 VDC ±1 V nominal range at a known 1.0 mm gap. Usually indicates probe tip contamination, shaft runout change, or early Proximitor oscillator degradation. Don’t chase it with gap adjustment alone — check the Proximitor output under no-load conditions first.
• High 1X amplitude spike — Sudden increase in synchronous vibration on the 3300/3500 monitor card. Before condemning the transducer, verify the shaft target area for fretting, corrosion pitting, or keyway influence. A damaged target surface will produce false high readings even with a new probe.
• Intermittent OK/NOT OK relay chatter — Almost always a connector issue at the Proximitor junction box or a cracked extension cable armor. Flex the cable at the conduit entry point while watching the monitor output. If the signal drops, the cable is the culprit, not the probe.
• Flat-line output at -24 VDC — Probe is open-circuit. Check the integral cable at the probe body weld point — this is the highest mechanical stress location on the 330908 series.

Replacement Procedure — Critical Steps:

• Step 1 — Matched System Verification: The 330908-21-35-10-02-00 is a factory-calibrated matched set. Do not mix probe, extension cable, and Proximitor from different serial number sets. The calibration curve is specific to the matched trio. Mixing components will introduce a sensitivity error of up to ±5% — unacceptable for API 670 installations.
• Step 2 — Gap Setting: Install probe to 1.0 mm (40 mil) gap from the shaft target surface. Verify Proximitor output reads -10.0 VDC ±0.5 V at static condition. Use a calibrated gap tool, not a feeler gauge — feeler gauges introduce magnetic interference during measurement.
• Step 3 — Proximitor Mounting: The 330180 Proximitor in this system has no DIP switches or address settings — it is a passive signal conditioner. No firmware, no configuration. Plug-and-play with 3300 and 3500 monitor cards. Confirm the monitor card input channel is set for 8 mm probe sensitivity (200 mV/mil) in the rack configuration software.
• Step 4 — Cable Routing: Keep extension cable away from VFD power cables and high-current bus bars. Induced noise on the coaxial cable will appear as broadband vibration noise on the spectrum. Minimum separation: 300 mm from power cables, or use shielded conduit.
• Step 5 — Monitor Card Verification: After installation, perform a static calibration check using the 3500/42M or equivalent monitor card’s built-in calibration routine. Confirm alert and danger setpoints are re-armed before returning the machine to service.

Firmware & Configuration Note: The 330908 series Proximitor has no firmware. The 3300/3500 monitor rack handles all signal processing. If you’re replacing a unit on a System 1 Evolution network, no re-addressing is required at the transducer level — only verify the channel mapping in the System 1 database matches the physical installation.

Reliability in Harsh Conditions

The 330908-21-35-10-02-00 was not designed for a clean lab. It was designed for the environments where machines actually fail — and where replacement parts need to survive the same punishment as the original.

The probe body is machined from 316 stainless steel with a PEEK-tipped nose cone rated for continuous immersion in turbine lube oil, process gas condensate, and high-humidity bearing housings. The integral cable uses a dual-layer armor construction — inner PTFE jacket for chemical resistance, outer stainless braid for mechanical protection against vibration-induced fatigue at the probe body exit point.

The 330180 Proximitor enclosure is rated IP65 and tested to withstand 15g peak sinusoidal vibration per IEC 60068-2-6 — the same vibration environment it’s monitoring. In high-temperature installations near steam turbine casings, the Proximitor is typically mounted on a remote bracket outside the hot zone, with the 2 m extension cable bridging the thermal gradient. This system’s cable length configuration (1 m probe + 2 m extension) is specifically suited for this installation geometry.

Units sourced through siemensplc.com undergo incoming inspection that includes dimensional verification of the probe tip geometry, continuity check of the coaxial cable assembly, and static output verification of the Proximitor at -24 VDC supply. Every unit ships in anti-static foam with a humidity indicator card — if the card shows pink on arrival, contact us before installation.

Global Express Logistics

Our Xiamen warehouse operates on a same-day cut-off of 15:00 CST for DHL Express and FedEx International Priority shipments. Here’s what the timeline looks like from your purchase order to your receiving dock:

• Day 0 (Order Confirmed): Unit pulled from shelf, inspected, and packed. Commercial invoice, packing list, and HS code documentation prepared. Export declaration filed with Xiamen Customs.
• Day 1 (Departed Xiamen): DHL Express or FedEx IP airway bill generated. Tracking number sent to your email within 2 hours of pickup. Most Asia-Pacific destinations receive the shipment within 2–3 business days from this point.
• Day 2–4 (In Transit): Real-time tracking available. For urgent plant shutdowns, we can arrange DHL Express Worldwide with a 1–2 business day transit to major hubs in the EU, Middle East, and North America.
• Customs Clearance: We provide complete export documentation including HS Code 9031.80 classification, country of origin certificate (USA), and commercial invoice in the format required by your country’s customs authority. For destinations requiring an import license for industrial instrumentation, contact us in advance — we’ve handled this for customers in India, Brazil, and Saudi Arabia.
• Emergency Freight: For true plant-down situations, we can coordinate charter freight or hand-carry courier service. Contact us on WhatsApp for a real-time quote.

We’ve shipped the 330908-21-35-10-02-00 to over 30 countries. The paperwork doesn’t slow us down.
