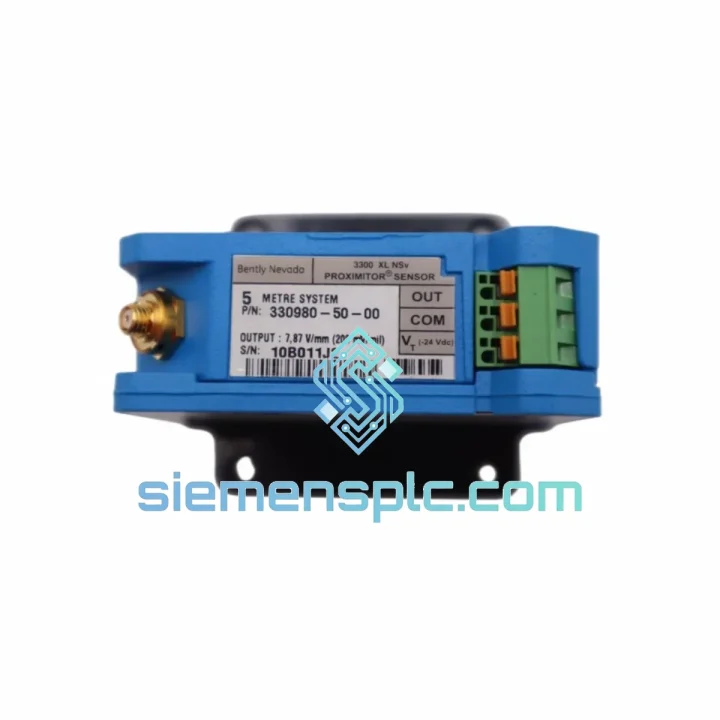

Bently Nevada 330980-50-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330980-50-00: Eddy-Current Proximity Transducer in the 3300 XL Measurement Chain

The Bently Nevada 330980-50-00 is a non-contact eddy-current proximity transducer with an integrated 5.0 m extension cable, designed as the field-sensing element within the 3300 XL Proximity Transducer System. Its primary function in a machinery protection loop is to convert the physical gap between the probe tip and a conductive rotating shaft into a calibrated DC voltage signal, which downstream monitors interpret as radial vibration displacement, axial shaft position, or differential expansion — depending on the measurement plane and monitor configuration.

Within a complete 3300 XL signal chain, the 330980-50-00 occupies the first and most mechanically exposed position: it is threaded into a bearing housing bracket, held at a precise gap from the shaft journal, and subjected to the full thermal, chemical, and vibrational environment of the machine. The accuracy of every alarm setpoint and every trip decision made by the monitor is directly dependent on the linearity and thermal stability of this probe assembly. A degraded or counterfeit probe introduces a systematic measurement error that no monitor calibration can correct.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330980-50-00 operates on the principle of electromagnetic induction loading. An oscillator circuit within the matched driver/oscillator unit (e.g., 330180-91-00) drives the probe coil at approximately 1 MHz. When the probe tip is positioned near a conductive target, the alternating magnetic field induces eddy currents in the target surface. These eddy currents create a counter-magnetic field that loads the oscillator, reducing its amplitude in proportion to the probe-to-target gap. The driver converts this amplitude modulation into a DC voltage output spanning –2 VDC (near gap) to –18 VDC (far gap), with a nominal sensitivity of 7.87 V/mm across the calibrated linear range.

EMC Design Architecture: The 5.0 m extension cable in the 330980-50-00 is a coaxial, armored assembly with controlled characteristic impedance matched to the probe coil and driver input. This impedance matching is not incidental — it is the primary mechanism by which the system rejects common-mode electromagnetic interference from variable-frequency drives, high-current bus bars, and RF sources common in turbomachinery environments. Any substitution of the extension cable with a non-OEM assembly will alter the cable capacitance and inductance, shifting the oscillator operating point and introducing a non-linear sensitivity error that varies with temperature.

Thermal Stability: The probe body is constructed from 316 stainless steel with a ceramic-filled epoxy potting compound encapsulating the coil assembly. This construction maintains coil geometry and dielectric properties across the full –35°C to +177°C probe temperature range. The temperature coefficient of sensitivity is specified at less than ±0.5% per 55°C change — a figure that is only achievable when the probe, extension cable, and driver are used as a matched, calibrated set. Mixing components from different calibration batches or manufacturers invalidates this specification.

Gap-Setting Precision: The 330980-50-00 is threaded with a standard probe body thread, allowing micrometer-controlled gap adjustment during installation. The recommended initial gap is typically set at the midpoint of the linear range (approximately 1.27 mm / 50 mil), placing the quiescent output at approximately –10 VDC. This midpoint bias maximizes the available measurement range in both the positive and negative displacement directions, which is critical for capturing both forward and reverse shaft excursions during transient events such as startup, shutdown, and load changes.

System Integration Benefits

• Direct API 670 Compliance: The 330980-50-00 meets all sensitivity, linearity, and temperature coefficient requirements defined in API Standard 670 (5th Edition) for machinery protection systems. This eliminates the need for supplementary field calibration to satisfy insurance, regulatory, or plant safety audit requirements.
• Zero-Wear Measurement: Non-contact eddy-current technology imposes no mechanical load on the shaft and has no moving parts. Mean time between maintenance (MTBM) for the probe assembly in a clean, properly installed application is measured in decades, not years, reducing planned maintenance outage frequency.
• Broadband Frequency Coverage: The DC-to-10 kHz frequency response captures the full spectrum of rotating machinery phenomena — from slow-roll runout at 1–2 Hz, through synchronous 1× and 2× vibration at operating speed, to sub-synchronous instabilities (oil whirl, oil whip) and blade-pass frequencies in the kilohertz range — within a single measurement channel.
• Deterministic Signal Latency: The analog output of the 330980-50-00 is a continuous, real-time voltage with no sampling delay, quantization error, or digital processing latency. This is essential for machinery protection applications where the monitor must detect and respond to a trip-level vibration event within the API 670-specified response time of less than 1 ms.
• Backward Compatibility with Installed 3300 XL Infrastructure: The 330980-50-00 is form-fit-function identical to earlier 3300 XL probe assemblies. Replacement requires only mechanical removal and reinstallation — no monitor reconfiguration, no re-scaling of alarm setpoints, and no re-commissioning of the signal chain.
• Diagnostic Transparency via Gap Voltage Monitoring: The –2 to –18 VDC output provides a continuous, observable diagnostic signal. A shift in the quiescent gap voltage between maintenance intervals indicates physical changes in the probe-to-shaft gap — caused by bearing wear, shaft centerline migration, or probe bracket movement — before those changes reach alarm thresholds. This enables condition-based maintenance scheduling rather than time-based replacement.
• Hazardous Area Suitability: The IP67-rated probe assembly is compatible with installation in classified hazardous areas when used with appropriate intrinsically safe barriers or Zener barriers, as specified in the Bently Nevada system documentation. This extends the application envelope to offshore platforms, refinery process areas, and chemical plant environments.
• Multi-Parameter Measurement from a Single Installation: Depending on monitor configuration, a single 330980-50-00 channel can simultaneously provide radial vibration (AC component), average shaft centerline position (DC component), and eccentricity (slow-roll filtered signal) — three independent machinery health indicators from one probe, one cable, and one monitor channel.

Quality Assurance & Global Logistics

Every 330980-50-00 unit supplied by siemensplc.com is sourced exclusively from authorized Bently Nevada distribution channels and verified OEM inventory. Each unit carries full manufacturer traceability, including lot code, date of manufacture, and calibration data traceable to Bently Nevada factory standards. Upon receipt, units undergo incoming inspection covering visual examination of probe body, connector integrity, cable armor continuity, and part marking verification against Bently Nevada authentication standards. Certificate of Conformance (CoC) and original manufacturer datasheet are available with every shipment upon request.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated sea freight services. Standard in-stock orders are dispatched within 1–2 business days of order confirmation. For critical plant shutdowns or emergency replacements, next-flight-out and same-day dispatch options are available. Export documentation, including commercial invoice, packing list, and ECCN/EAR classification records, is prepared for every international shipment. Customs clearance support is available for major destination markets including the EU, Southeast Asia, the Middle East, and the Americas.

All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and premature failure under normal operating conditions. Technical support for installation, gap-setting, and system verification is provided at no additional charge via email and WhatsApp.
