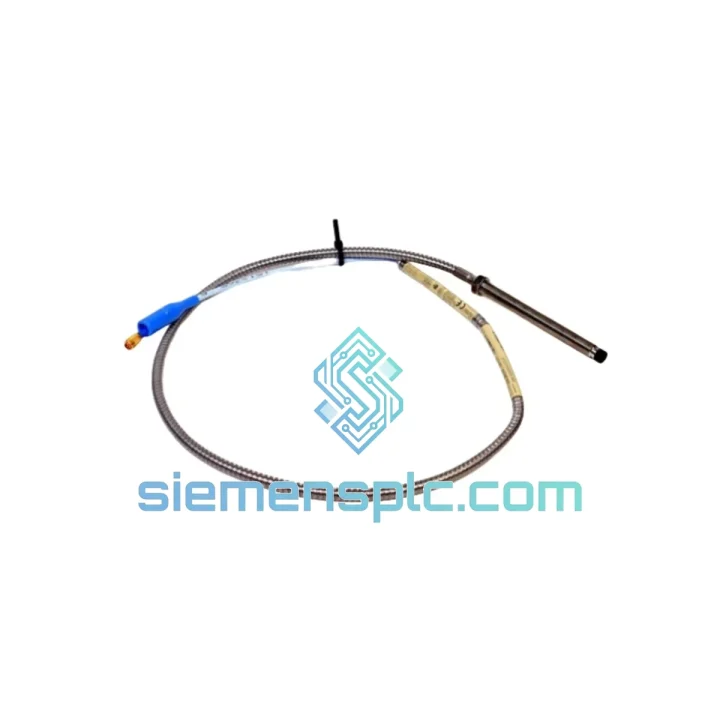

Bently Nevada 3330101-00-28-10-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 3330101-00-28-10-02-05 — 8 mm Eddy-Current Proximity Probe in the 3300 XL Transducer System

The Bently Nevada 3330101-00-28-10-02-05 is a precision 8 mm eddy-current proximity probe belonging to the 3300 XL Proximity Transducer System. It operates on the principle of electromagnetic induction: a high-frequency oscillator drives a coil wound at the probe tip, generating an alternating magnetic field. When a conductive target surface — typically a shaft journal — enters this field, eddy currents are induced, loading the oscillator circuit and producing a DC output voltage proportional to the gap distance. This non-contact measurement principle delivers sub-micron resolution with zero mechanical wear, making it the preferred technology for continuous shaft radial vibration, axial position, and eccentricity monitoring in API 670-compliant machinery protection systems.

Deployed across steam turbines, gas turbines, centrifugal compressors, boiler feed pumps, and large induction motors, the 3330101-00-28-10-02-05 forms the sensing front-end of a three-component measurement chain: probe → extension cable → Proximitor® sensor. Each element is factory-matched to maintain the system’s calibrated sensitivity of 7.87 V/mm (200 mV/mil), eliminating field calibration after installation. The probe body is machined from 316L stainless steel, providing resistance to process fluids, steam condensate, and mild chemical exposure. The integral 1.0 m coaxial cable terminates in a 5-48 UNF threaded connector, mating directly with Bently Nevada 3300 XL extension cables without adapters.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3330101-00-28-10-02-05 implements a passive LC resonant circuit at the probe tip. The coil inductance shifts as a function of target proximity, and this shift is detected by the Proximitor® sensor’s demodulation circuit, which converts the frequency deviation into a calibrated DC voltage. Several hardware design decisions distinguish this probe from generic eddy-current sensors:

EMC Shielding Architecture: The coaxial cable construction provides continuous 360° electrostatic shielding from probe tip to connector. The shield is grounded at the Proximitor® sensor end only (single-point grounding), preventing ground-loop currents that would introduce 50/60 Hz noise into the measurement signal. In high-EMI environments — such as near variable-frequency drives or large transformer banks — this topology maintains signal integrity without external filtering.

Thermal Stability of the Sensing Coil: The coil former is wound with a temperature-compensated wire alloy. Over the operating range of −35 °C to +177 °C, the inductance drift is held within the system’s calibration tolerance, ensuring that thermal transients during turbine start-up or load changes do not introduce false vibration readings. This is critical for eccentricity monitoring during cold-start sequences where shaft temperature gradients are steep.

316L SS Housing and Thread Integrity: The probe body uses 316L stainless steel rather than the more common 304 grade, providing superior resistance to chloride-induced stress corrosion cracking in steam and process environments. The 5-48 UNF thread is a fine-pitch standard that resists vibration-induced loosening without requiring thread-locking compounds that could contaminate the measurement gap.

Integral Cable Strain Relief: The junction between the probe body and the integral cable incorporates a molded strain-relief boot. This prevents flexural fatigue at the cable entry point — a common failure mode in installations where the probe is mounted on a bracket subject to structural vibration. The boot maintains a minimum bend radius that keeps the coaxial geometry intact over the service life.

Gap Voltage Linearity: The probe is characterized across its full linear range on a calibration fixture using a 4140 steel target. The resulting sensitivity curve is stored with the unit’s serial number in Bently Nevada’s traceability database. When paired with the correct Proximitor® sensor model, the combined system linearity error is typically less than ±0.5% of full scale — sufficient for API 670 alarm and trip setpoint accuracy.

System Integration Benefits

• Zero-recalibration replacement: Factory-matched sensitivity means a like-for-like probe swap does not require re-gapping or monitor reconfiguration, reducing planned maintenance downtime to under 30 minutes per measurement point.
• Deterministic signal latency: The DC-coupled output path from probe to Proximitor® introduces no phase shift below 10 kHz, preserving the time-domain waveform integrity required for orbit plot analysis and sub-synchronous instability detection.
• API 670 compliance out of the box: The probe meets the transducer performance requirements of API 670 Fifth Edition without supplementary documentation, simplifying machinery protection system audits and insurance inspections.
• Hazardous-area deployment: ATEX and IECEx certifications allow installation in Zone 1 and Zone 2 classified areas — covering the majority of hydrocarbon processing and LNG plant environments — without additional barrier hardware at the probe itself.
• Wide target material compatibility: Calibrated for 4140/4340 steel targets; correction factors for Inconel 718 and titanium alloy shafts are published in Bently Nevada application notes, enabling use on aerospace-derived turbomachinery without custom calibration.
• Diagnostic transparency via gap voltage: The −1 to −21 VDC output doubles as a continuous gap health indicator. A gap voltage outside the −10 to −18 VDC operating window at nominal installation gap signals probe damage, cable fault, or Proximitor® failure — enabling predictive maintenance before a measurement dropout occurs.
• Backward compatibility with 3500 Series monitors: The probe interfaces directly with 3500/40M, 3500/42M, and 3500/45 Proximitor® Monitor modules without signal conditioning adapters, protecting existing monitor infrastructure investments during probe replacement campaigns.
• Reduced installation error risk: The 5-48 UNF thread and defined torque specification (per Bently Nevada installation manual) provide a repeatable mechanical reference for gap setting, reducing technician-to-technician variability in gap voltage at commissioning.

Quality Assurance & Global Logistics

Every Bently Nevada 3330101-00-28-10-02-05 unit supplied through siemensplc.com is sourced from authorized distribution channels or verified surplus inventory with full traceability documentation. Prior to dispatch from our Xiamen, China facility, each probe undergoes a pre-shipment inspection protocol covering: physical housing integrity, connector thread condition, cable continuity and insulation resistance, and visual verification of the probe tip coil. Units exhibiting any anomaly are quarantined and not shipped.

Packaging follows Bently Nevada OEM standards — individual anti-static foam inserts within rigid cartons — to prevent transit damage to the coaxial cable and connector. For international shipments, we select carriers based on destination customs clearance efficiency: DHL Express for Europe and North America (typical transit 3–5 business days), SF Express or EMS for Southeast Asia and the Middle East (2–4 business days). All shipments include a commercial invoice, packing list, and certificate of conformance. For orders requiring ATEX documentation or material test reports, these are provided at no additional charge upon request.

In-stock units ship within 1–2 business days of order confirmation. For bulk procurement (>10 units) or project-specific lead-time requirements, contact our technical sales team for a dedicated sourcing timeline. A 12-month warranty covers manufacturing defects under normal operating conditions, with advance replacement available for critical plant applications to minimize production impact.
