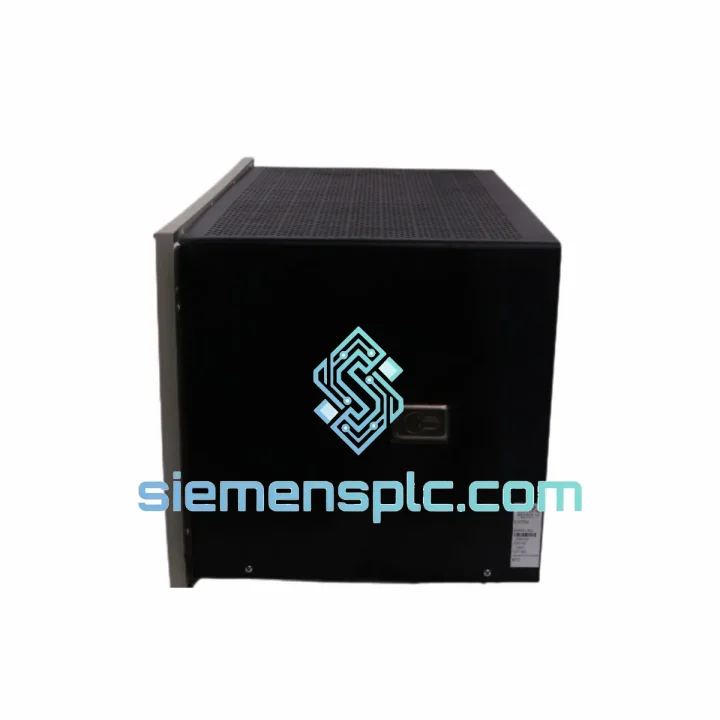

Bently Nevada 3500/05-01-01-00-00-00 System Chassis

3500/05-01-01-00-00-00 Down? Every Minute of Rack Failure Costs You — Get This Chassis Shipped Today

Your 3500 Series rack is the nervous system of your machinery protection loop. When the 3500/05 chassis fails — backplane corruption, power rail collapse, slot contact oxidation — every monitor card in that rack goes blind simultaneously. Vibration, axial position, speed: all channels drop. Your DCS sees a flood of bad-quality alarms, your SIS may trip the machine on a spurious signal, and your operations team is staring at a dark screen while a $40M compressor sits idle. We stock the Bently Nevada 3500/05-01-01-00-00-00 chassis and ship from Xiamen within 24 hours of order confirmation. That is the only number that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures that point to the 3500/05 chassis — not the monitor cards:

• All channels go to Not OK simultaneously — if every slot trips at once and individual card swap doesn’t recover the channel, the backplane is the suspect. Swap the chassis, not the cards.
• Intermittent rack resets under vibration — backplane connector fretting. Reseat all cards first; if the reset recurs within hours, the chassis backplane traces are cracked. Replace the rack.
• 3500/20 RIM loses communication to System 1 but cards appear healthy — check the RIM-to-chassis backplane interface. A degraded slot 1 connector causes exactly this symptom. Swap chassis before condemning the RIM.
• Power supply OK lamp lit but rack won’t initialize — the 3500/15 power rail feeds the backplane through chassis-internal traces. If the PSU tests good on a bench but the rack won’t boot, the chassis power distribution is open. Replace chassis.

Replacement procedure — field checklist:

1. Document slot assignments before pulling any card. Photograph the front panel, record every module part number and slot position. The 3500 system does not auto-discover slot configuration after a chassis swap.
2. Export the rack configuration from System 1 (or via the RIM RS-232 port using the 3500 Rack Configuration software) before powering down. Save the .rck file to a USB drive on-site.
3. Power down in sequence: inhibit alarms at the DCS first, then remove power from the 3500/15 PSU. Never hot-pull the PSU from a live chassis — the backplane capacitors can arc the connector pins.
4. Transfer cards slot-for-slot into the new chassis. Do not shuffle positions. The 3500/20 RIM must remain in slot 1. The 3500/25 Keyphasor module must be in its original slot for phase-referenced measurements to remain valid.
5. Check the chassis address jumpers (J1–J3 on the chassis rear panel) before powering up. The replacement chassis ships with default address 0. If your plant uses multiple racks on a single System 1 network, the rack address must match the original — otherwise System 1 will see a duplicate node and refuse to connect.
6. Restore configuration via System 1 using the saved .rck file. Verify each channel’s OK status, setpoint values, and relay assignments before releasing the machine to operations.
7. Perform a trip test on at least one channel per monitor card before signing off. A chassis swap is a full system disturbance — confirm the protection loop is live end-to-end.

Firmware note: The 3500/05 chassis itself carries no firmware. However, if your replacement RIM (3500/20) has a different firmware revision than the original, System 1 may flag a version mismatch. Verify RIM firmware compatibility with your System 1 software version before the swap window.

Reliability in Harsh Conditions

The 3500/05 chassis was engineered for continuous operation in environments that would destroy consumer-grade electronics within weeks. The 19-inch rack enclosure uses a conformal-coated backplane PCB rated for operation in atmospheres with H₂S, SO₂, and chlorine concentrations typical of refinery and offshore environments. The card-edge connectors are gold-plated to resist contact resistance creep under thermal cycling — a critical detail in installations where ambient temperature swings 40°C between day and night shifts.

Vibration tolerance is validated to IEC 60068-2-6 sinusoidal sweep profiles, covering the 5–500 Hz range that encompasses both structural resonance frequencies in steel-framed control rooms and high-frequency excitation from nearby rotating equipment. Units installed on offshore platforms — where the entire control room structure moves with wave action — have accumulated multi-year service records without backplane connector failure when properly torqued and secured.

Humidity performance is rated to 95% RH non-condensing. In tropical installations where control room HVAC fails seasonally, the conformal coating on the backplane prevents dendritic growth across signal traces — the failure mode that causes phantom OK/Not OK toggling that is frequently misdiagnosed as a transducer fault. Every unit we ship has been stored in a climate-controlled warehouse and inspected for coating integrity before dispatch.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL Express and FedEx International Priority departures. From the moment your purchase order is confirmed, our logistics team initiates parallel workflows: export documentation preparation, customs classification under HS code 8537.10 (boards, panels, consoles for electric control), and carrier booking. We do not batch shipments — your order moves on the next available flight.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile): 5–7 business days depending on customs clearance

All shipments include a commercial invoice with accurate declared value, packing list, and certificate of origin. For destinations requiring an end-user certificate or import license for industrial control equipment, contact us before ordering — we have handled controlled-goods documentation for customers in over 40 countries and will not let paperwork be the reason your machine stays down.

Packaging: the chassis is wrapped in anti-static poly, cushioned with 50mm closed-cell foam on all six faces, and double-boxed in a corrugated outer carton rated for 200 kg/m² stacking load. Drop-test certified to ISTA 2A. Your chassis arrives ready to install, not ready to be inspected for shipping damage.
