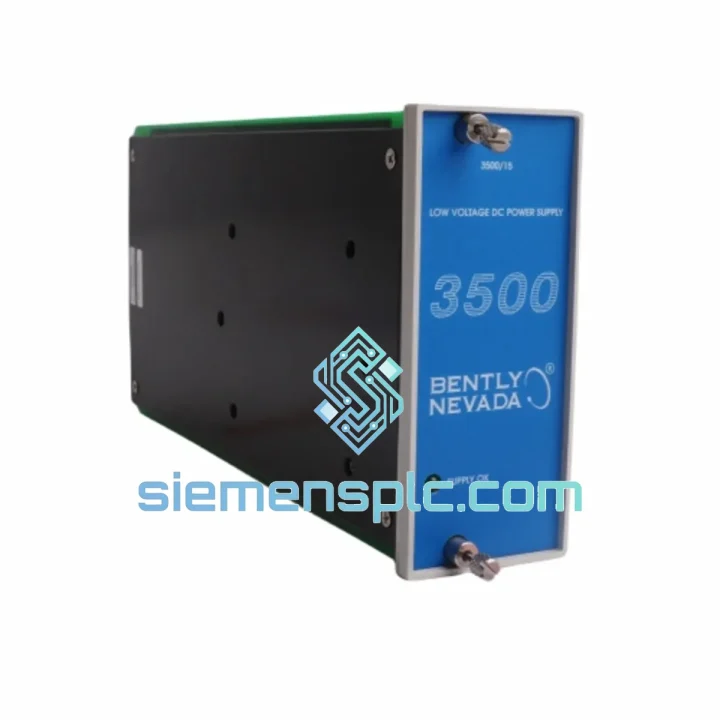

Bently Nevada 3500/15 133292-01 Power Supply Module

3500/15 133292-01 Power Supply Down? Every Minute of Downtime Costs You — We Ship the Same Day

Your 3500 rack just lost power. The turbine is tripped. The control room is on the phone. You’ve got maybe four hours before the plant manager starts asking questions you don’t want to answer. This is exactly the scenario the Bently Nevada 3500/15 (P/N 133292-01) replacement stock at siemensplc.com was built for. We keep verified units on the shelf in Xiamen, export-ready, so your downtime is measured in hours — not weeks.

The 3500/15 is the AC power supply backbone of the entire Bently Nevada 3500 Machinery Protection System. When it fails, every monitor card in that rack goes dark. There is no workaround, no bypass, no temporary fix. You need the module. We have it.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of 3500/15 failures across oil & gas and power generation sites, here are the failure patterns and swap pitfalls that actually matter on the floor:

Most Common Failure Modes:

• No DC output, rack fully dark: The most obvious symptom. Before condemning the 3500/15, verify your AC feed at the terminal block — a blown upstream fuse or tripped breaker is responsible for roughly 30% of these calls. Measure AC input at the module terminals first.
• Intermittent rack resets / monitor card dropouts: Often caused by a degraded bulk capacitor inside the PSU. The rack may appear to power up normally but trips under load. If you see this pattern, the 3500/15 is the prime suspect — don’t waste time chasing individual monitor cards.
• OK LED off, FAULT LED solid: The module’s internal protection has tripped. This can be caused by a shorted backplane connector or a failed monitor card drawing excessive current. Isolate by removing monitor cards one at a time while watching the PSU LEDs. If the FAULT clears with a card removed, that card is the root cause — but the PSU may still need replacement if it has been stressed.
• OK LED flickering at startup: Indicates marginal output voltage during inrush. Common in aging units. Replace the PSU before the next planned shutdown — don’t wait for a hard failure.

Replacement Procedure — Key Steps:

• If running in redundant dual-PSU mode, confirm the standby unit is healthy before pulling the failed module. The rack should transfer load automatically, but verify the OK LED on the standby PSU is solid before proceeding.
• The 3500/15 is a direct plug-in replacement — no address switches, no DIP settings, no firmware to load. Seat the module, secure the front panel screws, and reconnect the AC terminal block. The rack will power up automatically.
• After insertion, allow 10–15 seconds for the PSU to stabilize before checking monitor card status. Some cards will self-reset; others may require a rack power cycle if they latched a fault during the outage.
• Verify the System OK relay output at the rack’s rear terminal block after replacement — this is the signal your DCS or safety system uses to confirm rack health. A healthy 3500/15 will close this relay within 30 seconds of power-up.
• Log the replacement in your CMMS with the old unit’s serial number. Bently Nevada serial numbers are on the module label — photograph it before disposal for traceability.

Configuration Notes:

• No rack reconfiguration is required after a like-for-like 3500/15 swap. All configuration data is stored in the individual monitor cards, not the PSU.
• If upgrading from an older revision of the 133292-01, check the Bently Nevada 3500 System Manual (GEK-91485) for any revision-specific notes. In most cases, revisions are backward-compatible.
• For sites running the 3500 rack on an uninterruptible power supply (UPS), verify the UPS output is within the 85–264 VAC range under load — some older UPS units produce a modified sine wave that can cause nuisance trips on the 3500/15.

Reliability in Harsh Conditions

The 3500/15 was engineered for continuous, unattended operation in environments that would kill consumer-grade electronics inside a week. The universal AC input range — 85 to 264 VAC, 47 to 63 Hz — means it handles the voltage sags and frequency deviations common on offshore platforms and remote generation sites without complaint. The internal design uses industrial-grade components rated for extended temperature ranges, and the module is built to operate continuously in ambient temperatures up to 65°C without derating.

Vibration tolerance is not an afterthought. The 3500 series was designed for installation directly adjacent to rotating machinery — compressors, turbines, pumps — where structural vibration is a constant. The module’s PCB assembly uses conformal coating and mechanically secured connectors to prevent the micro-fractures and intermittent contacts that plague standard industrial hardware in high-vibration environments.

Humidity and condensation are handled through the same conformal coating process, making the 3500/15 suitable for coastal, offshore, and tropical installations where relative humidity regularly exceeds 90%. Units stored in our Xiamen warehouse are kept in climate-controlled conditions and individually bagged in anti-static ESD packaging to preserve this protection until the moment of installation.

The bottom line: this module was built to run for years without intervention. When it does fail, it’s usually age or an upstream electrical event — not a design weakness. A verified replacement unit from our stock will give you the same service life as the original.

Global Express Logistics

Our dispatch operation runs out of Xiamen, one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Unit is picked, inspected, packed in ESD-safe foam-lined carton, and handed to the carrier the same business day.
• DHL Express / FedEx International Priority: Transit times of 2–4 business days to most of Europe, the Middle East, and Southeast Asia. 3–5 days to the Americas and Australia.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared as standard. HS code and customs value documentation available on request to support import pre-clearance at your end.
• Tracking: AWB number provided within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds immediately.
• Bulk orders: For quantities of 3 or more units, we can consolidate into a single shipment with a combined packing list, reducing your per-unit freight cost and simplifying customs clearance.

We have shipped 3500 series components to refineries in the Middle East, LNG terminals in Southeast Asia, power plants in Eastern Europe, and offshore platforms in West Africa. The logistics process is documented and repeatable. When you need the part, we get it there.
