Bently Nevada 3500/15 AC 127610-01 Power Supply Module – 3500 Series

Bently Nevada 3500/15 AC 127610-01 — Rack Power Conditioning Module for Continuous Machinery Protection Systems

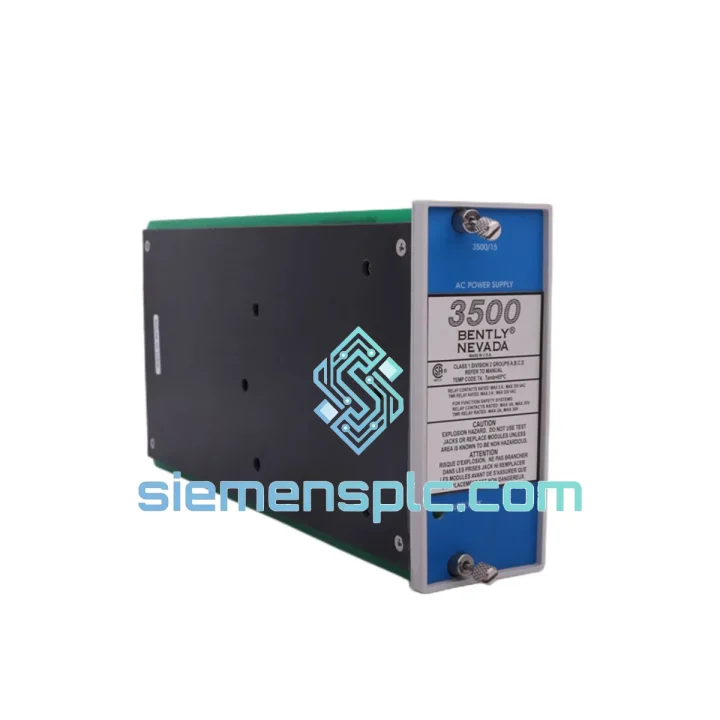

The 3500/15 AC (P/N 127610-01) is the primary power distribution module within the Bently Nevada 3500 Series Machinery Protection Platform. Its function is not peripheral — it is the electrical foundation upon which every monitoring card, I/O module, and trip relay in the rack depends. Without a stable, regulated DC bus, the deterministic response times that define SIL-rated machinery protection become unachievable. This module converts wide-range plant AC mains into the multiple isolated DC rails distributed across the 3500 rack backplane, maintaining output regulation within ±1% under full rack load conditions.

The 3500 platform is deployed in power generation, oil & gas, petrochemical refining, and heavy rotating equipment facilities where unplanned downtime carries costs measured in tens of thousands of dollars per hour. In these environments, the power supply is not a commodity component — it is a precision instrument whose failure mode behavior, transfer time, and diagnostic transparency are as critical as any signal-conditioning card in the chassis.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500/15 AC 127610-01 employs a high-frequency PWM switching topology operating above 100 kHz, which allows the use of compact, low-ESR filter capacitors while maintaining tight output regulation across the full 85–264 V AC input window. This topology eliminates the need for a bulky 50/60 Hz mains transformer, reducing both module weight and thermal dissipation inside the rack enclosure.

EMC and Isolation Architecture: The AC input stage incorporates a multi-stage common-mode and differential-mode EMI filter conforming to IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity requirements. An inrush current limiter — implemented via a negative-temperature-coefficient (NTC) thermistor network — suppresses the capacitive charging surge at power-on, protecting both the module and upstream plant circuit breakers from nuisance tripping. The DC output rails are galvanically isolated from the AC input by a high-frequency transformer with a creepage distance exceeding 8 mm, preventing ground-loop currents from coupling into the sensitive ±15 V analog signal rails used by proximity probe and velocity transducer conditioning circuits.

Redundancy Arbitration Logic: When two 3500/15 modules occupy Slots 1 and 2, an internal OR-diode arbitration circuit on the backplane ensures that the higher-voltage rail (primary) supplies the load while the standby module remains at near-zero output current. On detection of a primary rail collapse — sensed by a dedicated voltage comparator with a 50 ms debounce filter — the standby module ramps to full output within <20 ms. This transfer time is below the hold-up time of the downstream DC-DC converters on each monitoring card, ensuring zero data loss or false trip events during a power supply changeover.

Thermal Management: The module uses a forced-convection design with an internal fan drawing air from the rack’s front-to-rear airflow path. A thermistor embedded in the hottest zone of the switching stage feeds a thermal protection comparator; if junction temperature exceeds the design threshold, the module initiates a controlled shutdown and asserts the FAULT relay before any component damage occurs. This fail-safe behavior is preferable to an uncontrolled failure, as it allows the redundant supply to assume load in an orderly manner.

System Integration Benefits

• Deterministic DC Bus Stability: ±1% output regulation under dynamic load transients ensures that A/D converters on monitoring cards maintain their specified accuracy, preventing false alarm conditions caused by supply-induced measurement drift.
• Bumpless Redundancy Transfer: Sub-20 ms switchover time is transparent to all rack modules; no monitoring gap, no false trip, no data discontinuity in System 1 trend buffers.
• DCS/SCADA Alarm Integration: The Form C PWR OK relay contact provides a hardwired healthy signal directly to the plant DCS or safety PLC, enabling alarm annunciation without relying on software polling — critical for SIL-2 architectures.
• Universal Input Eliminates Infrastructure Cost: The 85–264 V AC range accepts both 110 V and 220 V plant distribution without rewiring or external autotransformers, simplifying installation in multi-voltage facilities and reducing commissioning time.
• Hot-Swap Maintenance: With a redundant pair installed, a faulted 3500/15 can be extracted and replaced while the rack remains energized and machinery protection remains active — eliminating the need for a planned shutdown to perform a power supply replacement.
• Galvanic Isolation Preserves Signal Integrity: Isolated DC rails prevent ground-loop currents from corrupting proximity probe gap voltages and velocity transducer outputs, maintaining measurement accuracy at the microvolt level required for sub-mil vibration resolution.
• Integrated Diagnostic Transparency: FAULT status is simultaneously visible on the front-panel LED, reported via the PWR OK relay, and accessible through the 3500/01 Rack Interface Module to System 1 software — three independent diagnostic paths for maximum maintenance visibility.
• Thermal Shutdown with Graceful Handoff: Controlled thermal protection asserts the FAULT relay before shutdown, giving the redundant supply time to assume load without a voltage dip — preserving trip logic integrity during extreme ambient temperature events.
• Reduced Rack Thermal Load: High-frequency switching topology achieves conversion efficiency above 85%, reducing heat dissipation inside the rack enclosure and extending the service life of adjacent monitoring modules.
• Full Platform Compatibility: Electrically and mechanically compatible with all 3500 rack frame sizes and all generations of 3500 Series monitoring, I/O, and communication modules without firmware or configuration changes.

Quality Assurance & Global Logistics

Every 3500/15 AC 127610-01 unit supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) OEM hardware — not rebranded, not refurbished without disclosure, and not counterfeit. Units are procured from decommissioned plant upgrades, OEM overstock channels, and authorized distributor surplus inventories, each with traceable provenance documentation.

Incoming Inspection Protocol: Each unit undergoes a structured incoming inspection sequence: visual examination for physical damage and label authenticity verification; dimensional check of backplane connector pins; powered functional test on a live 3500 rack verifying all DC output rails, PWR OK relay operation, FAULT LED behavior, and redundancy transfer timing. Units that do not pass all test criteria are quarantined and not offered for sale.

Packaging and Handling: Passed units are packed in anti-static foam-lined enclosures with a humidity indicator card. The primary pack is double-boxed in corrugated export cartons rated for international air freight handling. Each shipment includes a serialized test record (manufacturer serial number, test date, technician ID) and, on request, a Certificate of Conformance or customs HS code declaration.

Logistics from Xiamen, China: Our warehouse is located in Xiamen, Fujian Province — a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Standard dispatch lead time is 1–3 business days from confirmed order. Incoterms available: EXW Xiamen, DAP, and DDP (duties and taxes prepaid to destination). Typical transit times: 2–4 business days to Europe, 3–5 business days to North America, 1–3 business days to Southeast Asia. Air freight tracking numbers are provided at dispatch; our team monitors shipments proactively and intervenes on customs holds without waiting for customer escalation.

Warranty: 12 months from shipment date. DOA claims are processed within 24 hours of receipt of photographic evidence. Warranty replacement units are dispatched from stock; no waiting for repair-and-return cycles.
