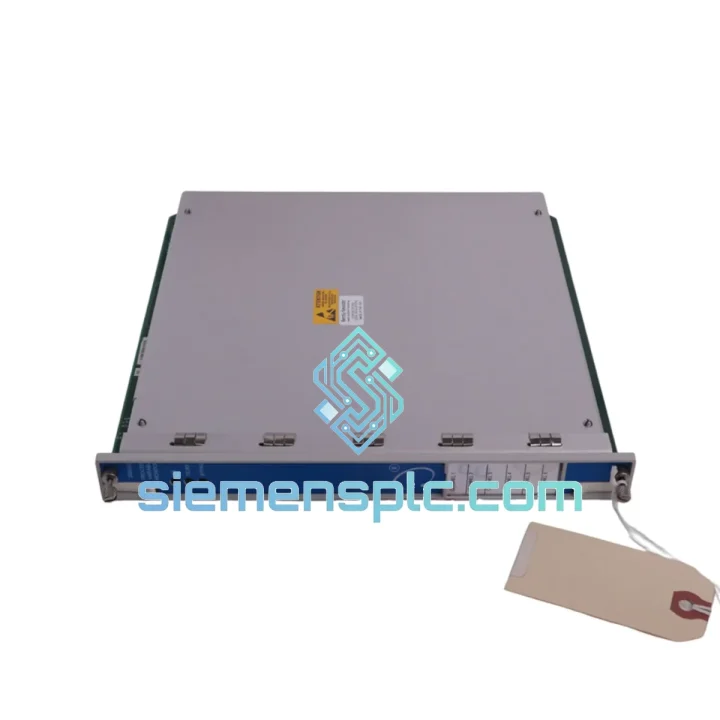

Bently Nevada 3500/62 163179-03 Process Variable Monitor – 3500 Series

Bently Nevada 3500/62 163179-03 – Dual-Channel Process Variable Monitor in the 3500 Machinery Protection Architecture

The Bently Nevada 3500/62 (part number 163179-03) is a rack-mounted Process Variable Monitor (PVM) designed to operate as a dedicated measurement and alarm node within the 3500 Machinery Protection System (MPS). Unlike vibration or position monitors that rely on proximity probes or accelerometers, the 3500/62 accepts standard process-level analog signals — 4–20 mA current loops and ±10 V DC voltage inputs — and subjects them to the same deterministic alarm arbitration logic that governs the rest of the 3500 platform. This makes it the correct module when a plant engineer needs to bring temperature, pressure, flow, or any continuous process variable under the same protection envelope as shaft vibration data, without deploying a separate PLC or DCS loop.

The module occupies a single slot in any 3500 series rack and draws power exclusively from the rack backplane, eliminating the need for field-side power wiring to the module itself. Two independent input channels are processed in parallel, each with its own signal conditioning chain, so a single 3500/62 can simultaneously monitor, for example, lube oil supply pressure and bearing metal temperature on the same rotating machine. Each channel maintains its own Alert and Danger setpoint registers, and the module drives the rack’s relay outputs through the standard 3500 backplane relay bus — meaning alarm escalation, latching behavior, and time-delay logic are all configurable through System 1 or the rack’s front-panel keypad without any field wiring changes.

The 163179-03 revision designation identifies a specific firmware and hardware build level within the 3500/62 product line. Revision-level traceability is critical in SIL-rated installations where the safety integrity level assessment is tied to a specific hardware configuration. Substituting a different revision without re-validation can invalidate the SIL certificate for the entire protection loop. Buyers should confirm that the revision on hand matches the revision documented in their functional safety assessment before installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500/62 signal conditioning path begins at the front-panel terminal block, where the field analog signal enters a galvanically isolated input stage. Optical isolation between the field side and the backplane logic side provides a minimum of 500 V DC working isolation, which prevents ground loops from corrupting measurement accuracy and protects the rack’s shared backplane from field-side transients — a common failure mode in plants where instrumentation cabling runs parallel to motor drive power cables.

Each channel’s analog signal passes through a 16-bit successive-approximation ADC operating at a sample rate sufficient to resolve process variable changes at rates consistent with thermal and pressure dynamics (typically <10 Hz bandwidth for process variables, which is well within the module’s acquisition capability). The digitized value is then compared against the Alert and Danger setpoint registers in firmware on every scan cycle. The scan cycle is synchronized to the rack’s master timing bus, which means all monitors in the rack — vibration, position, and process variable — evaluate their alarm conditions at the same deterministic interval. This synchronization is architecturally significant: it eliminates the race conditions that can occur when independent PLC scan cycles and protection relay timers operate asynchronously.

The module’s EMC design follows IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/burst), and IEC 61000-4-6 (conducted RF immunity) test criteria. The PCB layout uses a split ground plane with a single star-point connection between the analog measurement ground and the digital logic ground, minimizing high-frequency noise coupling from the backplane’s digital communication lines into the ADC reference voltage. Ferrite beads on the power supply rails suppress common-mode noise from the backplane’s switched-mode power supply. These design choices are not incidental — they are necessary for the module to maintain ±0.1% full-scale measurement accuracy in the electrically noisy environment of a turbine control cabinet.

The 163179-03 revision also incorporates a watchdog timer circuit that monitors firmware execution. If the main processor fails to reset the watchdog within the defined interval, the module drives its channel outputs to a defined fail-safe state and asserts a fault flag on the backplane, which the rack’s System Monitor module (3500/05) can then report to System 1 and trigger a rack-level alarm. This self-diagnostic behavior is a prerequisite for SIL-rated operation, where the module must be able to detect its own internal failures and respond in a predictable manner.

System Integration Benefits

• Unified alarm management: Process variable alarms from the 3500/62 are managed through the same System 1 interface as vibration and position alarms, eliminating the need for operators to monitor separate HMI screens for different measurement types on the same machine.
• Deterministic scan synchronization: All channels across all modules in a 3500 rack evaluate alarm conditions on the same master clock cycle, ensuring that a simultaneous Alert condition on a vibration channel and a process variable channel is time-stamped with sub-millisecond resolution — critical for root-cause analysis after a trip event.
• No additional field wiring for alarm escalation: The module drives the rack’s relay bus through the backplane, so adding a process variable protection loop to an existing 3500 rack requires only a module insertion and software configuration — no new relay wiring to the trip system.
• Hot-insertion capability: The 3500/62 supports insertion and removal from a powered rack (subject to site safety procedures), reducing the maintenance window required to replace a suspect module during a planned outage.
• Configurable time delays prevent nuisance trips: Per-channel alarm time delays (0–60 s) allow engineers to tune the protection response to the dynamic characteristics of the monitored process variable, preventing transient process upsets from triggering unnecessary machine trips.
• Latching alarm logic for post-trip forensics: Alarm latching can be enabled per channel so that a transient condition that clears before an operator responds is still captured in the alarm log, preserving the evidence needed for incident investigation.
• Seamless expansion of existing 3500 racks: Plants with installed 3500 racks for vibration monitoring can add process variable protection to the same rack without replacing any existing hardware, protecting the capital investment in the existing MPS infrastructure.
• System 1 trending and historical data: Measured process variable values are transmitted to System 1 via the rack’s data acquisition path, enabling long-term trend analysis, alarm setpoint optimization, and integration with plant historian systems through OPC-DA or OPC-UA interfaces.

Quality Assurance & Global Logistics

Every 3500/62 163179-03 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and subjected to a documented inspection protocol before dispatch. Physical inspection covers label integrity, part number and revision marking, connector pin condition, and housing for evidence of rework or counterfeit indicators. Serial numbers are recorded and cross-referenced against available manufacturer records. Where bench testing is feasible, modules are powered and checked for basic communication response on the backplane interface.

All units are shipped with a 12-month warranty covering defects in materials and workmanship. Units that fail to perform to specification upon receipt are eligible for replacement or refund under our DOA policy, with no requirement to return the unit to the original manufacturer for assessment.

Logistics operations are based in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide services for time-critical shipments. Standard export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. HS code classification assistance and export licensing guidance are available on request for destinations with import control requirements. In-stock units typically ship within 1–3 business days of order confirmation. Bulk and project orders are handled with consolidated shipping options and formal quotation support.
