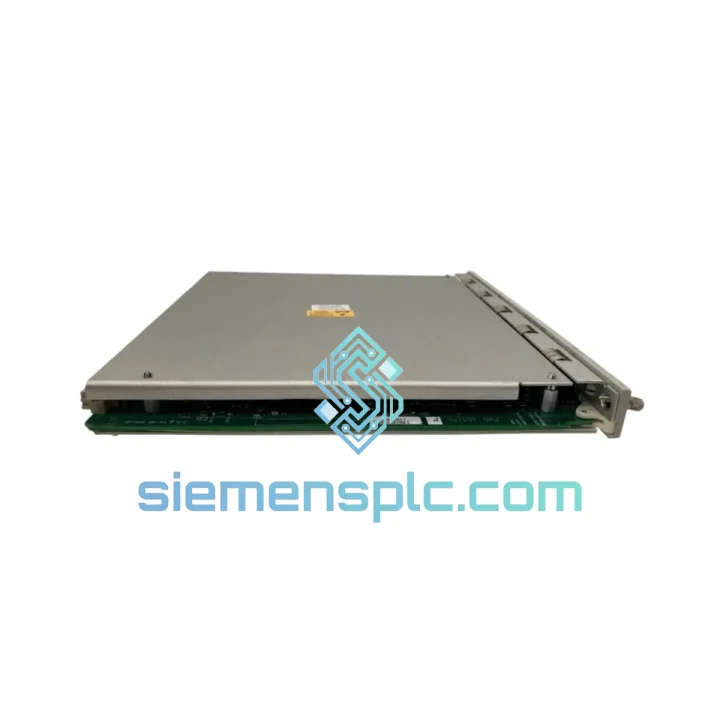

Bently Nevada 3500/63 Gas Detection Monitor – 3500 Series

Bently Nevada 3500/63 Gas Detection Monitor — Rack-Integrated Hazardous Gas Supervision for Machinery Protection Systems

The Bently Nevada 3500/63 is a single-slot gas detection monitor module engineered for continuous, real-time supervision of combustible and toxic gas concentrations within the 3500 Series Machinery Protection System rack architecture. Unlike standalone gas controllers that operate as isolated field instruments, the 3500/63 is embedded directly into the 3500 backplane, enabling synchronized alarm arbitration alongside vibration, temperature, and process variable monitors within a single unified protection framework. This architectural integration eliminates the latency and signal conditioning overhead associated with external gas detection gateways, delivering deterministic alarm response times that are critical in compressor enclosures, turbine halls, and LNG process areas where gas accumulation events demand sub-second protective action.

The module accepts 4–20 mA analog signals from catalytic bead (pellistor) sensors for lower explosive limit (LEL) detection and from electrochemical cell transmitters for toxic gas species including hydrogen sulfide (H₂S), carbon monoxide (CO), and oxygen depletion (O₂). Signal conditioning is performed on-board, with configurable span and zero calibration parameters stored in non-volatile memory to maintain calibration integrity across power cycles. Alert and Danger relay thresholds are independently configurable per channel, and the module supports both latching and non-latching relay behavior to match site-specific safety logic requirements.

Within the 3500 rack, the 3500/63 communicates over the proprietary backplane bus to the System Communication Gateway (3500/92 Ethernet or 3500/93 Modbus), making gas concentration data and alarm states available to distributed control systems including Emerson DeltaV, Honeywell Experion PKS, ABB 800xA, and Yokogawa CENTUM VP without requiring additional field wiring or protocol converters. Configuration and calibration are performed through the Rack Configuration Software (RCS), the same tool used for all 3500 series modules, reducing the engineering and commissioning burden for multi-discipline protection systems.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500/63 implements a dedicated analog front-end per channel, with galvanic isolation between the field 4–20 mA loop and the backplane logic domain. This isolation barrier — typically realized through transformer-coupled or optocoupler-based circuitry — prevents ground loop currents from corrupting measurement accuracy and protects the rack electronics from transient overvoltages originating at field sensor locations, which in offshore and petrochemical environments can carry significant common-mode noise from cathodic protection systems and high-power motor drives.

The analog-to-digital conversion stage samples the 4–20 mA input at a rate sufficient to detect rapid gas concentration changes while applying a configurable digital filter to suppress high-frequency noise without introducing excessive measurement lag. The filter time constant is user-adjustable through RCS, allowing engineers to balance response speed against noise immunity based on the specific sensor technology and installation environment.

Alarm arbitration logic within the module compares the filtered engineering-unit value against independently configurable Alert and Danger setpoints stored in non-volatile EEPROM. The relay drive circuitry is designed for fail-safe operation: relay coils are energized in the healthy (non-alarm) state, so a loss of module power or backplane communication drives the relay to the de-energized (alarm) state, consistent with IEC 61511 fail-safe design principles. This de-energize-to-trip architecture ensures that wiring faults and power failures do not mask a genuine gas hazard.

EMC performance is addressed through board-level filtering on all I/O lines, with ferrite bead arrays on the 4–20 mA input traces and shielded routing of analog signal paths away from digital clock lines. The module housing and backplane connector are designed to maintain electrical continuity with the 3500 rack chassis ground, providing a low-impedance path for shield currents and reducing susceptibility to radiated electromagnetic interference in environments with variable-frequency drives and high-voltage switchgear.

System Integration Benefits

• Unified rack architecture: Gas detection data shares the same backplane bus as vibration, temperature, and process variable monitors, enabling cross-channel trip logic (e.g., gas + high vibration = compressor ESD) without external relay wiring.
• Single configuration environment: All 3500 modules — including the 3500/63 — are configured, calibrated, and documented within RCS, eliminating the need for separate gas controller configuration software and reducing version control complexity.
• Deterministic alarm response: Backplane-based alarm arbitration operates independently of DCS scan cycles, ensuring that gas alarm relay outputs respond within the module’s internal processing cycle rather than waiting for a DCS poll.
• Diagnostic transparency: The module reports channel health status (sensor fault, 4–20 mA under-range, over-range) to the 3500 gateway, making field sensor failures visible in the DCS historian and alarm management system without additional field devices.
• Scalable multi-channel protection: Multiple 3500/63 modules can be installed in a single rack to cover multiple gas detection zones, with all channels accessible through a single gateway connection to the DCS.
• TMR rack compatibility: In triple modular redundant (TMR) rack configurations (3500/05-01), the 3500/63 participates in the rack’s voting architecture, supporting 2-out-of-3 alarm logic for high-availability safety applications.
• Reduced field wiring: Backplane power distribution eliminates the need for individual 24 VDC field power supplies for the monitor module, reducing panel space and wiring termination count.
• Lifecycle alignment: As part of the 3500 platform, the 3500/63 benefits from Baker Hughes firmware update cycles and long-term spare parts availability, reducing the risk of stranded assets in long-lifecycle plant environments.

Quality Assurance & Global Logistics

Every Bently Nevada 3500/63 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Power-on functional testing confirms that the module initializes correctly on a 3500 rack, that the 4–20 mA input channel reads accurately across the configured span, and that Alert and Danger relay outputs actuate at the programmed setpoints. Channel configuration is verified against the customer’s specified part suffix to confirm I/O variant compliance before packaging.

Units are packed in ESD-safe anti-static bags, placed in foam-lined cartons with humidity indicator cards, and sealed for international transit. Export documentation is prepared in compliance with applicable trade regulations, including HS Code classification and dual-use screening. Shipment is via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with tracking provided at time of dispatch. Transit time from Xiamen to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas is typically 3–7 business days depending on destination and customs clearance.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed through our technical team, who provide remote diagnostic support to determine whether a fault is module-related or installation-related before initiating a return. Replacement units are dispatched within 2 business days of confirmed warranty claim approval.
