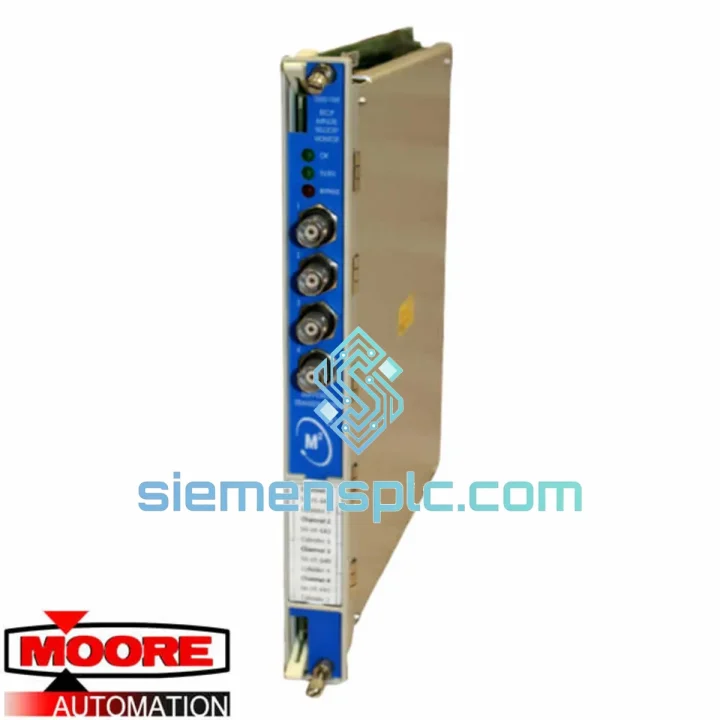

Bently Nevada 3500/70M 140734-09 Tachometer Module

Bently Nevada 3500/70M 140734-09 — Stop the Clock on Your Unplanned Shutdown

Every hour a critical rotating machine sits idle costs real money. Whether it’s a gas turbine tripping on a lost keyphasor signal, a compressor train halted by a tachometer fault, or an overspeed protection system that won’t reset — the Bently Nevada 3500/70M 140734-09 is the module at the center of the problem, and getting a verified replacement on-site fast is the only path back to production.

At siemensplc.com, we maintain ready stock of the 3500/70M 140734-09 specifically for emergency MRO and unplanned outage scenarios. Our logistics team in Xiamen processes export documentation same-day. DHL and FedEx International Priority get your module moving within hours of order confirmation — not days. If your plant is down, this is the page you need.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 3500/70M 140734-09 fails in predictable ways. Here is what field experience tells you to check before you pull the module — and what to watch when you install the replacement.

Common Fault Signatures:

• OK LED off / Not OK relay de-energized at power-up: Most often a backplane seating issue or a corrupted configuration in the rack’s non-volatile memory. Before condemning the module, reseat it firmly and cycle rack power. If the fault persists across two slots, the module is the culprit.
• Speed reading frozen or reading zero with sensor confirmed good: Internal signal conditioning failure. The -09 revision added improved input filtering; if you are running an earlier revision in the same rack, a cross-revision swap can introduce this symptom. Confirm the replacement is also -09.
• Keyphasor pulse missing on System 1 / historian: Check the terminal board (typically 140471-01 or equivalent) for broken solder joints on the BNC connector. The module itself rarely loses keyphasor output without also losing speed — if keyphasor is gone but speed reads correctly, the terminal board is the first suspect.
• Intermittent overspeed trips with no process change: Noise coupling from adjacent I/O modules. Verify shield grounding on the tachometer cable at the terminal board. A failing module can also produce spurious pulses — swap the module if grounding checks out clean.
• System 1 shows Transducer Not OK with sensor resistance in spec: The -09 revision has tighter input impedance thresholds than earlier revisions. If you substituted a -01 or -03 and are now installing a -09, re-verify your sensor’s source impedance against the -09 datasheet before assuming the module is faulty.

Replacement Procedure — Key Steps:

• Step 1 — Export configuration first: Use Bently Nevada Rack Configuration Software (RCS) to export the full rack configuration to file before removing the old module. This is non-negotiable. A replacement module ships with factory defaults; without the exported config, you are rebuilding setpoints from scratch during a shutdown.
• Step 2 — Note the DIP switch positions: The 3500/70M uses onboard DIP switches to set input signal type (magnetic pickup vs. active) and termination. Photograph the switch bank on the failed module before removal. The -09 revision switch map is documented in Bently Nevada manual 141228-01.
• Step 3 — Verify slot addressing: The 3500 rack uses slot-based addressing. The replacement module inherits the slot address automatically — no manual addressing required. However, confirm the rack firmware version supports the -09 revision (firmware 3.xx and above is required).
• Step 4 — Match terminal board: The 140734-09 pairs with specific terminal boards. Do not assume the existing terminal board is correct if the previous module was a different revision. Verify the terminal board part number against the -09 compatibility matrix.
• Step 5 — Download configuration and verify: After seating the new module, download the saved RCS configuration. Confirm speed reading matches a known reference (use a strobe or independent tachometer). Verify keyphasor pulse is visible in System 1 before returning the machine to service.

Reliability in Harsh Conditions

The 3500/70M 140734-09 was not designed for a climate-controlled server room. It was built for the platform deck of an offshore compressor module, the turbine hall of a combined-cycle power plant, and the ground floor of a petrochemical cracker — environments where ambient temperature swings 40 degrees between day and night, where vibration from adjacent machinery is constant, and where humidity condenses on every cold surface at shift change.

The module’s conformal-coated PCB resists moisture ingress that would corrode unprotected boards within months in coastal or tropical installations. The backplane connector is rated for thousands of insertion cycles — relevant when a module gets pulled and reseated repeatedly during troubleshooting campaigns. Internal signal conditioning circuitry is shielded against the high-frequency electrical noise generated by variable-frequency drives and large motor starters that share the same MCC room as the protection rack.

Bently Nevada’s qualification testing for the 3500 Series covers sinusoidal vibration per IEC 60068-2-6, random vibration per IEC 60068-2-64, and thermal cycling across the full operating range. The -09 revision specifically addressed field reports of early capacitor aging in high-ambient-temperature installations — the updated component selection extends mean time between failures in environments where rack ambient regularly exceeds 50 °C.

Units supplied by siemensplc.com are inspected for physical integrity, connector pin condition, and label authenticity. Any unit showing evidence of prior repair, re-marking, or counterfeit labeling is rejected before it reaches our inventory. What ships to your site is what Bently Nevada built.

Global Express Logistics

Xiamen is not an accident. As one of China’s designated free-trade port cities with a dedicated international cargo terminal at Xiamen Gaoqi International Airport, it offers direct freight connections to major industrial hubs across Southeast Asia, the Middle East, Europe, and the Americas — with fewer transshipment stops than inland Chinese cities, which translates directly into faster door-to-door transit times for your emergency order.

How your order moves:

• Order confirmed before 14:00 CST: Export documentation (commercial invoice, packing list, certificate of origin) prepared same afternoon. Module packed in ESD-safe anti-static bag with foam-lined outer carton rated for air freight handling.
• DHL Express / FedEx International Priority: Booked same evening for next available flight. Tracking number issued to you within 2 hours of pickup scan.
• Transit times (typical): Southeast Asia 1–2 days; Middle East 2–3 days; Europe 3–4 days; North America 3–5 days. These are door-to-door estimates under normal customs clearance conditions.
• Customs documentation: We declare accurately under HS Code 9032.89 (automatic regulating instruments). All export paperwork is prepared to minimize customs hold risk. For destinations requiring an import license or end-user certificate, advise us at order placement and we will coordinate.
• Shipment insurance: Available on request. Recommended for high-value single-unit emergency shipments.

If your plant shutdown cannot wait for standard courier transit, contact us directly. We have arranged charter freight and hand-carry courier services for critical outage situations — it is not common, but when a refinery is down, it is the right call.
