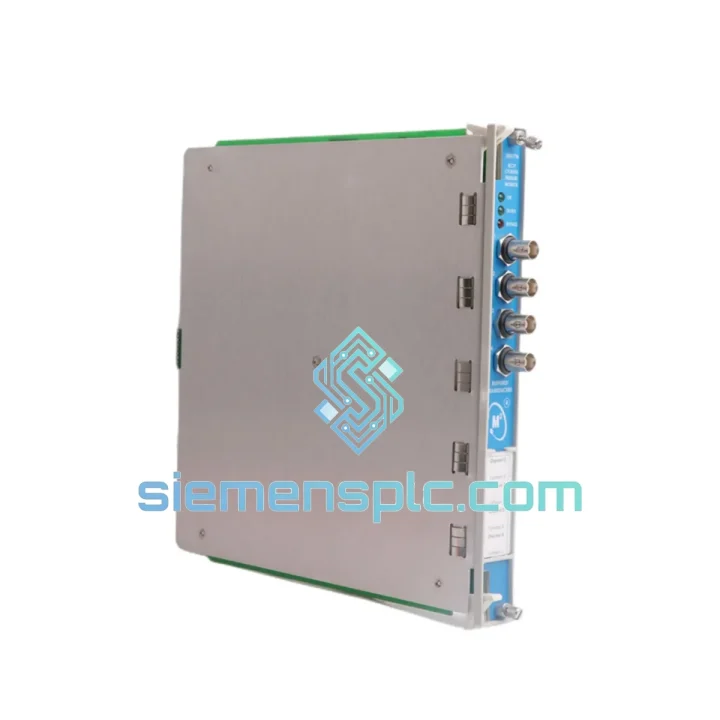

BENTLY NEVADA 3500/77M 140734-07 Machinery Protection Module

3500/77M 140734-07: Cut Compressor Downtime Before It Cuts Your Margin

A tripped 3500/77M slot doesn’t just throw an alarm — it takes your cylinder pressure monitoring offline and leaves a high-speed reciprocating compressor running blind. In oil & gas, petrochemical, and LNG applications, that exposure is measured in tens of thousands of dollars per hour. The OEM lead time on a new module can stretch past 10 weeks. That gap is where production losses compound into a crisis.

We carry the BENTLY NEVADA 3500/77M 140734-07 in our Xiamen warehouse, inspected and ready for same-day dispatch. No waiting on factory allocation. No broker runaround. You confirm the order, we ship it — DHL Express or FedEx International Priority, your choice, within 24 hours.

The 3500/77M is the dedicated Recip Cylinder Pressure Monitor card within Bently Nevada’s 3500 Series Machinery Protection System. It acquires crank-angle-resolved pressure data from piezoelectric transducers, computes real-time rod load, and drives alarm and trip relay outputs through the 3500 rack backplane. When this card fails, you lose rod load protection — the primary safeguard against connecting rod failure and catastrophic crankcase damage. Restoring it fast is not optional.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault signatures that point directly at the 3500/77M card:

• System 1 flags “Module Not Responding” or “Configuration Mismatch” on the 77M slot while adjacent cards remain healthy
• Front-panel OK LED on the 77M position is solid red or absent — not flashing, not amber
• All cylinder pressure channels simultaneously read –9999 or rail to full scale with no process change
• Rod load alarms fire repeatedly with no correlated change in suction/discharge pressure — classic sign of a degraded ADC inside the module
• Intermittent channel loss that worsens as rack temperature climbs — thermal cycling has cracked a solder joint on the analog front end

Eliminate these before condemning the module:

• Measure the 3500/05 power supply output rails. A sagging +5 V line causes 77M communication errors that are indistinguishable from module hardware failure until you check the supply.
• Inspect the backplane connector on the suspect slot under magnification. Bent or oxidized pins produce intermittent faults that survive a reseat and return after a few thermal cycles.
• Confirm the 3500/20 Rack Interface Module is communicating. A failed RIM takes down every card in the rack — the 77M will look dead even if it’s perfectly healthy.
• Check the charge-mode transducer cables for continuity and shield integrity. An open shield on a piezoelectric input line produces noise that the module interprets as a valid pressure signal, generating spurious rod load trips.

Field-proven replacement sequence:

1. Export the rack configuration. Open System 1, export the full rack .cfg file to a USB drive before touching hardware. If the replacement module carries a different firmware revision, you will need this file to restore setpoints and scaling.
2. Confirm slot addressing. The 3500/77M uses automatic backplane slot addressing — no rotary switches, no DIP banks. Slot position in the rack determines the channel address in System 1. Document the physical slot number before removal.
3. Assess hot-swap risk. The 3500 Series supports hot-swap in principle, but verify your specific rack revision and site safety procedures before pulling a live module on a running machine. On critical compressors, coordinate a controlled shutdown window — the 15-minute outage is cheaper than a dropped rod.
4. Seat the replacement card fully. Use the ejector levers to engage the backplane connector completely. Partial seating is the single most common cause of post-replacement faults — the card appears installed but backplane communication is intermittent.
5. Check firmware revision in System 1. After insertion, System 1 reports the module firmware version. If it differs from the previous card, re-download the configuration immediately. Firmware mismatches cause rod load scaling errors — a safety-critical condition on high-speed machines.
6. Verify channel-to-cylinder mapping. Confirm each pressure transducer input maps to the correct cylinder in System 1. A wiring swap at the terminal block inverts rod load polarity and will not trigger an obvious alarm — it will just give you wrong data until a rod fails.
7. Static calibration check before restart. With the compressor at rest and transducers connected, verify all channels read within 1% of zero pressure. Any offset outside that band warrants investigation before you authorize startup.

Reliability in Harsh Conditions

Reciprocating compressor environments impose mechanical, thermal, and electrical stress that most industrial electronics are not designed to survive long-term. The 3500/77M 140734-07 is engineered specifically for this duty cycle.

Mechanical vibration: Recip compressor skids generate broadband vibration from piston stroke, valve impact, and foundation resonance. Bently Nevada qualifies 3500 Series modules to IEC 60068-2-6 sinusoidal and IEC 60068-2-64 random vibration profiles that replicate compressor skid conditions. Critical signal-path components use through-hole construction — not surface-mount only — to resist vibration-induced solder joint fatigue over a 10+ year service life.

Thermal cycling: Outdoor compressor stations in continental climates cycle from sub-zero cold starts to full-load summer heat repeatedly across a service life. The 3500/77M’s analog front end uses precision components selected for low temperature coefficients, maintaining rod load measurement accuracy across the full operating range. Modules that have accumulated 10 or more years of high-cycle thermal exposure should be treated as end-of-life candidates regardless of current function — fatigue failure is a when, not an if.

Humidity and salt atmosphere: Offshore platforms and coastal LNG terminals expose control room electronics to salt-laden humid air year-round. Conformal coating on 3500 Series PCBs provides a barrier against condensation and ionic contamination. Coating integrity degrades at connector interfaces over time — inspect replacement modules for coating condition before installing in high-humidity environments, and ensure the rack enclosure door seals are intact.

Electromagnetic interference: Compressor control rooms routinely share space with variable frequency drives, large motor starters, and high-current bus work — all significant EMI sources. The 3500 rack’s shielded backplane and per-module input filtering maintain signal integrity in these environments. Verify rack chassis ground continuity when installing a replacement module; a broken ground bond is a common source of post-replacement noise that looks like a bad module until you check the ground strap.

Global Express Logistics

Our Xiamen export operation is built around one objective: getting critical spares to your site faster than any alternative. Here is exactly how the process works from the moment you confirm an order:

• Same-day dispatch for in-stock units. Order confirmation received before 15:00 CST triggers same-day pick, ESD inspection, anti-static packaging, and handoff to the freight forwarder. Units confirmed after 15:00 ship the following morning.
• Carrier selection by lane performance. We use DHL Express, FedEx International Priority, and TNT based on current transit performance to your specific destination — not a fixed contract. You get the fastest option available that day, not the cheapest one for us.
• Indicative transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | Australia/NZ 2–3 days. These are door-to-door estimates excluding customs clearance time, which varies by destination and import broker efficiency.
• Pre-clearance documentation package. Commercial invoice with accurate HS code, itemized packing list, certificate of origin (China), and airway bill are provided as PDFs before the aircraft departs — so your import broker can pre-file and clear customs before the shipment lands.
• DG compliance handled in-house. Electronic modules with lithium backup batteries require IATA Section II dangerous goods declaration. We prepare this documentation internally — no third-party DG agent delays.
• Proactive shipment monitoring. We track every AWB and alert you to customs holds, delivery exceptions, or flight delays before you have to ask. You get the AWB number immediately upon dispatch.
• Hand-carry courier for genuine emergencies. When standard express is not fast enough for a production-critical situation, we can arrange hand-carry courier service to major international hubs. Contact us directly to discuss options and cost.
