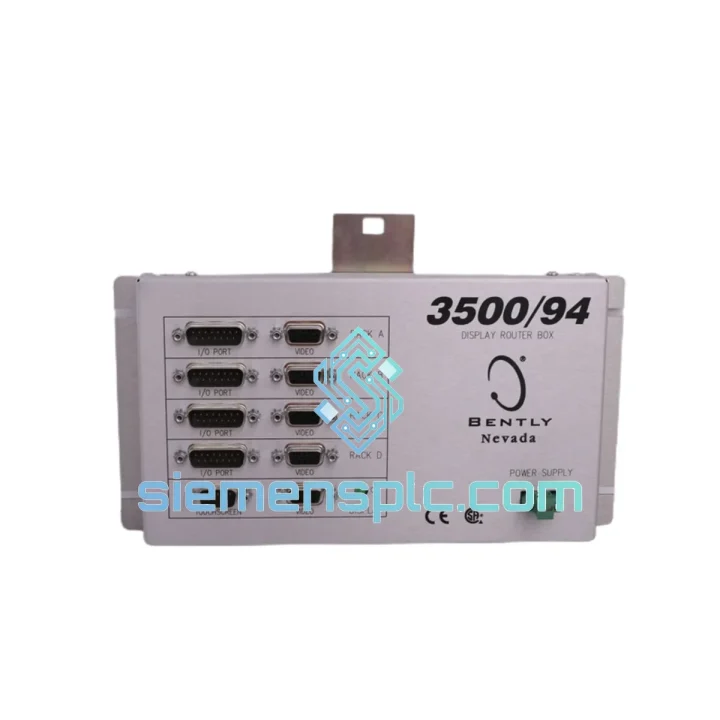

Bently Nevada 3500/94 145988-01 Display Router Module

3500/94 (145988-01) Display Router: Stop the Clock on Your Downtime — Ship Within 24 Hours

Your compressor train is tripped. The 3500 rack is dark on the operator display. Maintenance is standing by. Every hour offline in a petrochemical or power plant costs anywhere from $50,000 to $500,000 in lost production. The 3500/94 Display Router (145988-01) is the single module that bridges your rack’s internal monitoring data to every operator interface and historian in the plant — and when it fails, your protection system goes blind. We stock this module. We ship it today.

We are not a catalog reseller. Our team handles emergency PLC and DCS component sourcing daily, with direct experience in 3500 Series rack architecture. When you call us, you talk to someone who knows the difference between a 3500/94 and a 3500/92, and why swapping them will not fix your problem. We get the right part to you, fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 3500/94:

• Operator display goes blank or freezes while all monitor module OK LEDs remain green — the rack is healthy but the display path is broken. This is the most common field presentation of a failed 3500/94.
• System 1 loses communication with the rack intermittently, especially after a power fluctuation. The display router handles the RIM handshake; a marginal unit will drop the link under thermal stress.
• “Rack Communication Fault” alarm in System 1 with no corresponding monitor module faults — isolate the 3500/94 first before chasing backplane or cable issues.
• Front-panel COMM LED not illuminated during normal operation — confirms the display port is not establishing a link. Check cable first, then swap the module.

Step-by-step hot-swap replacement procedure:

1. Confirm the rack is in Configuration Mode via the 3500/05 RIM front-panel switch — this prevents spurious alarms during module removal. Do not power down the rack unless site safety procedures require it; the 3500 backplane supports live insertion.
2. Disconnect the DB-9 display cable from the front panel of the failed 3500/94. Label it before removal if multiple cables are present.
3. Release the two captive screws on the module front panel and extract the module using the ejector handles. Slide straight out — do not rock the module laterally, as the backplane connector is keyed but the pins are fine-pitch.
4. Inspect the replacement 145988-01 backplane connector for bent pins before insertion. Insert the new module, seat firmly, and tighten captive screws finger-tight plus one-quarter turn.
5. Reconnect the DB-9 display cable. Verify the COMM LED illuminates within 30 seconds of insertion.
6. In System 1, navigate to the rack configuration and perform a “Rack Resynchronize” operation. The display router does not require individual configuration — it auto-discovers the rack’s monitor module complement from the backplane.
7. Confirm all channel data is visible on the operator display and System 1 trend screens. Return the RIM to Normal Mode.
8. Document the replacement in the site’s MOC (Management of Change) log, including the serial number of the removed and installed module, and the firmware revision of the replacement unit.

Critical compatibility check before ordering: The 145988-01 is the base revision. If your rack currently runs a later revision (e.g., 145988-02), confirm downward compatibility with Bently Nevada’s revision history before installation in a SIL 2 certified loop. Contact us — we can verify this for your specific rack serial number before shipment.

Do not confuse with the 3500/92 Communication Gateway (Modbus/TCP, OPC output). The 3500/94 is exclusively for internal display routing within the rack backplane. Ordering the wrong module will not resolve a display communication fault.

Reliability in Harsh Conditions

The 3500/94 was designed for continuous operation in environments that would destroy consumer-grade electronics within weeks. The module’s conformal-coated PCB resists moisture ingress in coastal and offshore installations where salt-laden air accelerates corrosion on unprotected boards. In refinery environments where ambient temperatures routinely exceed 50°C in summer, the module’s 65°C operating ceiling provides genuine headroom — not a marketing specification.

Vibration tolerance is not incidental. The 3500 Series was purpose-built for installation adjacent to the rotating machinery it monitors. Compressor skids, turbine pedestals, and pump foundations transmit continuous broadband vibration into the control cabinet. The 3500/94’s mechanical design — captive fasteners, guided backplane insertion, and board-level component selection — reflects decades of field experience with these conditions. Units that have operated for 10–15 years in refinery service and been decommissioned during plant upgrades frequently test fully functional, which is a direct reflection of the original design margin.

In high-EMI environments — motor control centers, variable frequency drive rooms, switchgear buildings — the RS-422 differential signaling on the display port provides common-mode noise rejection that RS-232 cannot match. If your installation routes the display cable through a cable tray shared with power conductors, the RS-422 interface is what keeps your operator display readable during motor starts.

Every unit we ship has been bench-tested in a live 3500 rack fixture. We do not ship modules that have only passed visual inspection. If a unit fails functional test, it does not ship — regardless of its cosmetic condition. This is the standard we apply because we understand what happens when a replacement module fails on arrival during an emergency shutdown.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, China — a major international cargo hub with direct DHL and FedEx express lanes to every industrial region globally. For emergency orders confirmed before 14:00 CST, same-day dispatch is standard. For orders confirmed after cutoff, next-morning dispatch is the default.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia / New Zealand: 3–4 business days via DHL Express

All shipments include full export documentation: commercial invoice, packing list, HS code declaration (8537.10 or 8543.70 as applicable), and certificate of origin. For customers in countries requiring import permits for industrial control equipment, we provide advance documentation sets to allow parallel customs clearance processing while the shipment is in transit — this alone can recover 1–2 days on your end-to-end delivery timeline.

Shipment tracking is provided at dispatch. For high-value or time-critical orders, we assign a dedicated logistics contact who monitors the shipment through customs clearance and provides proactive updates if any delay is detected. We have handled emergency shipments to active plant shutdowns in Saudi Arabia, Singapore, and the Netherlands — we understand that “urgent” means something specific in this industry.
