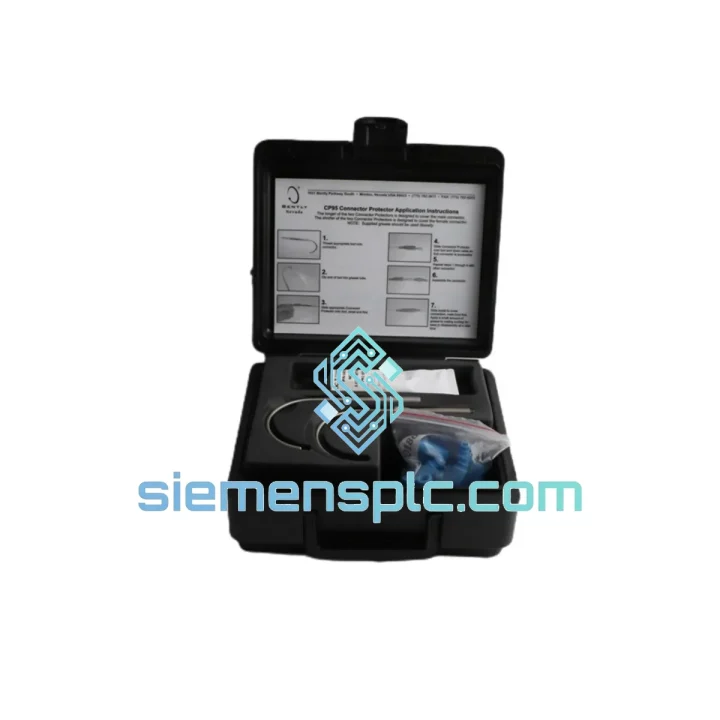

Bently Nevada 40113-02 Connector Protector Kit – 3500 Series

Bently Nevada 40113-02 Connector Protector Kit — Field Interface Integrity for 3500 Series Machinery Protection

Within a continuous machinery protection architecture, the signal chain is only as reliable as its weakest physical interface. The Bently Nevada 40113-02 Connector Protector Kit addresses a failure mode that is frequently underestimated in MRO planning: degradation of the field wiring connector interface on 3500 Series monitor modules. In rotating machinery environments — gas turbines, steam turbine-generator sets, centrifugal compressors, and critical pumps — the connector interface between field transducers and the 3500 rack is exposed to thermal cycling, mechanical vibration, airborne particulates, and in offshore or chemical plant installations, corrosive atmospheres. The 40113-02 provides a mechanical seal and protective barrier at this interface, preventing ingress before it can compromise measurement fidelity or trigger nuisance trips.

The Bently Nevada 3500 Series is the established benchmark for continuous online machinery protection in oil & gas, power generation, petrochemical, and LNG facilities. Its monitor modules — covering radial vibration, axial position, speed, temperature, and process variables — depend on stable, low-noise signal paths from field-mounted transducers. Any contamination at the connector interface introduces resistive or capacitive anomalies that distort the raw signal before it reaches the module’s input conditioning stage. The 40113-02 eliminates this exposure point, maintaining the electrical environment that the 3500 Series signal processing chain was designed to operate within.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500 Series monitor modules use a front-panel I/O connector architecture where field transducer cables terminate directly at the module face. This design prioritizes accessibility for maintenance but places the connector interface in direct exposure to the enclosure environment. In installations where the 3500 rack is mounted in a field junction box or a non-climate-controlled cabinet — common in upstream oil & gas and offshore applications — the connector interface is subject to condensation cycles, salt-laden air, and hydrocarbon vapors.

The 40113-02 Connector Protector Kit functions as a passive environmental barrier at this interface. Its mechanical design conforms to the connector geometry of the 3500 Series module family, providing a close-tolerance fit that resists particulate ingress and limits moisture migration along the connector body. Unlike generic cable management solutions, the 40113-02 is dimensioned specifically for the 3500 Series connector profile, ensuring that the protective function does not introduce mechanical stress on the connector pins or the module’s PCB-mounted connector receptacle.

From an EMC perspective, an unprotected connector interface in a high-electromagnetic-interference environment — such as a switchgear room or a motor control center — can act as an unintentional antenna, coupling common-mode noise into the signal lines. The 40113-02’s physical enclosure of the connector interface reduces this coupling surface area, contributing to the overall EMC integrity of the measurement chain. This is particularly relevant for proximity probe circuits, where the Proximitor sensor output is a DC-biased AC signal in the 5–10 kHz range, and any injected noise directly affects gap voltage accuracy and vibration amplitude measurement.

The kit’s material selection is consistent with Bently Nevada’s standard for field accessories: resistant to the thermal range encountered in turbine enclosures (typically −20°C to +70°C ambient at the rack), and chemically compatible with the cleaning agents and lubricants present in machinery spaces. The mechanical retention mechanism is designed for repeated installation and removal cycles without degradation of the sealing function, supporting the inspection intervals typical of planned maintenance shutdowns.

System Integration Benefits

• Sustained measurement accuracy: Eliminates the primary environmental pathway for signal degradation at the transducer-to-monitor interface, preserving the amplitude and phase accuracy of vibration and position measurements over the full service interval between planned outages.
• Reduction in nuisance trips: Intermittent connector contamination is a documented root cause of spurious alarm and trip events in 3500 Series installations. The 40113-02 removes this variable from the fault tree, reducing the frequency of unplanned investigations and false shutdowns.
• Maintenance cycle compatibility: Designed for tool-free installation and removal, the protector kit integrates into standard inspection routines without adding procedural complexity or extending outage duration.
• Diagnostic transparency: By stabilizing the connector interface, the 40113-02 ensures that alarm and trip events recorded by the 3500 Series system reflect genuine machinery condition changes rather than instrumentation artifacts, improving the reliability of post-event analysis.
• Extended connector service life: Physical protection of the connector pins and mating surfaces reduces oxidation and fretting corrosion, extending the interval before connector replacement is required and reducing the total cost of ownership of the 3500 rack installation.
• EMC noise floor improvement: Enclosing the connector interface reduces the effective antenna area for common-mode noise coupling, contributing to a lower noise floor in proximity probe and accelerometer measurement channels.
• Compatibility with redundant configurations: In dual-channel or redundant 3500 Series configurations, consistent connector protection across all active and standby channels ensures that switchover events are not complicated by differential signal quality between channels.
• Spare parts program alignment: The 40113-02 is a standard Bently Nevada catalog item, making it straightforward to include in site-level MRO spare parts programs with defined reorder points and stock levels, supporting a proactive rather than reactive maintenance posture.
