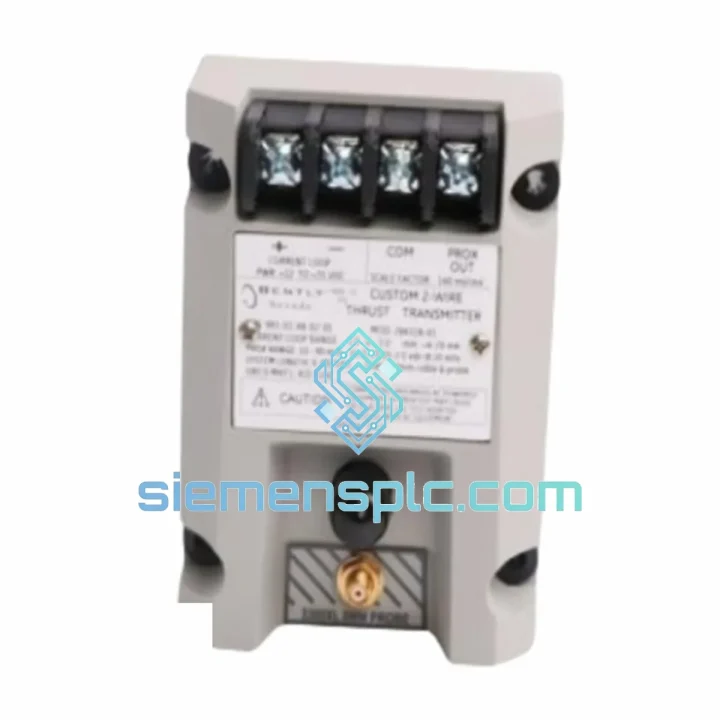

Bently Nevada 991-01-XX-01-01 MOD:284318-01 — Axial Thrust Transmitter for 3500 Series Machinery Protection

The 991-01-XX-01-01 MOD:284318-01 occupies a deterministic position in the 3500 Series signal chain: it receives the raw differential voltage from an eddy-current proximity probe driver, applies span and zero calibration, and outputs a galvanically isolated 4–20 mA analog signal proportional to rotor axial displacement. This is not a passive signal conditioner. The module performs active linearization against the probe’s characteristic curve, compensating for gap-voltage nonlinearity across the full measurement range. In a thrust protection loop, the transmitter’s output feeds directly into the 3500/42M monitor card, which executes alert and danger setpoint comparisons at a scan rate of 20 ms or better — fast enough to catch axial excursions before bearing wipe initiates.

Axial thrust failure is among the most destructive failure modes in rotating machinery. A rotor displaced beyond its thrust bearing clearance — typically 0.25 mm to 0.75 mm depending on machine class — will contact stationary components within milliseconds. The 991-01-XX-01-01 MOD:284318-01 provides the measurement fidelity required to set alert thresholds at 50–60% of danger, giving the control system time to initiate an orderly shutdown rather than a trip-and-coast event. In steam turbine applications, this distinction can mean the difference between a planned outage and a catastrophic blade-to-casing contact event.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 991-01-XX-01-01 MOD:284318-01 is built around a differential input stage that rejects common-mode noise from the probe cable — a critical design requirement in environments where variable-frequency drives, high-current bus bars, and RF sources generate broadband electromagnetic interference. The input impedance is matched to the probe driver’s output impedance to prevent loading effects that would shift the gap-voltage-to-displacement transfer function.

Galvanic isolation between the input stage and the 4–20 mA output loop is implemented via transformer-coupled DC/DC conversion and optocoupler signal paths. This architecture breaks ground loops that would otherwise introduce 50/60 Hz interference into the measurement — a common failure mode when probe cables share conduit with power wiring. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements, protecting the module during nearby switching events or lightning-induced transients on field wiring.

The MOD:284318-01 modification designation indicates a factory-configured variant with specific span and zero calibration parameters matched to a defined probe type and gap range. This eliminates field calibration ambiguity: the module arrives pre-characterized, and the installer’s task is limited to verifying the probe gap at the nominal operating point. The 3500 rack’s configuration software (System 1 or Rack Configuration Software) stores the module’s calibration coefficients, enabling automated verification during commissioning and periodic proof tests.

EMC performance is further reinforced by the 3500 rack’s backplane architecture, which provides a low-impedance ground reference plane shared across all modules. This common reference suppresses differential noise between channels — important when comparing thrust position against radial vibration data in a multi-channel protection logic scheme. The backplane also distributes power with local decoupling, preventing high-frequency switching noise from the rack power supply from coupling into the analog measurement path.

System Integration Benefits

• Direct DCS/SIS Interface: The 4–20 mA output connects to any analog input card without signal conditioning hardware, reducing BOM complexity and eliminating intermediate conversion errors.
• Deterministic Scan Rate: The 3500/42M monitor processes transmitter output at ≤ 20 ms intervals, providing protection response times compatible with API 670 requirements for critical machinery.
• Diagnostic Transparency: The 3500 platform reports module health, cable fault status, and out-of-range conditions via the rack’s communication gateway, enabling predictive maintenance without physical inspection.
• Rack-Level Redundancy Support: The 3500 architecture supports redundant power supplies and communication paths; the transmitter module participates in the rack’s overall fault-tolerant design without requiring external redundancy hardware.
• Pre-Characterized Calibration: MOD:284318-01 factory calibration eliminates field span/zero adjustment, reducing commissioning time and the risk of calibration errors during installation.
• Multi-Channel Correlation: Axial position data from this transmitter can be correlated with radial vibration channels in the same rack to detect coupled failure modes — for example, rotor bow causing simultaneous thrust and vibration excursions.
• API 670 Compliance Path: The 3500 Series is the reference platform for API 670 (Machinery Protection Systems) compliance; using this transmitter within the 3500 rack simplifies the documentation burden for new installations and audits.
• Long-Term Parts Availability: The 3500 Series has been in continuous production for over two decades; the module’s form factor and backplane interface are backward-compatible with earlier rack generations, protecting the capital investment in existing installations.
• Reduced Wiring Complexity: Backplane power distribution eliminates individual module power wiring, reducing panel wiring density and the associated risk of wiring errors during maintenance.
• Software-Driven Configuration: All setpoint, damping, and output scaling parameters are stored in the rack’s non-volatile memory and can be retrieved, compared, and restored via configuration software — eliminating the risk of undocumented field adjustments.
