Bently Nevada TM0180-08-00-15-10-02 Extension Cable

BENTLY NEVADA TM0180-08-00-15-10-02 — Stop the Clock on Your Downtime

Your turbine is down. The protection system is blind. Every minute the shaft keeps spinning without a valid vibration signal is a minute closer to a catastrophic bearing failure — and at $260,000/hour in lost production, you cannot afford to wait three weeks for a factory lead time. The TM0180-08-00-15-10-02 is in stock in Xiamen right now. We ship DHL Express within 24 hours of order confirmation. That is the only number that matters when your plant is offline.

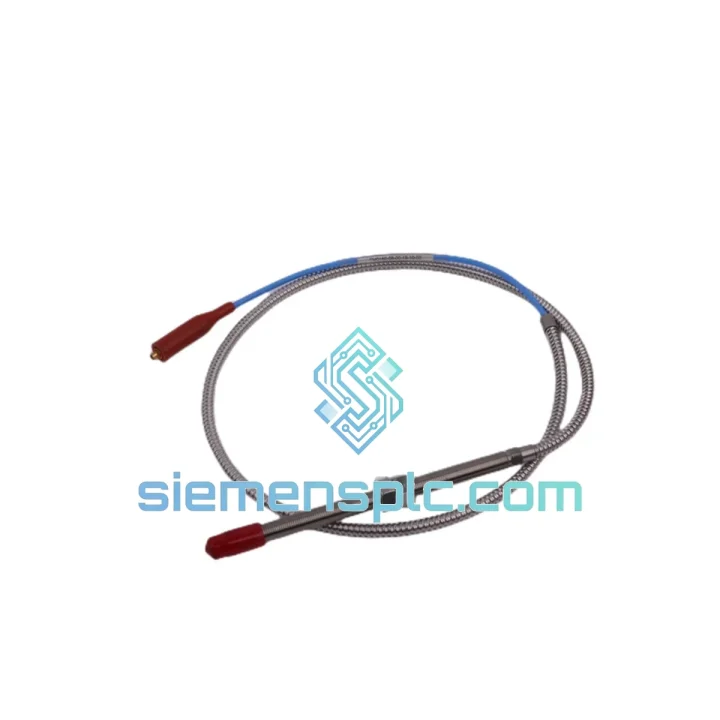

This 8-meter armored extension cable is the precision signal link between your eddy-current proximity probe and the Proximitor® sensor in Bently Nevada 3300 Series and 7200 Series monitoring systems. It is not a generic cable. It is a matched-impedance assembly — 350 Ω system total, 95 pF/m capacitance — engineered so your Proximitor® stays within its calibrated operating window without any recalibration after swap. Pull the old cable, plug in the new one, verify gap voltage, and you are back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting and Replacement Tips

Confirm the cable is your fault point before ordering — 10 minutes at the terminal strip:

Disconnect the extension cable at both ends. Set your LCR meter to 1 kHz and measure capacitance — you are looking for 95 pF/m +/-5%. An 8-meter cable should read approximately 760 pF total. Anything outside 720-800 pF means the dielectric has been compromised, usually by moisture ingress at a cracked jacket or an unseated connector. Next, run a 500 VDC megger test between center conductor and shield — insulation resistance below 100 MOhm confirms moisture damage. If either test fails, the cable is your culprit.

Common fault codes triggered by a degraded TM0180-08-00-15-10-02:

• OK/Not OK LED flashing on Proximitor module — Gap voltage has drifted outside -10 to -18 VDC. First suspect: cable capacitance out of spec shifting the Proximitor operating point.
• 3500 rack Not OK channel alarm with no process change — Intermittent connector contact resistance at the MIL-C-5015 junction. Inspect gold plating for fretting corrosion from micro-vibration. Reseat and torque to spec; if alarm persists, replace cable.
• High static gap voltage above -18 VDC — Open circuit in center conductor. Check for cable crush at conduit entry points or bend radii below 25 mm static minimum.
• High broadband noise floor on vibration spectrum — Shield continuity broken. Measure shield resistance end-to-end; should be less than 1 Ohm. Values above 5 Ohm indicate braid damage, typically at an over-tightened conduit fitting.

Step-by-step replacement procedure:

1. Inhibit the trip output for this channel at the 3500 rack before disconnecting — prevents a spurious shutdown.
2. Photograph existing cable routing, conduit entry points, and connector orientation before removal.
3. Disconnect probe-end connector first (at bearing housing), then Proximitor-end. Connectors are keyed — do not force rotation.
4. Route new TM0180-08-00-15-10-02 through existing conduit. Maintain minimum 25 mm static bend radius. Do not exceed 50% conduit fill.
5. Seat both connectors fully and engage locking ring until you feel the detent click. A half-seated MIL-C-5015 is the most common cause of post-replacement intermittent faults.
6. Power up Proximitor and verify gap voltage is within -10 to -18 VDC at expected probe-to-target gap (typically 1.0-1.5 mm for 8 mm probes). No recalibration required — matched impedance is factory-set.
7. Remove trip inhibit, verify OK LED is steady, log replacement in your CMMS with cable serial number.

What you do NOT need to configure: Unlike PLC I/O modules, this cable has no firmware, no DIP switches, no address setting, no software commissioning. The only constraint is physical: total system cable length must not exceed 9.0 m (probe cable + extension cable combined) per API 670 Section 5.3.

Reliability in Harsh Conditions

The TM0180-08-00-15-10-02 was built for the inside of a gas turbine pedestal — 70 C ambient, continuous 120 Hz structural vibration, hydrocarbon mist, and an 18-month maintenance interval. The construction reflects that operating reality.

The PTFE inner insulation maintains stable dielectric properties from -50 C to +125 C without softening, cracking, or absorbing moisture. PTFE does not age the way PVC does — capacitance measured on day one matches capacitance measured five years later, assuming jacket integrity is maintained. The stainless steel armored braid provides simultaneous mechanical protection against cable crush in conduit and electromagnetic shielding exceeding 85 dB across 10 Hz to 10 kHz — the frequency range relevant to rotating machinery fault detection. In plants with multiple variable-frequency drives, that shielding is the difference between a clean vibration spectrum and a noise floor that masks real fault frequencies before they reach alarm threshold.

The MIL-C-5015 gold-plated connectors are rated for 20g vibration — aerospace-grade. Gold plating eliminates fretting corrosion that destroys tin-plated contacts in high-vibration environments within 12-18 months. The locking ring prevents self-loosening under continuous vibration, a failure mode responsible for a significant share of intermittent monitoring channel faults in compressor and turbine applications. IP67 rating on the assembled connector means the cable survives temporary immersion — relevant for offshore platforms, outdoor pump skids, and paper mill wash-down environments.

Global Express Logistics

Stock is held in Xiamen — one of Asia’s most connected export hubs, with direct DHL Express and FedEx International Priority flights to major industrial centers worldwide. Orders placed before 18:00 CST ship same business day. Orders placed after 18:00 CST ship the following morning. No warehouse processing delay, no consolidation wait. Export documentation — commercial invoice, packing list, ECCN classification, country of origin declaration — is handled in-house and included with every shipment.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand): 2-3 business days, DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3-4 business days, DHL Express or FedEx IP
• Europe (Germany, Netherlands, UK, France): 3-5 business days, DHL Express
• North America (USA, Canada, Mexico): 3-5 business days, FedEx International Priority
• South America (Brazil, Chile, Colombia): 5-7 business days, DHL Express
• Australia and New Zealand: 3-4 business days, DHL Express

For ATEX-regulated plants requiring material traceability, we provide a Certificate of Conformance and original Bently Nevada factory datasheet with each unit. For urgent orders requiring same-day dispatch confirmation, contact us via WhatsApp before placing your order online — we will confirm stock, generate a proforma invoice, and initiate the DHL booking in parallel, cutting 2-4 hours off standard processing time when every hour counts.
