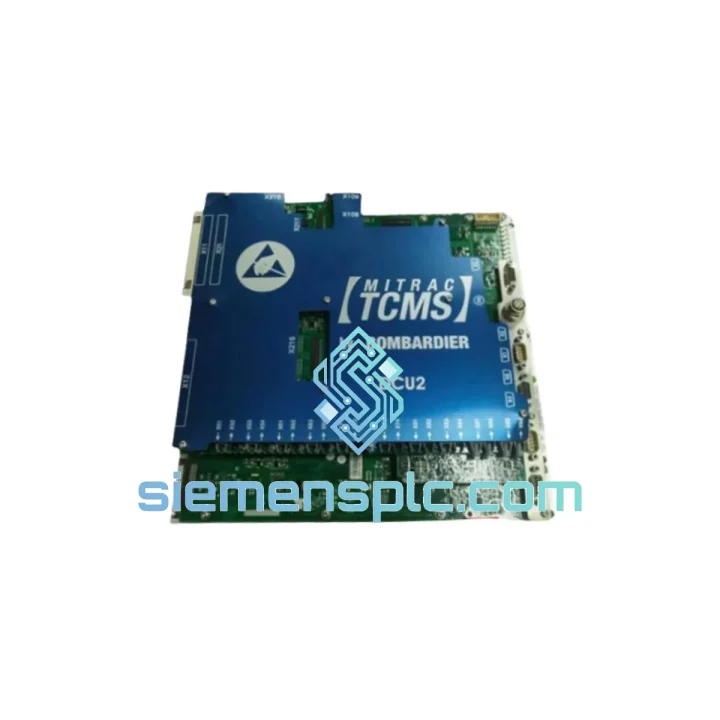

BOMBARDIER DCU2 DCC 2580B Drive Control Unit – DCC Series

BOMBARDIER DCU2 DCC 2580B — Traction Inverter Interface Controller in Rail Propulsion Architecture

The DCU2 DCC 2580B is a second-generation Drive Control Unit within BOMBARDIER Transportation’s DCC (Drive Control and Communication) platform, purpose-engineered for closed-loop traction management in metro, light rail, and electric multiple unit (EMU) rolling stock. Its primary function is to serve as the deterministic command and feedback layer between the vehicle control unit (VCU) and the traction inverter power stage — translating high-level propulsion commands into precisely timed IGBT gate-drive sequences while simultaneously aggregating inverter status, thermal telemetry, and fault vectors back to the train management system (TMS).

Unlike general-purpose industrial controllers, the DCU2 DCC 2580B is architected around the specific timing constraints of rail traction: torque ramp rates must be coordinated with wheel-slip detection algorithms, braking blending logic must arbitrate between regenerative and friction braking within sub-millisecond windows, and all of this must execute without jitter across the full operating temperature range of −25 °C to +70 °C. The module achieves this through a dedicated real-time processing core isolated from communication stack overhead, ensuring that control loop execution is never preempted by diagnostic or telemetry tasks.

Deployed across BOMBARDIER MOVIA, INNOVIA, and FLEXITY platform families, the DCU2 DCC 2580B has accumulated field hours across transit networks in Europe, Asia-Pacific, and North America. Its form-fit-function compatibility with existing DCC Series rack assemblies makes it the standard replacement unit for mid-life overhaul programs and unplanned maintenance events where minimizing mean time to repair (MTTR) is operationally critical.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DCU2 DCC 2580B’s internal architecture reflects the design philosophy of separating time-critical traction control execution from non-deterministic communication and diagnostic functions. The control core operates on a fixed-cycle interrupt-driven scheduler, where the PWM generation task for IGBT gate signals holds the highest priority and cannot be preempted. This architectural decision directly prevents the torque ripple and inverter desynchronization faults that occur in systems where control and communication share a single execution context.

EMC and Isolation Architecture: The module employs multi-layer galvanic isolation between the low-voltage logic domain and the inverter interface signals. Optocoupler-based gate drive feedback paths provide common-mode rejection ratios (CMRR) sufficient to suppress the high dV/dt transients generated by IGBT switching events — transients that can reach several kV/μs in high-power traction inverters. The PCB layout enforces strict separation between analog signal traces and digital switching domains, with dedicated ground planes and ferrite bead filtering on all inter-domain signal crossings.

Thermal Management: The component selection and PCB thermal design account for the cumulative heat load of continuous traction duty cycles. Power dissipation paths are routed to the module’s aluminum heatsink interface, which mates directly with the DCC rack’s forced-air cooling channel. Junction temperature monitoring on critical semiconductors feeds back into the module’s thermal derating logic, which adjusts PWM frequency and switching losses before any component reaches its thermal limit — a proactive protection mechanism that extends service life beyond the standard overhaul interval.

Redundancy and Fault Arbitration: The DCU2 DCC 2580B implements watchdog-supervised execution with hardware-enforced safe-state output logic. If the control core fails to service the watchdog within the defined timeout window — whether due to software fault, memory corruption, or external interference — the hardware watchdog asserts a gate-drive inhibit signal that disables all IGBT switching within one PWM cycle. This fail-safe mechanism operates independently of software and cannot be masked by firmware, ensuring that inverter protection is maintained even during catastrophic controller failure events.

System Integration Benefits

• Zero-Modification Replacement: The DCU2 DCC 2580B maintains full form-fit-function compatibility with existing DCC Series rack assemblies. Connector pinout, mechanical envelope, and backplane protocol are preserved from the first-generation DCU, eliminating the need for harness modifications or firmware re-parameterization in standard replacement scenarios.
• Deterministic Torque Response: The isolated real-time control core delivers consistent torque command execution latency regardless of diagnostic bus load, enabling the VCU’s wheel-slip detection and traction control algorithms to operate on predictable feedback timing — a prerequisite for stable adhesion management on low-friction rail surfaces.
• Regenerative Braking Coordination: The module’s braking blending logic arbitrates between regenerative energy return to the DC link and friction brake activation within the sub-millisecond timing window required by EN 50126 safety integrity requirements, maximizing energy recovery without compromising braking distance compliance.
• Diagnostic Transparency: Onboard non-volatile fault logging captures timestamped event records including fault code, operating state at fault onset, and thermal/electrical context data. This log is accessible via the DCC diagnostic port without interrupting traction operation, reducing diagnostic time during scheduled maintenance windows.
• Thermal Derating Intelligence: Proactive junction temperature monitoring and automatic PWM frequency adjustment prevent thermal shutdown events during sustained high-load duty cycles — particularly relevant for metro operations with short headways and frequent acceleration/braking cycles.
• EMC Hardening for Traction Environment: Compliance with EN 50121-3-2 ensures the module does not contribute to conducted or radiated emissions that could interfere with signaling and communication systems operating in the same vehicle or wayside infrastructure.
• Watchdog-Enforced Safe State: Hardware-level gate-drive inhibit on watchdog timeout provides inverter protection that is independent of software state, satisfying the fail-safe requirements of SIL-rated traction control architectures without requiring additional external protection relays.
• Reduced MTTR in Fleet Maintenance: The module’s plug-and-play replacement profile, combined with its onboard fault log, allows maintenance teams to swap a failed unit, retrieve diagnostic data from the removed module, and return the vehicle to service without extended bench diagnostics — directly reducing fleet unavailability time.

Quality Assurance & Global Logistics

Every BOMBARDIER DCU2 DCC 2580B unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification sequence. Visual inspection confirms connector integrity, PCB surface condition, and component seating. Functional bench testing validates backplane communication handshake, gate-drive output signal integrity, and fault logging operation against OEM reference parameters. Part number, hardware revision, and serial number are cross-referenced against OEM documentation to confirm unit identity before packaging.

Units are packaged in anti-static ESD shielding bags, enclosed in custom-cut conductive foam inserts, and shipped in double-wall corrugated cartons rated for international air freight handling. For sensitive or high-value shipments, wooden crating with shock-indicator labels is available on request.

Logistics from Xiamen covers all major international freight lanes. Standard export documentation — commercial invoice, packing list, certificate of origin — is prepared for every shipment. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers for time-critical orders. For bulk or freight-class shipments, we coordinate with licensed freight forwarders experienced in industrial electronics export compliance. Typical transit times: 3–5 business days to Europe, 2–4 business days to Southeast Asia, 5–7 business days to North America. All units ship with 12-month warranty coverage from the date of shipment.
