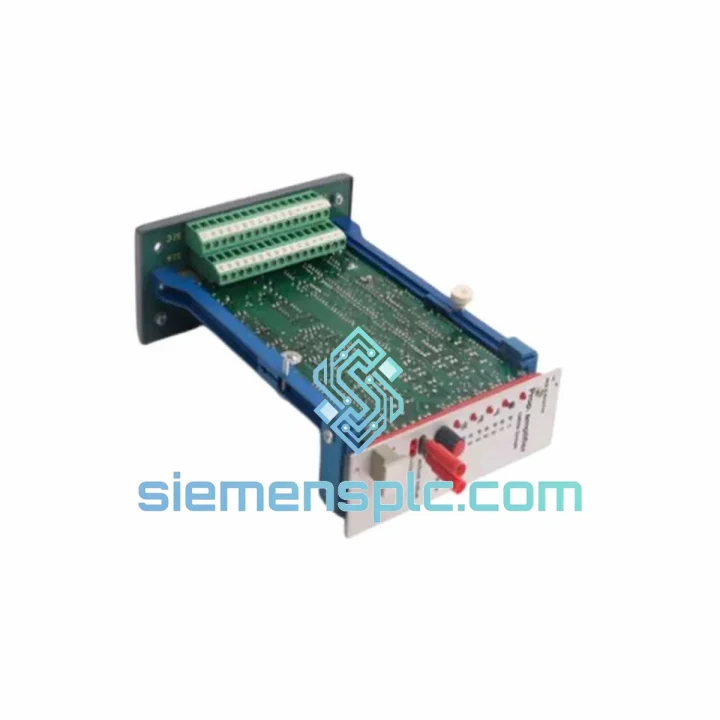

Bosch Rexroth TDM1.2-30-300-W1 AC Servo Drive

TDM1.2-30-300-W1 In Stock — Every Hour of Downtime Costs More Than This Drive

Your CNC axis just faulted. The line is stopped. Maintenance is standing by. You’ve already pulled the drive and confirmed it: TDM1.2-30-300-W1 — dead. The clock is running, and every hour this machine sits idle is money you won’t recover. We stock this unit. We ship from Xiamen. DHL Express to your dock in 48–72 hours. That’s the only number that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on Rexroth TDM1 drives teach you the same lessons repeatedly. Here’s what actually matters when you’re standing in front of a dead axis at 2 AM:

Common Fault Codes on TDM1.2-30-300-W1:

• F228 / F229 — Motor Encoder Error: Before condemning the drive, swap the IKS encoder cable first. Connector corrosion at X2 kills more drives in the diagnostic report than actual drive failures. Clean the pins, re-seat, and power cycle. If the fault clears, you saved yourself a drive swap.
• F401 — DC Bus Undervoltage: Check the TVM or KDS supply module first. A failing capacitor bank in the supply will pull the bus below threshold and fault every axis simultaneously. If all axes fault together, the drive is not the problem.
• F218 — Overcurrent / Short Circuit: Measure motor winding resistance phase-to-phase and phase-to-ground before installing the replacement. A shorted MKD motor will destroy a new drive within seconds of enable. Resistance should be balanced within 5% across phases; ground isolation should exceed 1 MΩ.
• F860 — Firmware Parameter Mismatch: Critical on W1 replacements. If the machine was previously running a W0 variant, the parameter set is not directly transferable. You must reload the axis parameters from the CNC backup or re-enter them manually from the machine documentation. Do not assume the drive will self-configure.
• Drive powers on but axis won’t enable (no fault displayed): Check the enable chain — X4 connector pin 1 (AS1/AS2 safety relay contacts). Rexroth TDM1 requires a closed safety relay circuit before the power stage will arm. A tripped E-stop relay upstream will present exactly like a dead drive to an inexperienced technician.

Replacement Procedure — Field Checklist:

• ☐ Power down the entire drive cabinet. Verify DC bus discharge (wait minimum 5 minutes after power-off; measure bus capacitors with a meter before touching).
• ☐ Label and photograph all cable connections on the failed unit before removal — X1, X2, X3, X4, X5, and the DC bus bars.
• ☐ Note the address switch (S1) setting on the failed drive. The replacement must be set to the identical address before installation. TDM1 drives use a rotary hex switch on the front panel for axis addressing in multi-axis cabinets.
• ☐ Verify firmware variant on the replacement unit matches the original (W1 = W1). Cross-variant substitution requires full parameter re-commissioning.
• ☐ Torque the DC bus bar bolts to spec (typically 2.5 Nm). Loose bus connections cause intermittent F401 faults that are nearly impossible to diagnose remotely.
• ☐ After installation, perform a controlled enable at zero speed reference before commanding motion. Confirm current feedback is within expected range before running the axis.

Reliability in Harsh Conditions

The TDM1 series was engineered for the factory floor, not a climate-controlled server room. The power stage uses IGBT modules rated for industrial thermal cycling, and the control board conformal coating provides baseline protection against humidity and particulate contamination. That said, field reality is harder than the datasheet.

Units operating in foundry environments or near coolant mist will eventually show corrosion on the X2 encoder connector and the internal bus capacitors. When sourcing a replacement, inspect the capacitor date codes — capacitors older than 10–12 years in service are a known failure point regardless of the drive’s apparent condition. Our stock is inspected for exactly this: we check capacitor condition, board corrosion, and IGBT gate drive integrity before any unit ships.

Vibration is the other silent killer. TDM1 drives mounted in cabinets bolted directly to press frames or stamping machines experience continuous mechanical stress on solder joints. If your replacement fails within weeks of installation in a high-vibration environment, the root cause is almost certainly the mounting arrangement, not the drive itself. Use anti-vibration mounts on the cabinet feet and verify the drive is seated firmly in its guide rails with the locking lever fully engaged.

Operating temperature range for the TDM1.2-30-300-W1 is 0–45°C ambient at the drive inlet. Cabinet temperatures above 40°C will trigger thermal derating and eventually F218 overcurrent faults under load. If your cabinet runs hot, clean the fan filters and verify the cooling fan on the drive itself is spinning freely — the fan bearing is another common wear item on older units.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct DHL Express and FedEx International Priority access. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. The unit is packed in anti-static ESD foam, double-boxed, and handed to DHL or FedEx the same afternoon.
• Transit to Southeast Asia: 24–48 hours door-to-door.
• Transit to Europe / Middle East: 48–72 hours with DHL Express Worldwide.
• Transit to North America: 72–96 hours via FedEx International Priority.
• Customs documentation: We prepare the commercial invoice, packing list, and HS code declaration (HS 8537.10) for smooth customs clearance. For buyers in the EU, we can provide EUR.1 or origin certificates on request.
• Tracking: AWB number sent to your email within 2 hours of dispatch. Real-time tracking link provided.

For production-critical shipments, we recommend DHL Express Time Definite. If your plant is in a remote location or a country with complex import procedures, contact us before ordering — we’ve shipped to over 60 countries and know where the friction points are.
