Bosch Rexroth WV60-RGC2 Proportional Valve Controller – WV60 Series

Bosch Rexroth WV60-RGC2: Closed-Loop Current Amplifier for Proportional Hydraulic Valve Control

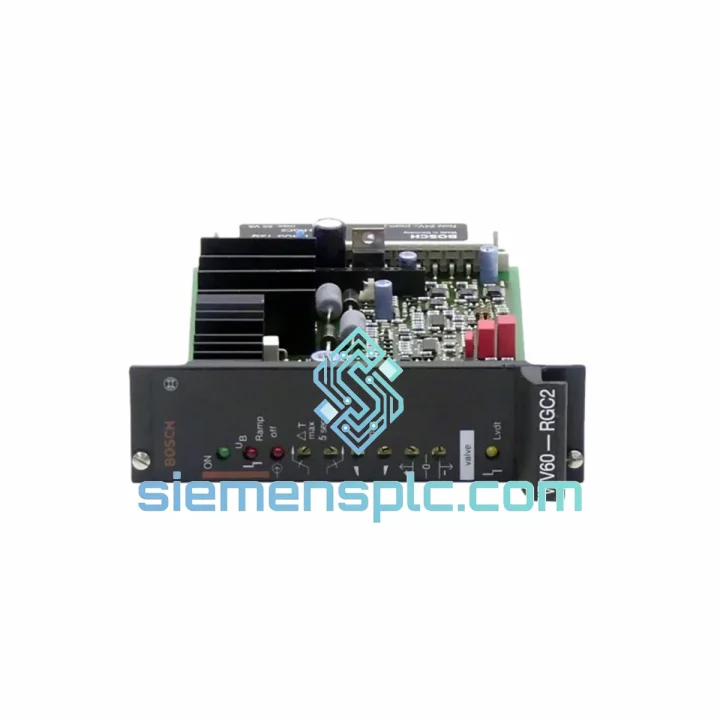

The Bosch Rexroth WV60-RGC2 is a dedicated proportional valve amplifier card engineered to serve as the electronic command interface between a PLC analog output and a proportional solenoid valve. In any hydraulic control loop — whether governing injection pressure on a plastics machine, ram velocity on a metal-forming press, or flow rate on a test bench — the amplifier card is the component that translates a ±10 V or 4–20 mA setpoint signal into a precisely regulated solenoid drive current. Without a correctly functioning amplifier, the valve operates open-loop or fails entirely, and the axis loses positional and force authority.

Within the WV60 family, the RGC2 variant designates a regulated current output stage with integrated ramp generation and a hardware enable channel. The regulated output topology means the solenoid current remains stable against supply voltage fluctuations and coil resistance drift caused by thermal cycling — a critical characteristic in continuous-duty industrial environments where ambient temperatures can swing 40 °C across a shift. The ramp generator imposes a configurable slew rate on the current command, preventing hydraulic shock loads that would otherwise stress valve spools, actuator seals, and downstream piping at every enable/disable transition.

Bosch Rexroth’s WV60 amplifier platform has accumulated a substantial installed base across European and Asian manufacturing sectors since its introduction. The card’s architecture follows Rexroth’s established practice of separating the signal conditioning stage from the power output stage on a single PCB, with optocoupler isolation at the command input to break ground loops between the PLC cabinet and the hydraulic power unit. This isolation is not cosmetic: in large machine tools and press lines, ground potential differences between the control cabinet and the hydraulic manifold can reach several volts, sufficient to introduce significant current errors in a non-isolated design.

The WV60-RGC2 is stocked at our Xiamen, China facility and is available for immediate dispatch to industrial buyers globally. All units undergo incoming inspection against Bosch Rexroth reference documentation before dispatch. A 12-month warranty applies to every unit shipped.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Specifications are based on Bosch Rexroth published documentation. Contact us to verify compatibility with your specific valve model and system configuration.

Hardware Logical Analysis

The WV60-RGC2 PCB architecture reflects Bosch Rexroth’s design philosophy of separating signal integrity from power delivery at the board level. The command input path uses differential signal reception followed by optocoupler isolation, which eliminates common-mode noise injection from the PLC analog output module. In hydraulic machine environments, variable-frequency drives, servo amplifiers, and solenoid switching transients generate broadband conducted and radiated interference; the optocoupler barrier presents a high-impedance discontinuity to these noise sources, preserving command signal fidelity down to the millivolt level.

The output stage employs a closed-loop PWM current regulator. A precision shunt resistor in series with the solenoid coil provides continuous current feedback to the regulator, which adjusts the PWM duty cycle to maintain the commanded current setpoint regardless of coil resistance variation. Solenoid coil resistance increases approximately 0.4% per °C; across a 40 °C thermal rise during continuous operation, an unregulated voltage-drive amplifier would deliver roughly 14% less current than commanded — a positioning error that would be unacceptable in a closed-loop pressure or flow control application. The WV60-RGC2’s regulated topology eliminates this drift entirely.

The ramp generator operates on the current command signal upstream of the output stage. Ramp time constants are set via onboard potentiometers, allowing independent adjustment of the acceleration and deceleration profiles. This is mechanically significant: a proportional directional valve with a 10 ms step response, driven without ramp limiting, will generate a pressure spike proportional to the fluid column inertia and the valve’s flow gain. In a 200-bar system with a 50-liter actuator, such spikes can exceed 350 bar transiently, exceeding the pressure rating of standard hydraulic fittings. The ramp function is therefore not a convenience feature — it is a system protection mechanism.

The hardware enable input is designed to interface directly with PLC safety output modules or relay-based E-stop circuits. When the enable signal is removed, the output stage is hard-disabled at the gate driver level, not merely commanded to zero — ensuring the solenoid de-energizes within microseconds regardless of the command signal state. This architecture is compatible with SIL 2 safety function implementations where the amplifier enable channel forms part of the safety-rated de-energization path.

System Integration Benefits

• Direct PLC Analog Interface: Accepts standard ±10 V DC differential command signals from Siemens S7-300/400/1500 analog output modules (SM 332, AQ series) without signal conditioning hardware, reducing panel wiring complexity.
• Ground Loop Immunity: Optocoupler-isolated command input eliminates ground potential differences between the PLC cabinet and the hydraulic power unit, preventing systematic current offset errors in multi-axis installations.
• Thermal Drift Compensation: Closed-loop current regulation maintains solenoid drive current within ±0.5% of setpoint across the full operating temperature range, ensuring consistent valve positioning throughout the production shift.
• Hydraulic Shock Suppression: Adjustable ramp-up/ramp-down function limits the rate of current change at valve enable/disable transitions, protecting actuator seals, manifold fittings, and downstream instrumentation from pressure transients.
• Safety Circuit Compatibility: Hardware enable input integrates into PLC safety output circuits and relay E-stop chains, supporting SIL 2 de-energization functions without additional interposing relays.
• Minimal Re-commissioning: As a direct replacement for existing WV60-RGC2 installations, the card retains the same connector pinout and adjustment potentiometer layout, allowing swap-out without rewiring or parameter re-entry.
• Diagnostic Transparency: LED status indicators on the card face provide real-time visibility of supply voltage presence, enable state, and output active status — enabling maintenance personnel to isolate faults at the amplifier level without oscilloscope access.
• Broad Valve Compatibility: Designed for use with Bosch Rexroth proportional directional control valves and proportional pressure/flow valves in the WV60-compatible range, covering the majority of Rexroth proportional hydraulic installations from the 1990s to present.

Quality Assurance & Global Logistics

Every WV60-RGC2 unit dispatched from our Xiamen facility is a genuine Bosch Rexroth component. Incoming units are verified against Bosch Rexroth part number databases, with physical inspection of PCB markings, revision codes, and connector integrity. Units showing evidence of counterfeit manufacture, unauthorized repair, or component substitution are rejected and not offered for sale.

Packaging follows anti-static and moisture-barrier protocols: each card is sealed in an ESD-protective bag, placed in foam-lined inner packaging, and shipped in a double-wall corrugated outer carton rated for international air freight handling. This packaging specification is designed to survive the mechanical shock and humidity exposure typical of DHL Express and FedEx International Priority transit from Xiamen to destinations in Europe, the Middle East, Southeast Asia, and the Americas.

Xiamen Gaoqi International Airport (XMN) provides direct cargo connections to major hub airports in Frankfurt, Dubai, Singapore, and Los Angeles, enabling transit times of 3–5 business days to most industrial destinations worldwide. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for every shipment to ensure smooth customs clearance. For buyers in the EU, we can provide EUR.1 movement certificates where applicable.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a replacement-first policy: a replacement unit is dispatched before the defective unit is returned, minimizing production downtime for the buyer.
