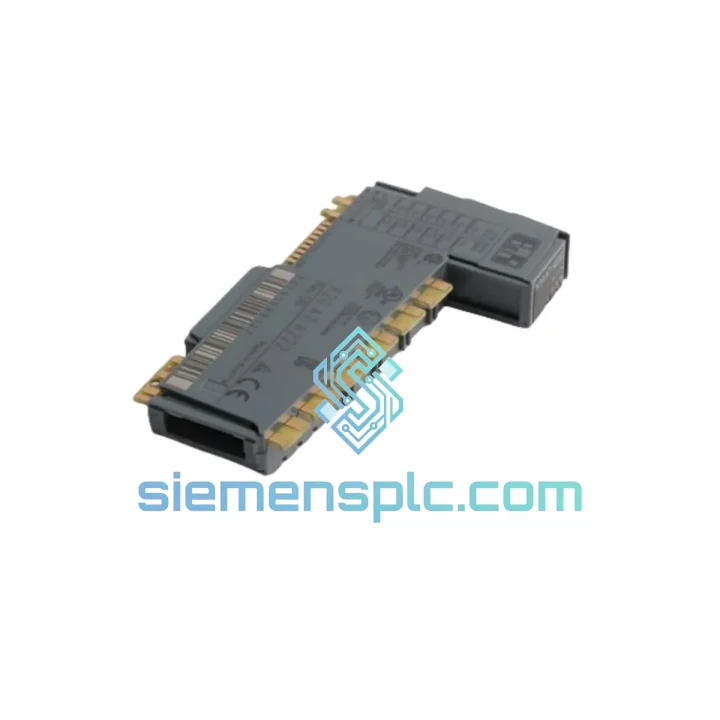

B&R X20 AT 4222 Analog I/O Module

B&R X20 AT 4222 — Stop the Bleed: Every Minute of Downtime Has a Price Tag

Your line is down. The HMI is throwing analog channel faults. Maintenance has already swapped the field wiring twice and the signal is still dead. You’ve narrowed it to the X20 AT 4222 — and now you need one, fast. We stock it in Xiamen. DHL Express to your door in 3–5 business days, anywhere on the planet. While your competitors wait 6–8 weeks on OEM lead times, your line is back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on B&R X20 systems, these are the failure patterns and swap pitfalls that actually matter:

Common Fault Signatures for a Failing X20 AT 4222:

• Automation Studio I/O Mapping shows channel status “Not Connected” or “Module Error” despite correct backplane seating — classic sign of internal ADC failure or corrupted module firmware.
• Analog input channels reading rail values (32767 or −32768 in raw counts) with no corresponding field signal change — indicates a blown input protection circuit, often caused by voltage spikes exceeding ±30 V on the signal lines.
• Output channels stuck at 0 V / 0 mA regardless of PLC setpoint — check the AO enable bit in the process image first; if that’s correct, the DAC output stage has likely failed.
• Intermittent channel dropouts correlating with cabinet temperature rise — thermal cycling stress on solder joints; reseat the module and check backplane connector pins for oxidation.
• Module LED flashing red/green alternately on power-up — firmware mismatch between the module and the X20 CPU’s Automation Studio project version. Do not ignore this.

Replacement Procedure — What to Check Before You Power Up the New Module:

• No DIP switches on X20 AT 4222 — module addressing is handled automatically via the X20 backplane slot position. Slot order in Automation Studio must match physical slot order exactly. If you’ve rearranged the rack, re-map your I/O in the project before downloading.
• Firmware compatibility: The X20 AT 4222 module firmware is managed by the X20 CPU during startup. If your CPU is running Automation Studio runtime version 4.x and the replacement module has a different hardware revision (check the label — HW Rev is printed on the module side), perform a firmware update via Automation Studio’s Online → Firmware Update function before going live.
• Signal range configuration: Input channel ranges (voltage vs. current) are set in software via Automation Studio I/O configuration — there are no hardware jumpers. After swapping the module, verify your channel configuration in the project matches your field wiring. A channel configured for ±10 V connected to a 4–20 mA transmitter will read garbage.
• Backplane power budget: Adding a replacement module to a rack that was already near its power budget can cause instability. Check the X20 PS power supply’s current output against the total rack load after the swap.
• Hot-swap procedure: X20 supports hot-swap, but only if the CPU is in RUN mode and the module slot is configured as hot-swap capable in Automation Studio. If in doubt, power down the segment before swapping — 30 seconds of downtime beats a corrupted process image.

Reliability in Harsh Conditions

The X20 AT 4222 is not a lab instrument — it’s built for the floor. B&R’s X20 platform is deployed in some of the most demanding industrial environments on the planet: automotive body shops with weld spatter and EMI, food processing lines with daily washdowns and humidity swings, offshore packaging systems running 24/7 in tropical heat.

The module’s conformal-coated PCB provides a baseline defense against condensation and airborne contaminants. The X20 backplane connector system uses a gold-plated, high-cycle-rated contact interface — not the cheap tin-plated connectors that oxidize and fail after 50 insertions. Vibration resistance meets IEC 61131-2 requirements, covering the frequency ranges typical of motor-driven machinery and conveyor systems.

Thermal management is passive — no fans, no moving parts. The module dissipates heat through its housing into the backplane structure. In cabinets without active cooling, ensure ambient temperature stays below 55 °C at the module face. We’ve seen X20 AT 4222 units pulled from systems after 8+ years of continuous operation that still test within spec. That’s the build quality you’re getting.

Every unit we ship has been visually inspected under magnification for PCB damage, connector pin condition, and label integrity. Surplus units are function-tested on a live X20 rack before dispatch. We don’t ship blind.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-ship operation. Stock is physically on our shelf.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days via DHL Express
• Europe (Germany, Netherlands, Poland, UK): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express or FedEx
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via DHL Express
• Australia / New Zealand: 3–5 business days via DHL Express

All shipments include full tracking from pickup to delivery. We prepare commercial invoices, packing lists, and HS code documentation for customs clearance. For customers in countries with import restrictions on industrial electronics, we can advise on documentation requirements — contact us before ordering if you have specific customs concerns.

Emergency same-day dispatch is available for orders confirmed and paid before 14:00 CST. If your line is down and every hour counts, tell us when you contact us — we’ll prioritize your shipment in the pick queue.
